GORBEL Destuff-it DTU2 - Control Panel; Drive Panel; Remote Panel

21
860-7100-19 DTU Operation Manual

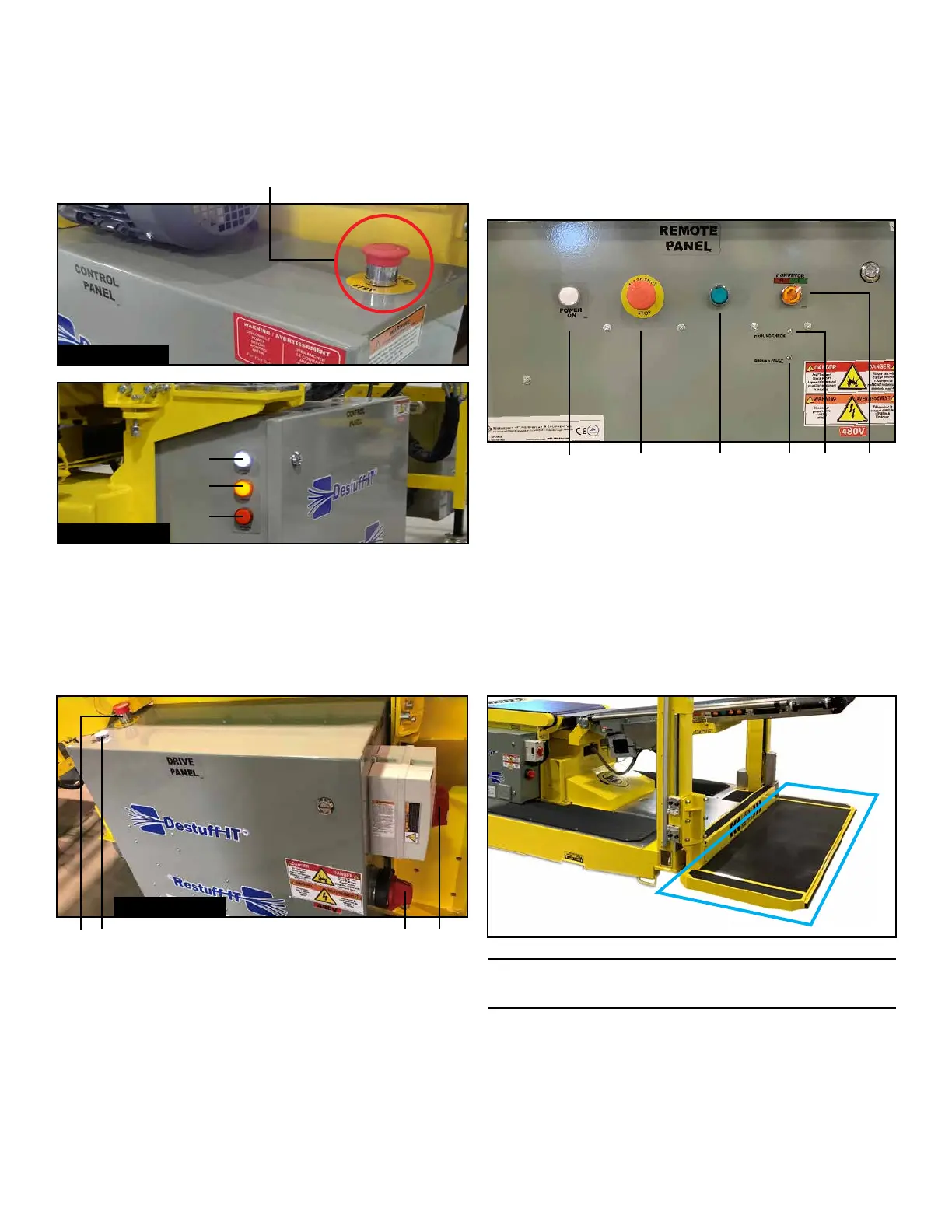

CONTROL PANEL REMOTE PANEL
OPERATOR PLATFORM
Operator platform is equipped with following features:
• Pressure Sensing Safety Mat
• Sensing Edge (when equipped)
• Area Scanner (when equipped)
• Maximum Operator Platform height: 66.04 cm (26”)
A
B
C
D
E-Stop Button
Power ON Light
Fault Light
Remote Stop Light
A B C D
A
A
B
C
D
E-Stop Button
AC Power ON Light
DC Disconnect on Machine
AC Disconnect on Machine
DRIVE PANEL
B
C
D
A
B
C
D
E
F
White Power ON Light
E-Stop Button
Green START Button
Ground Fault Red LED Indicator
Ground Check Green LED Indicator
Conveyor Start/Stop Selector Switch (if equipped)
A B C D E F
NOTE: Operator controls become active when mat senses
operator’s weight.
Control Panel
Drive Panel
Control Panel
