860-7100-19 DTU Operation Manual

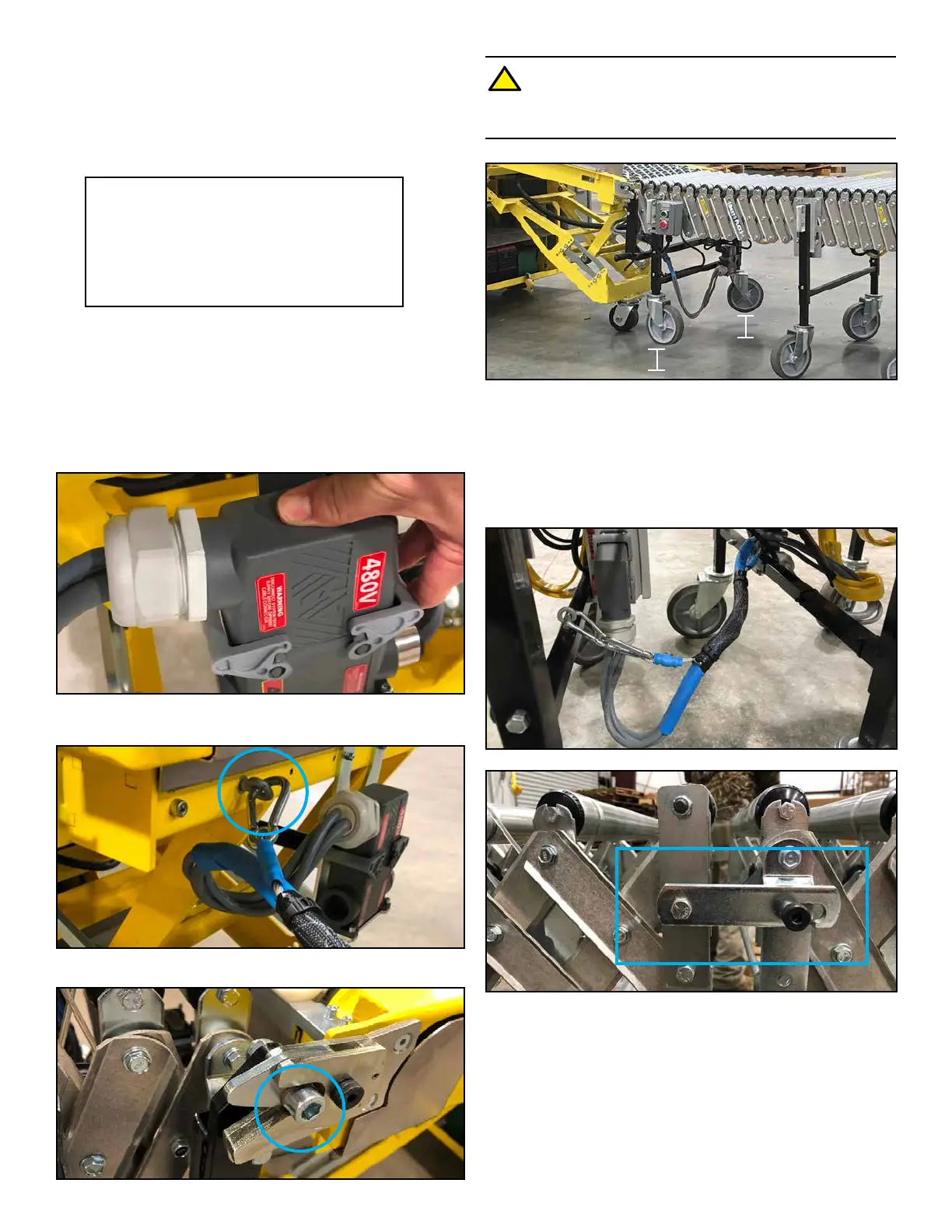

STARTING THE MACHINE
IMPORTANT: Only persons who are appropriately trained and
qualied with the safe operation and service of this machine
should be allowed to carry out operation, installation, service or
maintenance.
CONNECT DESTUFF-IT
TM
TO FLEX CONVEYOR 1
ALWAYS ensure power is OFF using AC Selector on left mast
prior to connecting unit.
1. Bring ex conveyor into position to unit.
2. Connect plug to receptacle.
3. Connect carabiner end of strain relief to eye bolt.
4. Lift and push ex conveyor into latching brackets.
Ensure front conveyor legs are raised 3 inches o the
ground. If this step is not followed, damage will occur
to the ex conveyor. It is recommended that two people
connect conveyor to machine.
CONNECT CONVEYORS 1 AND 2
1. Bring both ex conveyors into position.
2. Connect cable to receptacle.
3. Connect strain relief cable.
4. Engage two hook plates.
3” clearance
Follow this sequence to start up machine:
1. Connect Destu-it
to Flex Conveyor 1
2. Connect Flex Conveyor 1 and 2
3. Connect Conveyor to Remote Panel
4. Connect Power to Remote Panel
