860-7100-19 DTU Operation Manual
FAULT CODES
Three lights of selector switches (B, D, E) ash and beep to
announce a fault. Codes are as follows:
One Flash/Beep
Sensor fault
Objects putting pressure on the mats
Remote sensor
Remote panel conveyor selector set to STOP
Two Flashes/Beeps
Overload fault. Each belt conveyor and hydraulic pump
have overload devices located in Drive Panel. Overloads
are factory set to automatically reset after cooling.
Three Flashes/Beeps
Variable Frequency Drive (VFD) fault. Belts will not run.
Conveyor motors are powered from a VFD in Drive
Panel.
Continuous Flashing/Beeping
Travel sensing strip fault. Travel backwards to clear fault.
LIGHTING

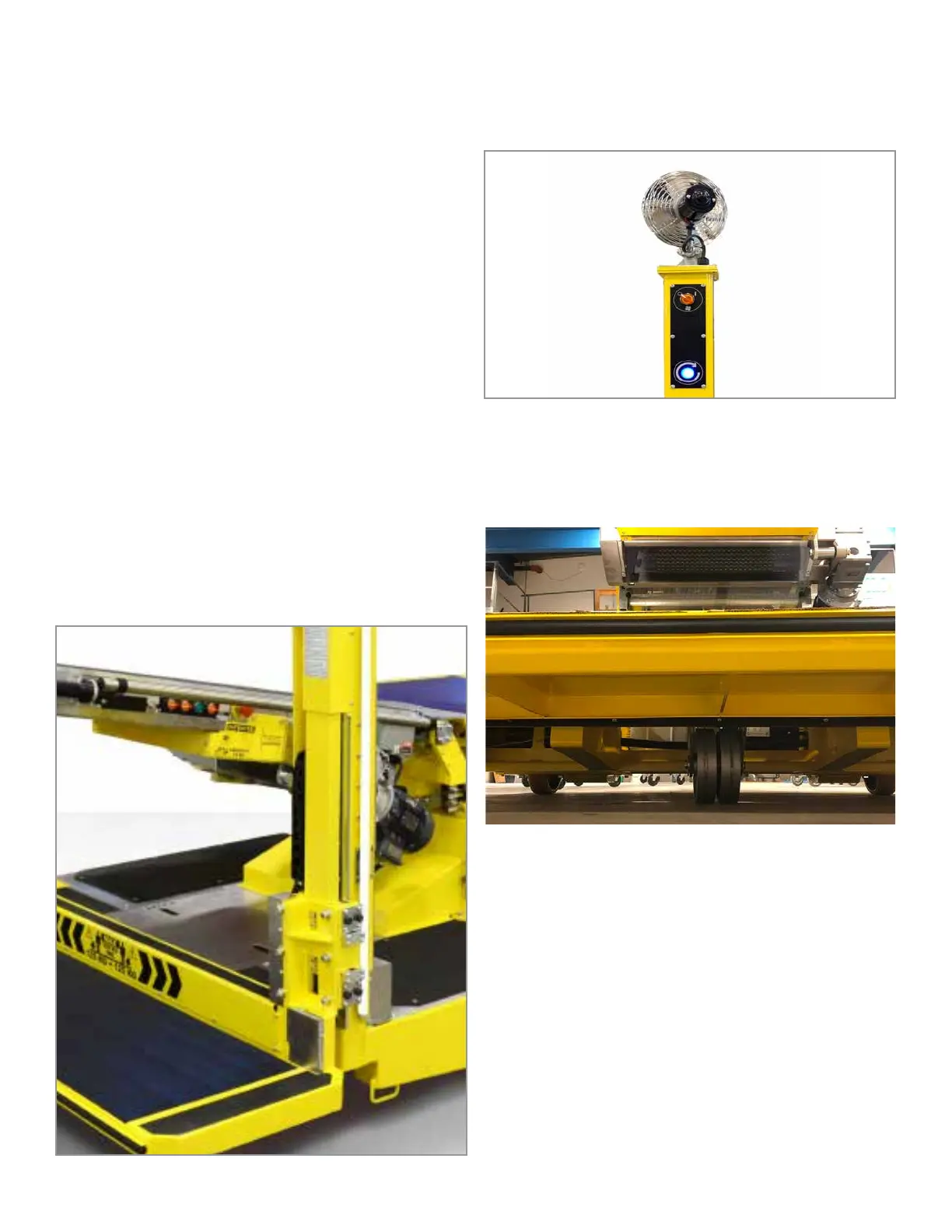

Machine is equipped with an LED strip located on each side
of both masts. Once the machine is started, the lights turn on
automatically. The lights will remain on for one minute after the
machine is turned o.
FAN
Unit has a fan located at top of right mast and can be used to
direct air ow. Switch is located just below the fan.
PIVOTING CASTOR AND DRIVE WHEELS
Each unit is equipped with one steel dual swivel caster and two
urethane drive wheels.
