860-7100-19 DTU Operation Manual
START-UP SEQUENCE
1. Turn facility fused disconnect to ON position.
2. Verify all 5 E-Stops are released (by rotating clockwise).
3. Verify AC and DC Disconnects at Drive Panel are in the ON
position.
4. Turn AC Selector at left mast to the ON position.
NOTE: The white power light on the Remote Panel will turn on if
power is present. If cable connections are correct and AC Selector
Switch at left mast is turned on, the green LED/Ground Check
Indicator illuminates. If the red LED/Ground Fault Indicator
illuminates, there is a Ground Fault which must be corrected
before proceeding. Contact Maintenance. The green LED/
Ground Check Indicator must be illuminated or the system
will not run.
5. Press the green START button on the remote panel. The
START button will remain illuminated.
LIGHTS LEGEND
WHITE: 3 phase power present at Remote Panel.
GREEN LED: Ground Check. Cables connected and ground
conductor in place.
RED LED: Ground Fault present. System will not start.
A B C
D
E
A
B
C
D
E
F
G
Power ON light
E-Stop Button
System Start Button
Ground Fault Indicator LED (red)
Ground Check Indicator LED (green)
Conveyor Start/Stop Selector Switch (if equipped)
Meltric Connector (Remote Panel - Anchored)
6. Stand on operator platform.
7. Press green START button on pivoting conveyor. Button will
illuminate green when started. Wait 20 seconds for PLC to
start.
8. Use Operator controls mounted on either side of pivoting
conveyor.
9. Prior to starting the belts, the sensing mats need to be reset.
Turn Belt Motion selector switch towards the back; hold for two
seconds; the blue light on right mast will turn o if the mats
have been properly reset.
10. Rotate the Belt Motion Control towards the front to start belts
and connected conveyors.

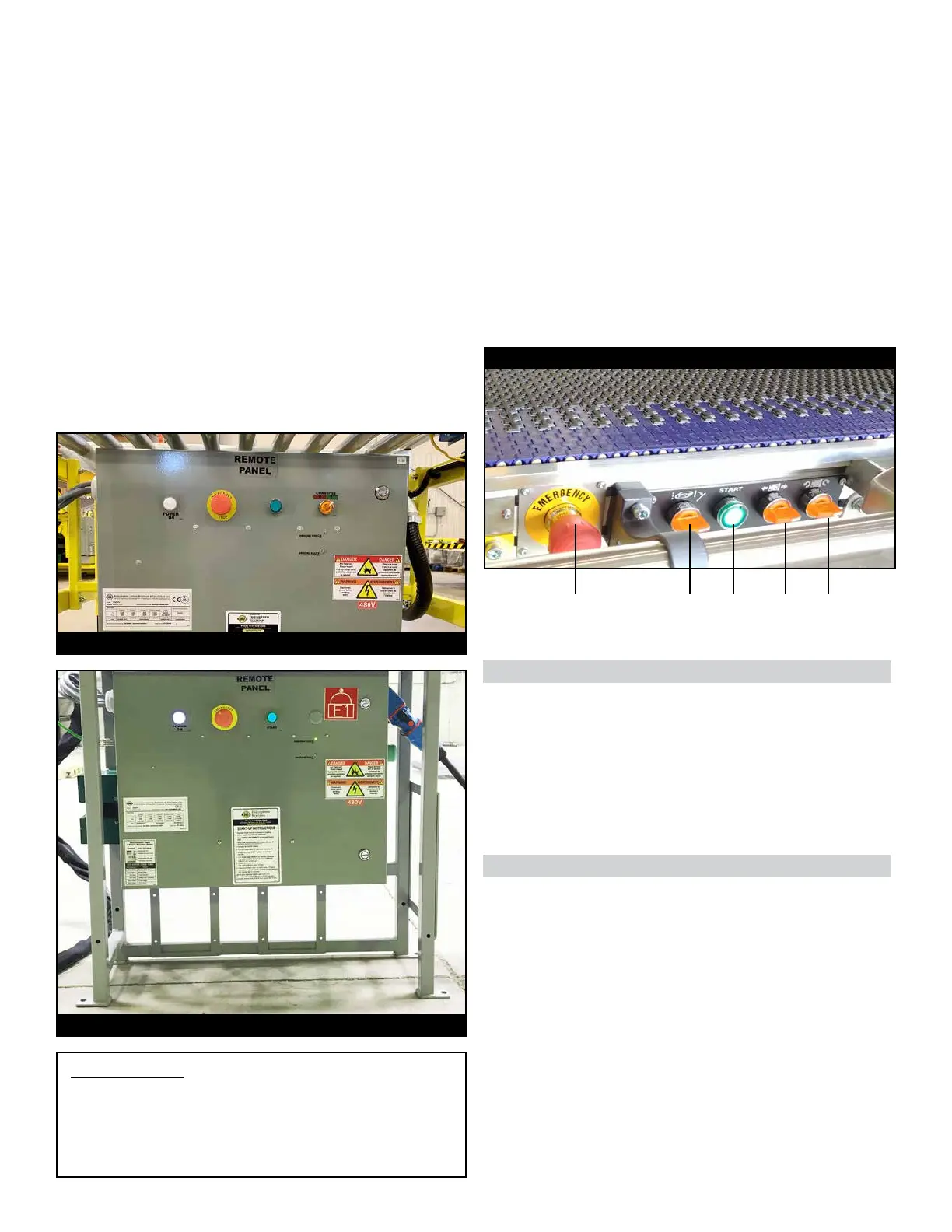

Remote Panel (Mobile)
H I J K L
Operator Controls (on Pivoting Conveyor)
Remote Panel (Anchored or Mobile)
Operator Controls (on Pivoting Conveyor)
Remote Panel (Anchored)
A B
C
D
E
G
F
H
I
J
K
L
Emergency Stop (E-Stop)
Belt Motion Control
START Button
Machine Travel Switch (Forward/Reverse)
Machine Zero-Turn Radius Switch
