DRIVING INSTRUCTIONS
ALWAYS ensure clearance of obstructions before driving unit
toward dock.
ALWAYS drive the machine with the operator platform raised
approximately 8 inches from the ground.
Operator platform must be raised above dock leveler when
advancing toward it to prevent a collision. Operator platform may
be gradually lowered as front wheel of machine starts to advance
up the dock leveler.
ALWAYS maintain a proper distance from walls, dock edges and
sides of container.
NEVER drive the machine with the operator platform in the fully
raised position.
DO NOT OVER-EXTEND OR OVER-CONTRACT FLEX
CONVEYOR WHEN TRAVELLING.
WHEN CONNECTED TO FLEX CONVEYORS, ALWAYS
ENSURE FRONT LEGS OF CONVEYOR ARE RAISED 3
INCHES FROM FLOOR. IF THIS STEP IS NOT FOLLOWED,
DAMAGE WILL OCCUR TO THE FLEX CONVEYOR.
SHUT DOWN INSTRUCTIONS
Turn belts OFF. Turn AC Selector on left mast OFF.
To RESTART, turn AC selector switch on left mast ON. Press
green Start button on remote panel. Button illuminates green
when started. If button does not stay green, check E-Stops are
released (rotate clockwise to release). Phase monitor device must
also be clear of faults for system to start. Fault codes are listed on
panel label.
Press START button on pivoting conveyor. Button illuminates
green when started. Program Logic Control (PLC) will take several
seconds to boot.
CLEANING INSTRUCTIONS
Frame: Damp cloths may be used to clean unit. Do not use abra-
sive or strong cleaning materials such as steel wool or scouring
powder as they will damage painted surfaces. Touch up any chips
or scratches in paint. To remove heavy dirt or grease, use non-
abrasive, non-acidic cleaners.
Belts: Damp cloth can be used to clean belts. Ensure belts are
regularly cleaned to ensure maximum grip on inclined transfer.
Debris must not be allowed to accumulate in conveyor belts and/
or rollers. DO NOT REMOVE GUARDS OR ACCESS PANELS
UNLESS SYSTEM IS LOCKED OUT. NEVER ATTEMPT TO
CLEAN RUNNING BELTS!

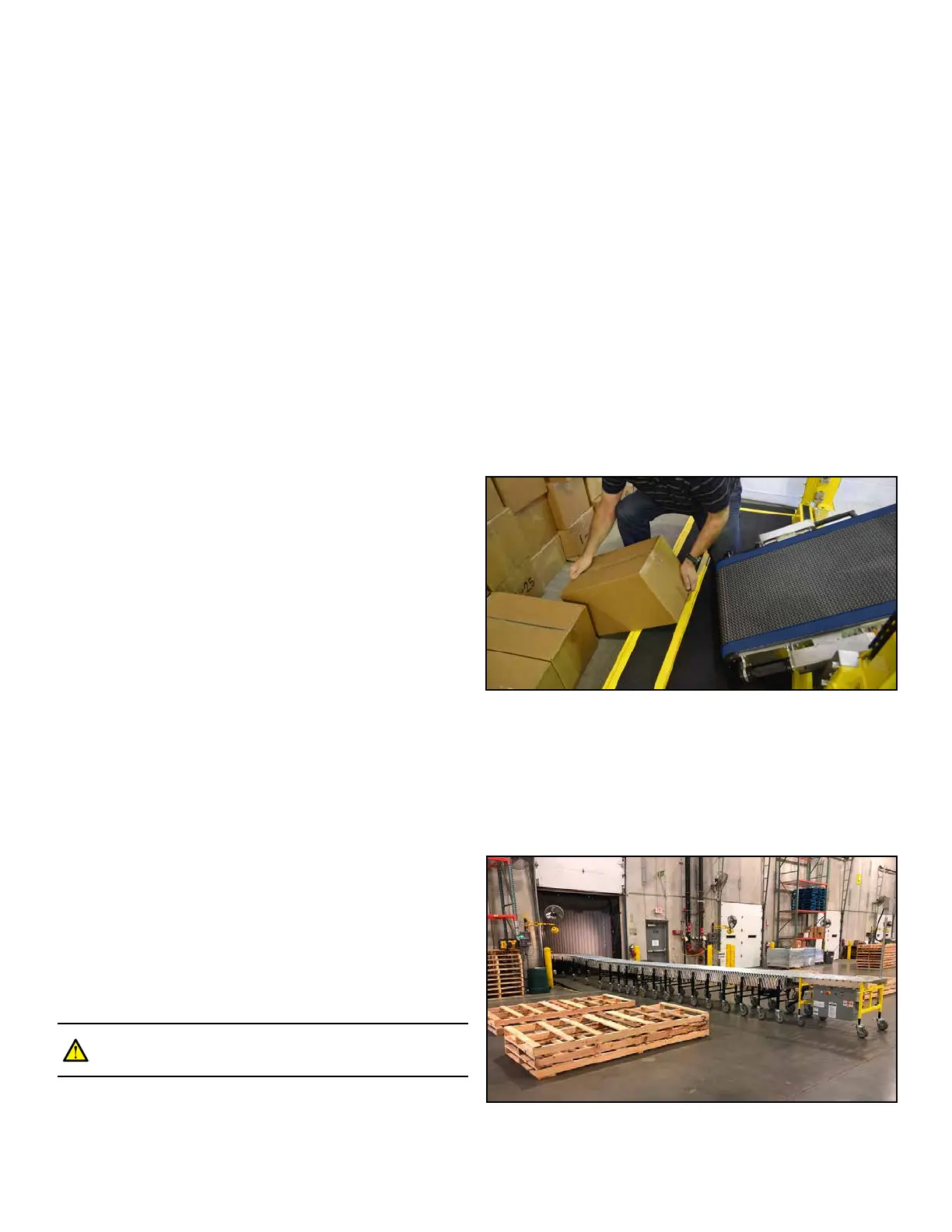

DESTUFFING: UNLOADING CONTAINER
• Remember to use proper technique when loading product on
machine.
• Always position the machine close to the box wall.
• Place the pivoting conveyor in front of the box to be
transferred.
• When possible, position the conveyor below the box that is to
be transferred onto the pivoting conveyor.
• Try to slide boxes onto the conveyor. Do not lift if possible.
TOP OF THE BOX WALL
• Pivot your body using your feet.
• Maintain the natural curve in your back.
• DO NOT over reach.
BOTTOM OF THE BOX WALL
• Use your leg muscles.
• Pivot your body using your feet.
• Keep the product close to your body.
• Maintain the natural curve in your back.
• Slide or tip product onto pivoting conveyor.
DESTUFFING: DOCK FLOOR
• Plan workow to eliminate unnecessary wait times. Organize
dock oor.
• Position pallet loads at a height which allows workers to stack
product with ease.
DANGER: Machine must be locked out before
cleaning. See Lockout/Tagout Procedures.
