REMOVING AND REPLACING THE OVEN DOOR WITH A
SINGLE-AXIS HINGE (depending on the model)
a) Conventional closing
b) GentleClose – the system absorbs the shock from door
closing. It allows simple, quiet, and smooth closing. A gentle
push (to a 15° angle relative to the closed door position) is
enough for the door to close automatically and softly.
If the force applied to close the door is too strong, the
effect of the GentleClose system is reduced or the
system will be bypassed for safety.
• Fully open the oven door and rotate the stoppers all the way
back – applies to conventional door closing (Figure 1).
• With GentleClose door system, rotate the stoppers back by
90°(Figure 2).
• Slowly close the door until the clips are pressed against the
supports / seats. At approximately 15° (relative to the closed
door position), pull the door slightly upward and pull them out
of the both hinge supports on the appliances (Figure 3).
• Replace the door in the reverse order. Insert the door under
an angle of 15° into the hinge supports at the front side of the
appliance and push them downwards and to the front until they
slide into their supports / seats.
• Then, completely open the door and rotate the attachment
clips back to their initial position. Slowly close the door and
check, if they close properly. If the door does not open or close
correctly, make sure whether the hinge notches are correctly
placed in their seat hinges.

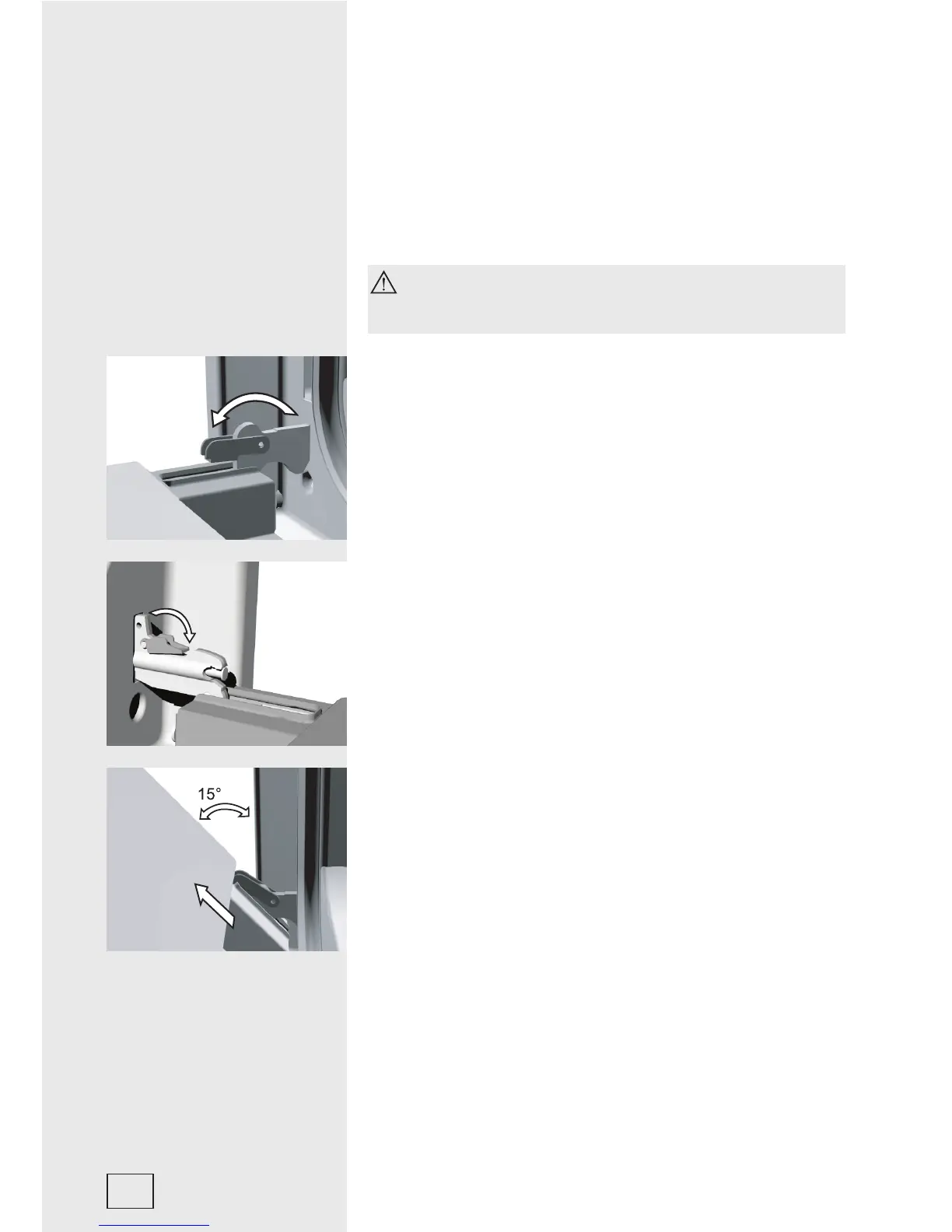

fi gure 1
fi gure 2
fi gure 3
