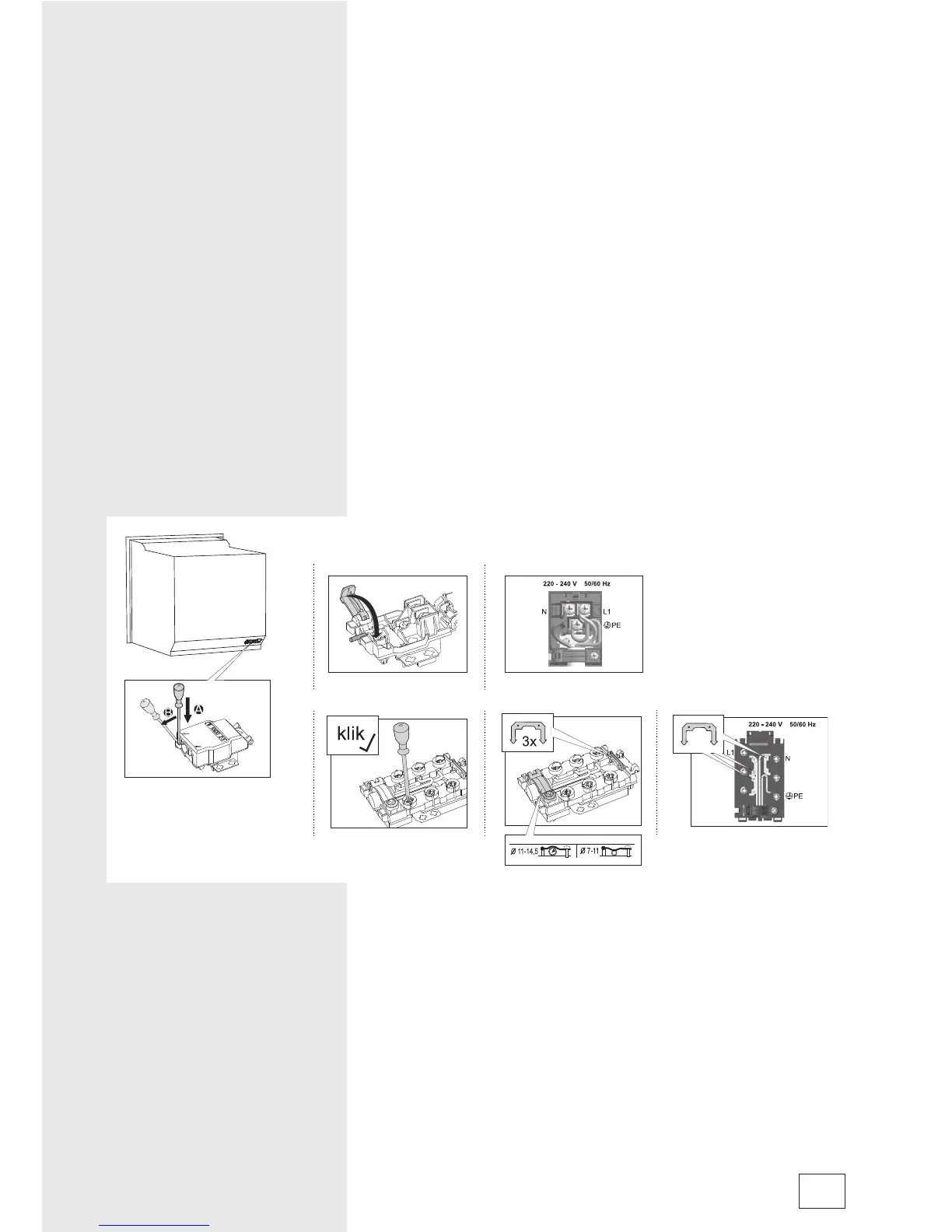

Procedure (depanding on the model)
• Use a screwdriver to open the cover of the connection
terminal on the back of the appliance. Release the two clips as
indicated on the cover of the connection terminal.
• The mains cord must be inserted into the strain release device
which protects the cable from being pulled out. If the strain
release device is not installed yet, install it in such way that it
gets stuck in the connection terminal housing at one end.
• Then, connect the appliance according to the instructions
indicated on the fi gures. If network voltage is different, the
connection bridges should be replaced.
• Firmly fasten the strain release device and close the cover.
Lead colors
L1 = external leads under voltage. Normally, the lead colors are
black, black, brown.
N = neutral lead, normally blue.
Make sure the N-lead is connected correctly!
PE = protection, or earth (ground) lead, normally green-yellow.
43
