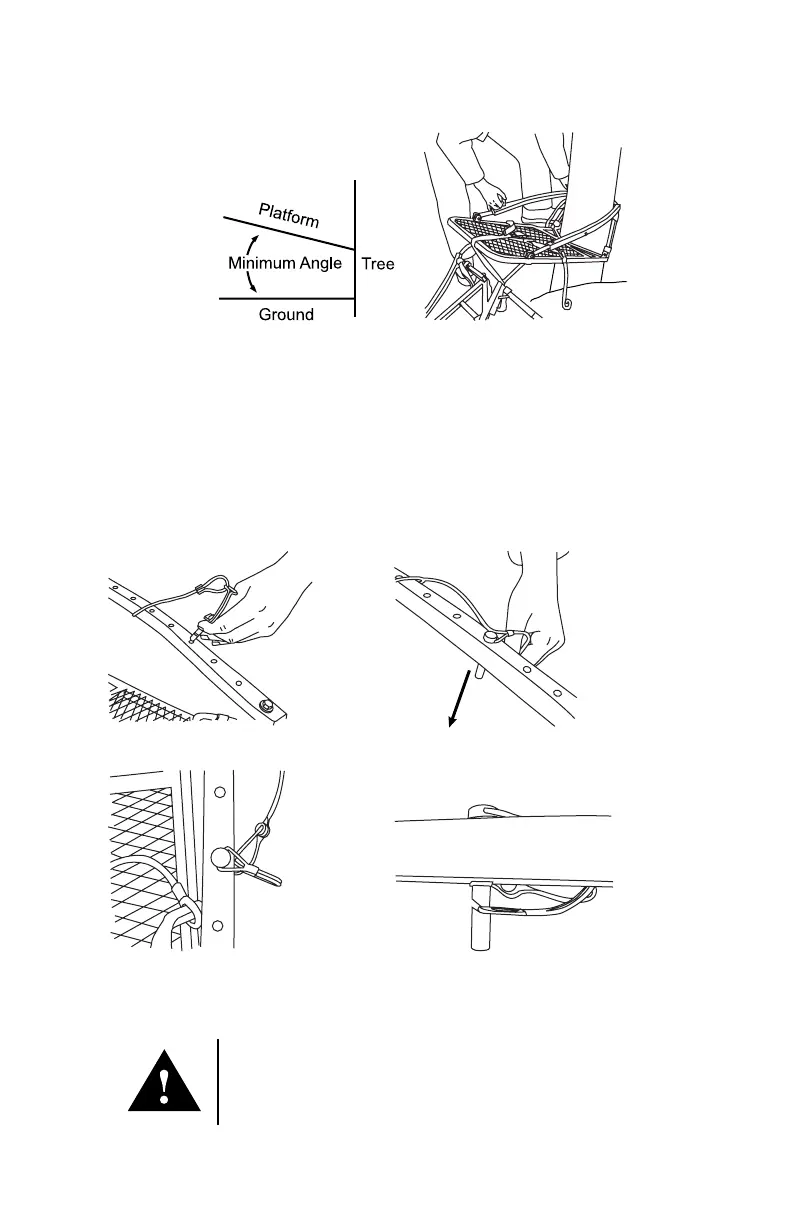

Position the platform as shown in FIGURE 13 so that the front of the
platform is slightly higher than the teeth contacting the tree.
If you can not achieve the angle shown in FIGURE 13, return to step 4.1
and adjust the pin on the rst adjustment arm to increase or decrease
the tree cable length for tree size.
Line up the hole in the cable end with the hole in the adjustment arm
and insert the D-ring snap pin through the hole on the top of the
adjustment arm and through the hole in the cable end (FIGURE 14 and
FIGURE 15). The spring portion of the pin must face the outside of the
climbing treestand (FIGURE 16).
Close the D-ring snap pin so the spring portion of the pin is locked into
the groove on the pin (FIGURE 17).
FALL HAZARD
CHECK THAT BOTH D-RING SNAP PINS ARE
PROPERLY INSTALLED AND SECURELY IN
THE GROOVE.
13
FIGURE 13
FIGURE 14
FIGURE 16
FIGURE 15
FIGURE 17
