Piston installation
Install the piston, piston pin and new piston pin
retainer.
Notice:
1. When installing the piston, the side
marked with " " should face the exhaust side of
the engine ;
2. The opening of the end clearance of the
piston pin retaining ring should face
downward;
3. If the piston pin retaining ring is seriously
deformed, it must be replaced with a new
retaining ring;
4. Do not let the piston pin retaining ring fall
into the crankcase .
Installation of the cylinder block
1. Install cylinder block positioning pins and new
cylinder block gaskets;
2. Apply a layer of oil evenly on the surface of the
cylinder block, piston and piston ring ;
3. First stagger the openings between the piston
rings by 120°, and then gently assemble the cylinder
block in place ;
4. Assemble the chain guide plate in place.
NOTE: When installing the cylinder block,
avoid damaging the piston rings.

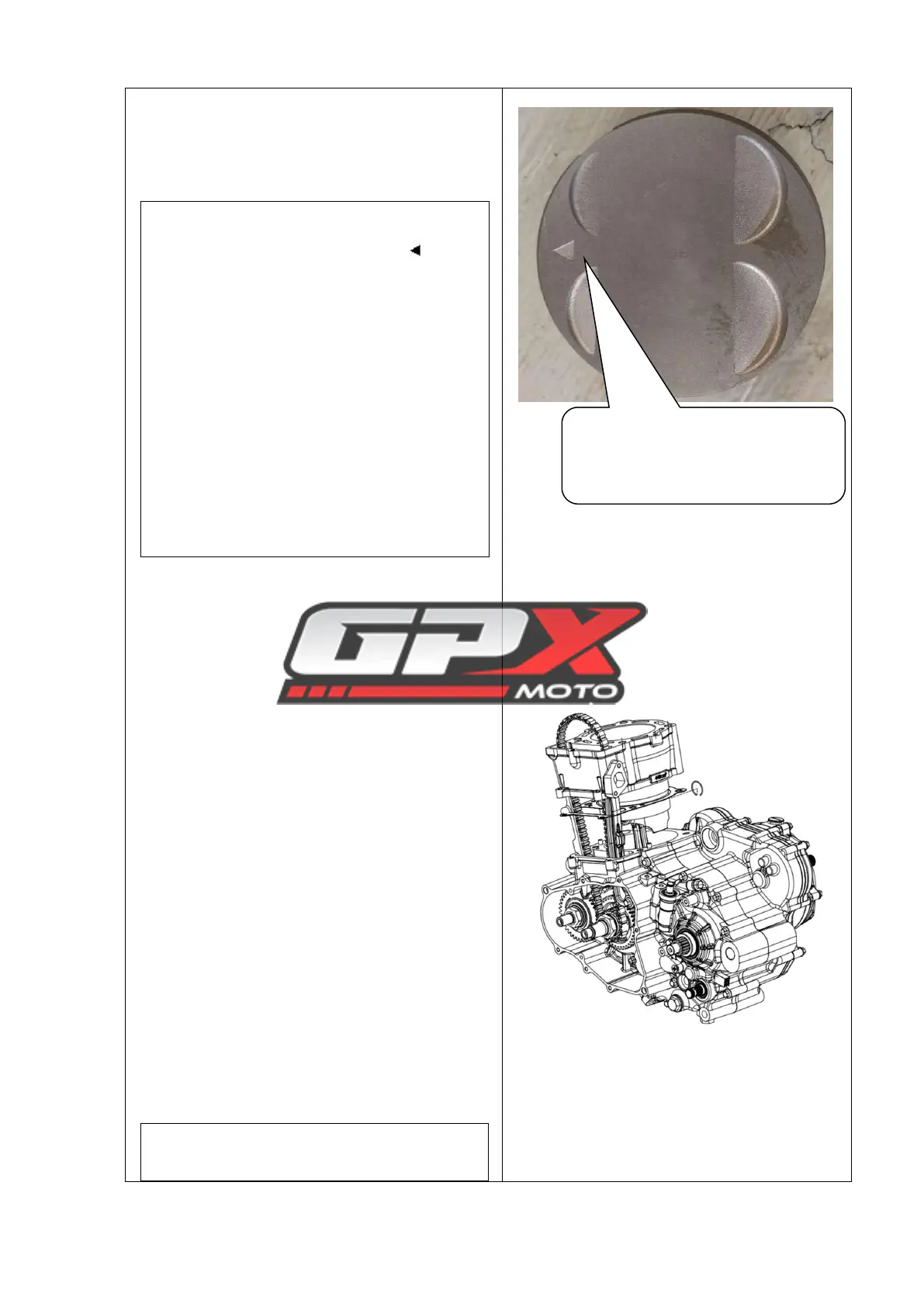

When assembling the piston, the side
marked with "" should face the
exhaust side of the engine
