corresponding oil pump hole on the right
body (the marked surface of the oil pump
rotor assembly should face the same
direction),

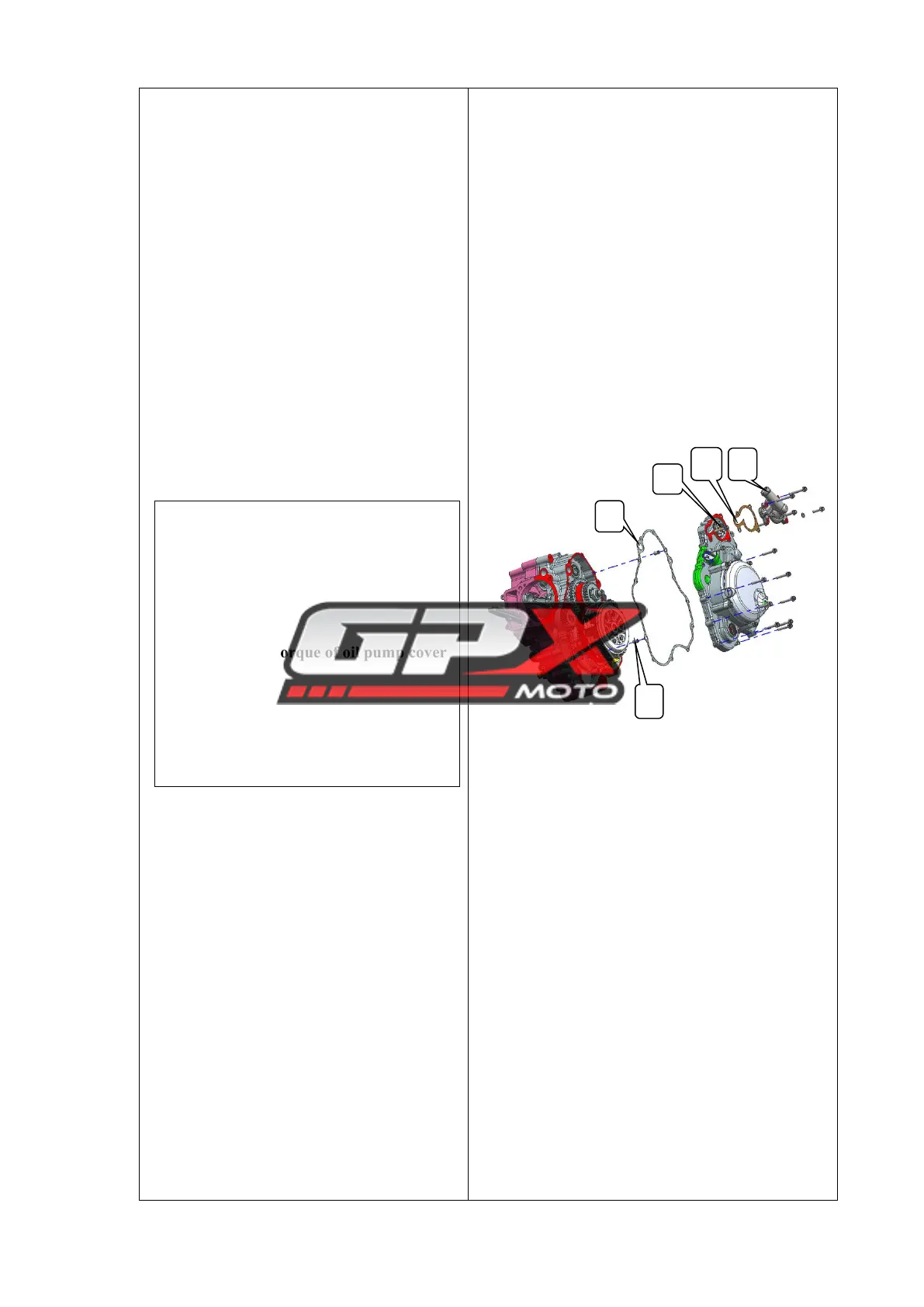

3. Install the oil pump cover plate
assembly (4) on the oil pump, and fasten
it with 3 M5×18 bolts (5).
4. Pass the oil pump pin (6) through
the oil pump shaft, then install the oil
pump gear assembly (7) on the oil pump
shaft, and finally install the retaining
ring (8) on the retaining ring groove of
the oil pump shaft.
Notice:
1. When installing the oil pump rotor,
the marked surfaces of the inner and
outer rotors should face the same
direction;
2. Tightening torque of oil pump cover
bolts: 7～9 Nm;
3. After the cover plate is assembled,
make sure that the oil pump shaft rotates
flexibly.
5. Install the oil pump bridge gear washer
(9) on the oil pump bridge gear shaft, install the
oil pump bridge gear (10) on the oil pump
bridge gear shaft, and then install the oil pump
bridge gear washer (11) Install the oil pump
bridge gear, and finally install the retaining ring
(8) on the retaining ring groove of the oil pump
bridge gear shaft.
Installation of starting gear and
overrunning clutch
1. Install the large starting gear washer
(12) on the right crank,
