Setup
3A5097C 11
Installation

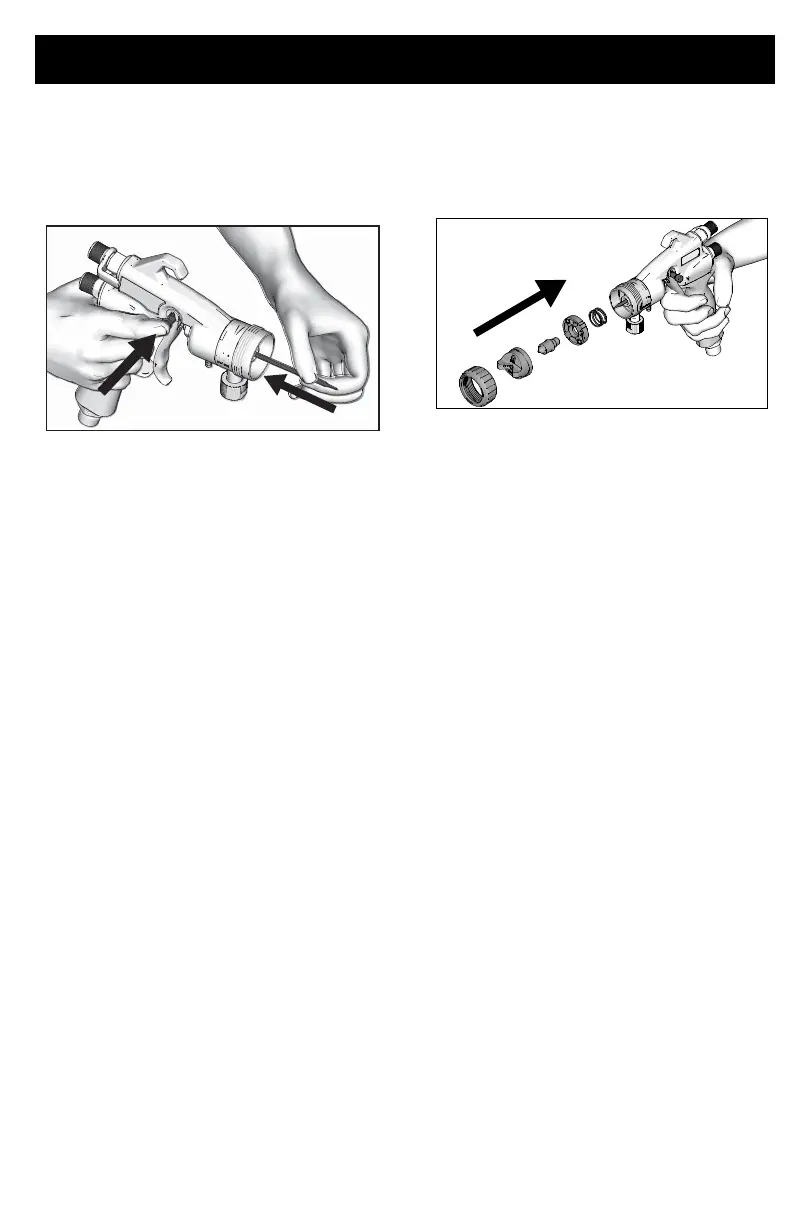

1. Insert needle and move trigger slide from
NEEDLE REMOVAL position (B) to
SPRAY position (A).
2. Trigger the gun and install air cap guide
with spring (Edge II Plus only), and fluid
nozzle.
3. Install air cap and retaining ring.
ti30939a
ti30940a
