308-685 13

Positioning

the Gun Arm Assembly

06943

PUMP

SIDE

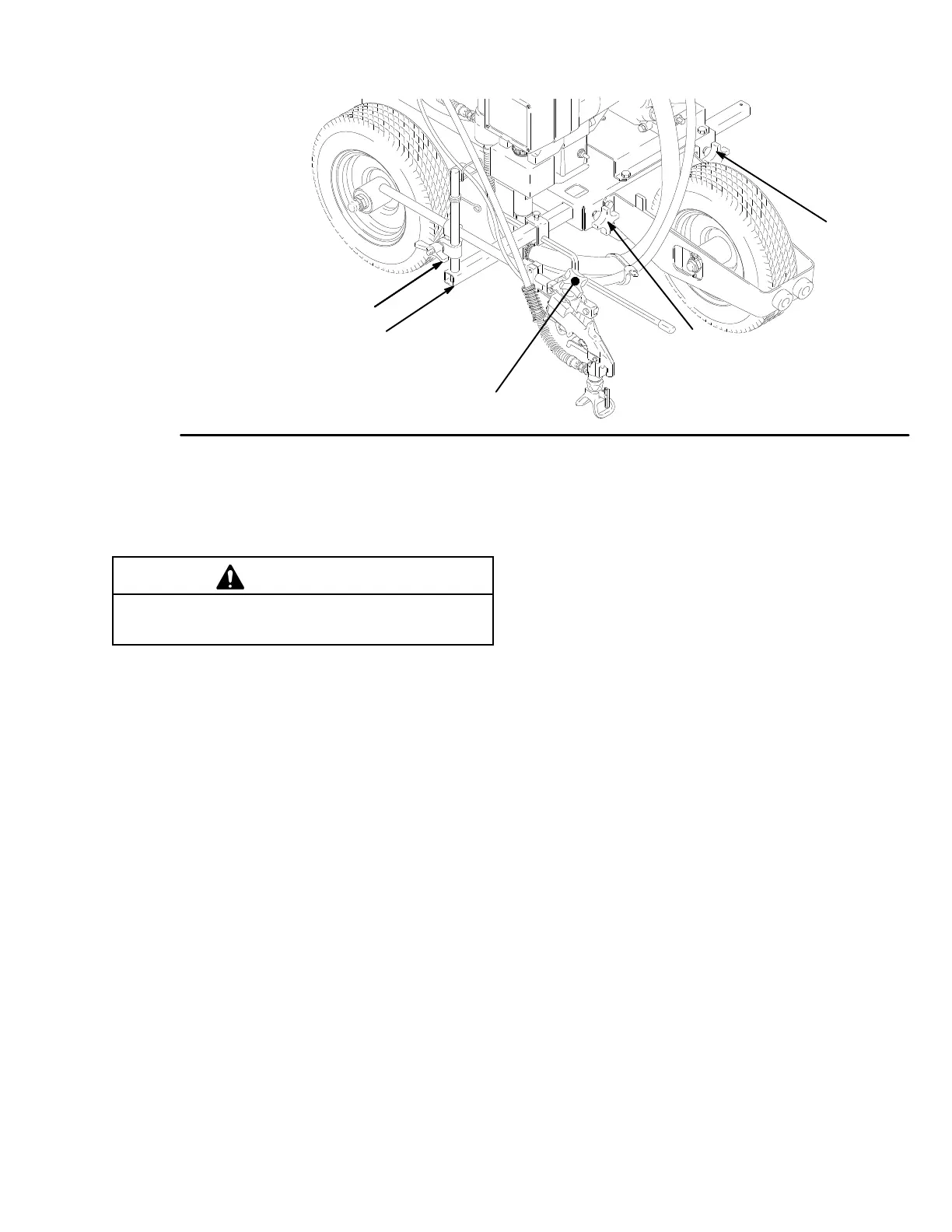

Fig. 4

ENGINE SIDE

The gun arm can be positioned for a variety of spraying

needs.

The drawings on page 14 show

the gun mounted

on the pump side of the Linestriper . However, the gun

may

be mounted on the engine side.

Whenever

ou Move the Gun

CAUTION

not kink the cable, which could prevent it from

properly triggering and untriggering the gun.

Disengage

the trigger cable and engage the gun trigger

safety latch first. Do not kink the trigger cables. Pull out

of the 25 (7.5 m) ft. hose, if necessary

After

moving the gun, reposition the

spray tip guard so it

parallel to the ground and its “wings” face the front

and

back of the unit. Disengage the gun trigger safety latch

and

engage the trigger cable.

Vertical Position of the Gun

Loosen

the arm clamp (6) and move the gun

up or down.

Tighten

the clamp. Engage the trigger cable.

Horizontal Position of the Gun

Loosen the knobs and slide the gun support bracket (4)

or out, so the gun will be outside the tire path. T

ighten

the

knobs.

Mount Gun on the Engine Side of the Cart

1. Disengage

the trigger cable and engage the gun trig

ger

safety latch.

2. Loosen the gun holder knob (93) and remove the

gun.

Lay the gun out of the way

3. Loosen the knobs (61) and slide the gun support

bracket (4) out.

4. Slide

the gun support bracket (4) in from the

engine

side and tighten knobs (61, making sure not to kink

the

cable or hose.

5. Loosen

the arm support clamp

(6) and slide the gun

forward.

Retighten the clamp.

6. Install

the gun. Route the hose and cable to prevent

kinking.

Position the

spray tip guard. Disengage the

gun

trigger safety latch. Engage the trigger cable.

Remount

Gun on the Pump Side of the Cart

1. Disengage the trigger cable and engage the trigger

safety

latch.
