Graco 231-560 - Gun Mounting Parts List and Drawing

308-68542

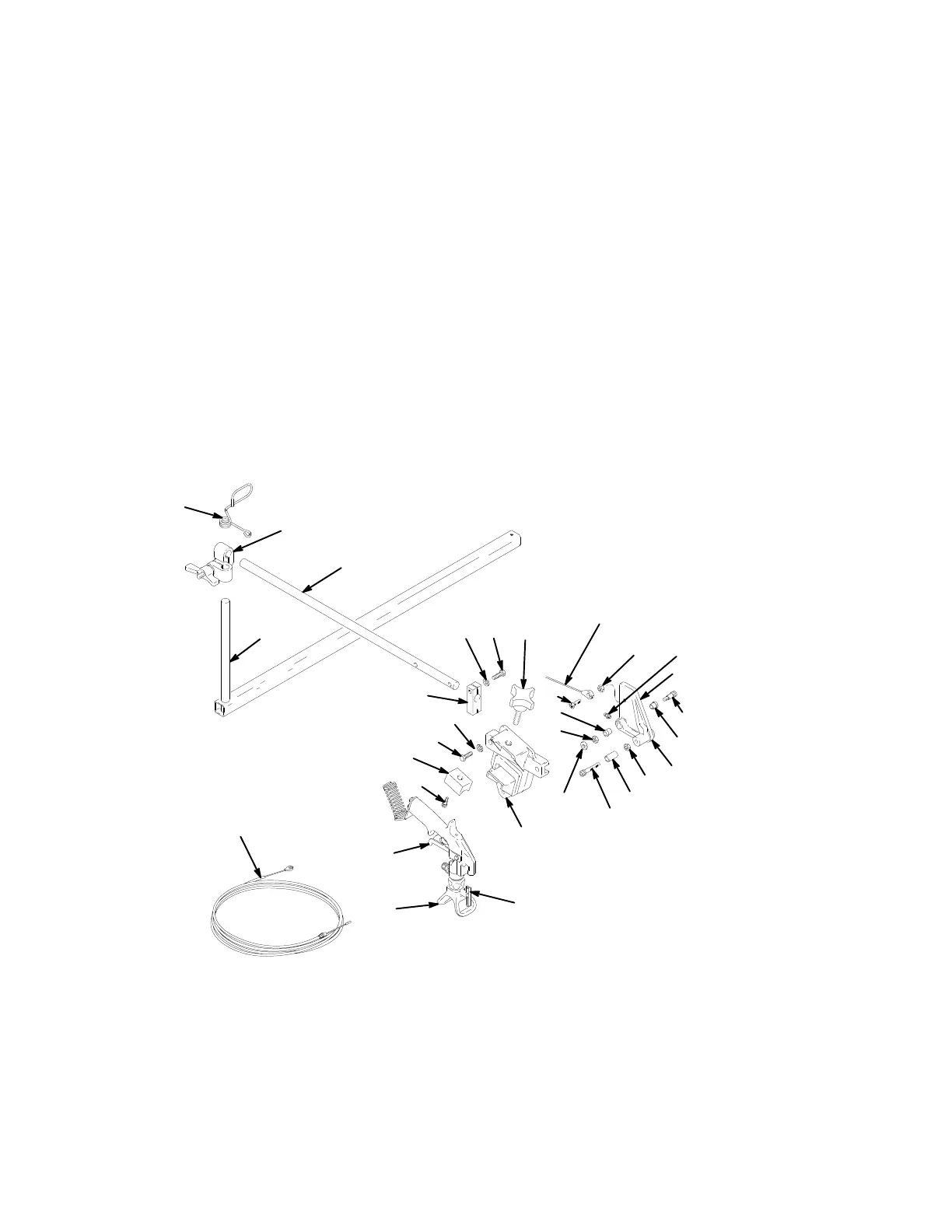

Gun Mounting Parts List and Drawing
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 111–721
CABLE, remote trigger 1
4 224–096 BRACKET
, gun support 1
6 114–029 CLAMP
, arm support 1
7 188–135 GUIDE, cable 1
32 100–846
FITTING, lubrication 1
33 111–016
BEARING, flanged 2
34 111–230 SCREW
, mach, flhd,
1/4–20 x 1 in. 1
35 100–015 NUT
, hex, 1/4–20 1
44 100–016 LOCKW
ASHER, 1/4 in. 2
45 181–734
ARM, support 1
47 100–101 CAPSCREW
, hex hd,
3/8–16 x 1 in. 1 or 2
48 186–699 BLOCK, mounting cable 1
49 100–021 CAPSCREW
, hex hd,
1/4–20 x 1 in. 2
93 181–818 KNOB 1
94 189–915
LEVER, actuator 1
95 188–452 HOLDER, gun 1
96 108–483 SCREW
, shoulder , sch,
1/4 x 3/8 in. 1
97 181–795 JAW
, clamp 1
98 235–457 FLEX GUN
See manual 308–235
for parts 1
99 101–345 NUT
, hex, jam, 1/4–20 2
100 108–535 BEARING, sleeve 1
101 107–445 CAPSCREW, sch,
1/4–20 x 1–
1
/
2
in. 1
103 111–045 SCREW
, shoulder , sch,
5/16 x 1 in. 1
113 LLT–217
LineLazer T ip, Sz 217 1
123 110–755 WASHER 1
132 100–133 LOCKW
ASHER, 3/8 in. 1
136 237–859 RAC IV DripLess
TIP GUARD 1
158 221–415 SwitchT
ip, Size 415 1
7
6
4
49
44
45
132
47
48
34
99
REF 1
98
97
96
95
93
103
100
99
101
94
33
33
35
32
113,158
136
123
06931
1
94
