Engine
NOTE:
The engine must be removed before the clamp
and clutch housing can be removed.
CAUTION
The sprayer will be out of balance when the engine,
clutch housing, drive housing and pinion housing are
removed. Support the rear of the cart to prevent the
partially disassembled sprayer from tipping back.
CAUTION
The engine for this sprayer is manufactured by
Honda to a special Graco specification. The sprayer
will experience poor clutch life, not work at all, or
burn up the clutch coil if a replacement engine is
purchased from another vendor
. Do not use an
alternate motor
.
1.
Remove the four mounting plate screws (44),
washers (45), and nuts (46).
2.
Place the engine and drive assembly on a work
bench.
3.
Disconnect the red wire from the engine lead at
the connector
. Disconnect the black and white
wires from the field at the connectors.
4.
Remove the screw (61), lockwasher (62) and
washer (60). Remove two screws (77) and nuts
(78).
5.
Remove the
Field and W
iring Harness, Clamp
and
Clutch Housing
, as instructed on page 31.
NOTE:
All service to the engine must be performed by
an authorized Honda dealer
.
06929

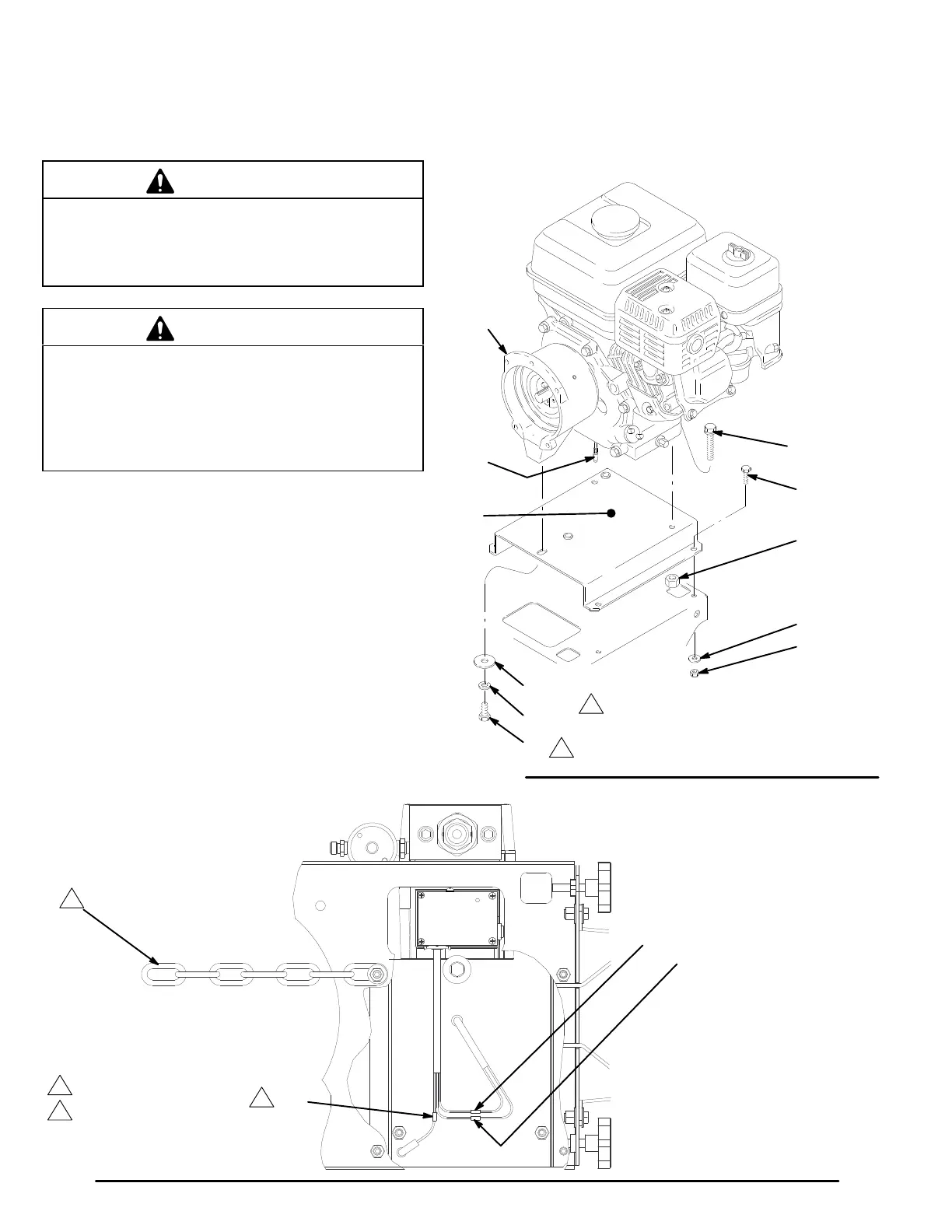

Fig. 18
1
78
77
D
A
60
62
61
Apply low strength thread locker
44
45
46
Fig. 19
WHITE
To
engine alternator
.
BLACK
Bottom
V
iew of Engine and Cart
RED
06930
Grounding
chain.
