Pressure
T
ransducer
WARNING
INJECTION
HAZARD
T
o reduce the risk of serious injury
,
whenever you are instructed to relieve
pressure, follow the
Pressure Relief
Procedure
on page 17.
NOTE:

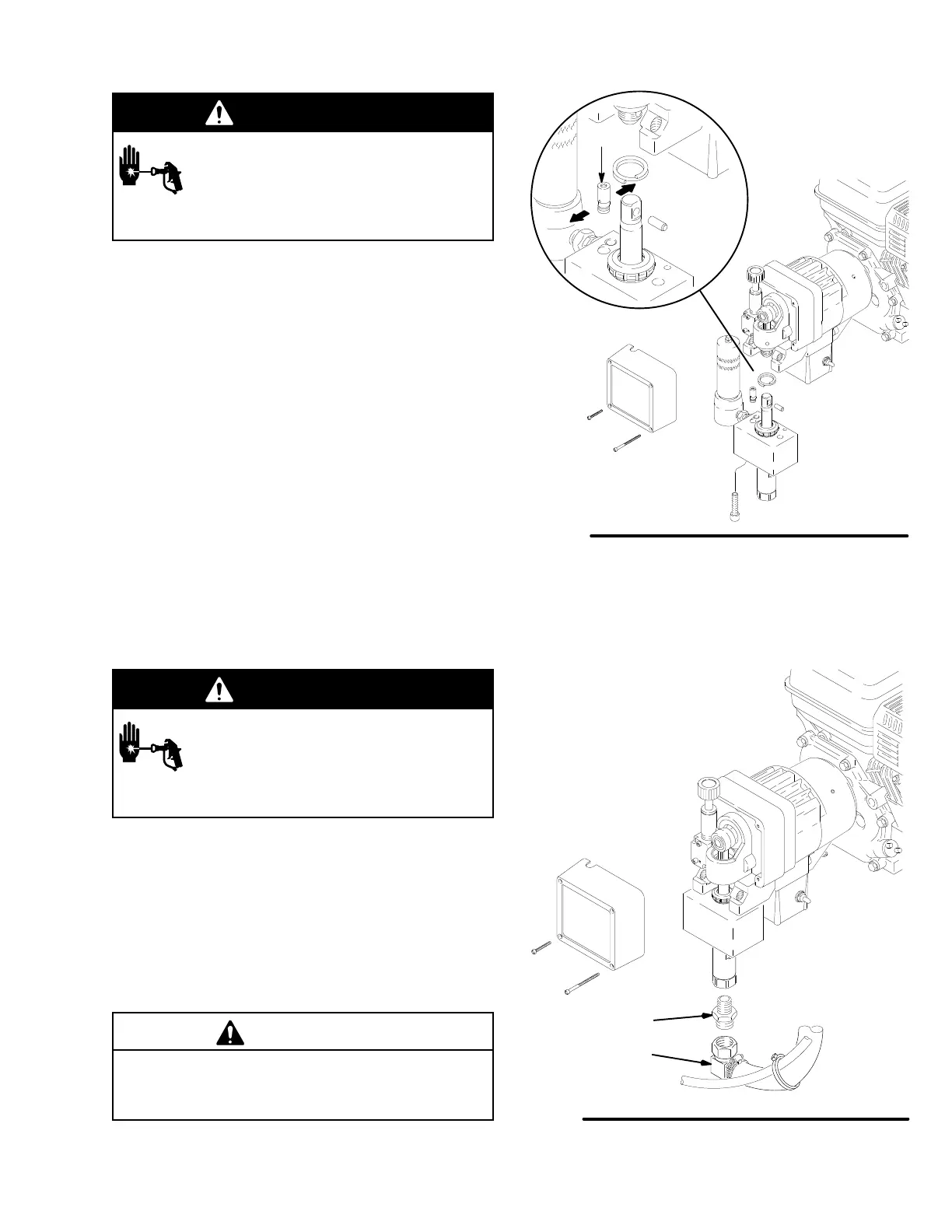

See Fig. 12 for this procedure.
1.
Remove the displacement pump. See page 35.
2.
Use a pull–twist motion to remove the transducer
(22) from the pump manifold.
3.
Clean paint residue from the hole in the manifold;
do not scratch the surface of the hole.
4.
Lightly apply oil to the o-ring of the new transducer
.
5.
Install the transducer in the pump manifold, while
guiding the o-ring and backup ring into place.
6.
Align the holes in the transducer as shown by the
arrows in Fig. 12.
7.
Install the displacement pump. See page 36.
06925
Fig. 12
22
Suction
T
ube
WARNING
INJECTION
HAZARD
T
o reduce the risk of serious injury
,
whenever you are instructed to relieve
pressure, follow the
Pressure Relief
Procedure
on page 17.
1.
Put a wrench on the fitting (32) and another of the
suction tube (40).
2.
Unscrew the suction tube (40) from the fitting.
CAUTION
Misaligning or cross-threading the suction tube to the
fitting may damage the threads and/or create shav
-
ings causing the fitting and/or suction tube to leak.
40
Fig. 13
32
06926
