308-685 15
How
T
o Mount the Gun

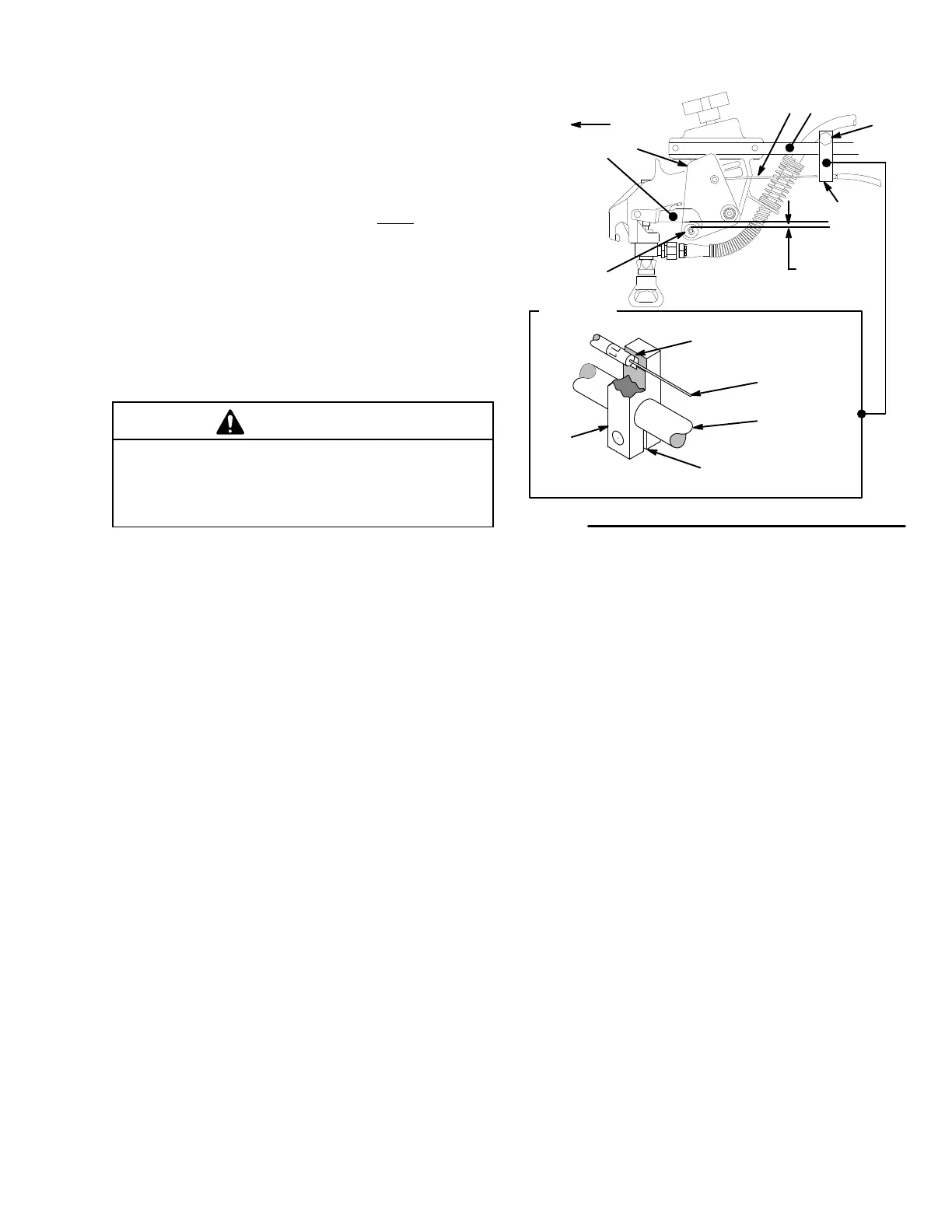

Trigger Cable Tension Adjustment See
Fig. 6
1.
Relieve pressure. See page 17.
2. Be
sure the gun is properly mounted in the holder as
instructed
on page 14.
3. Pull
the actuator lever (94) forward and hold it. Lift up
on
the gun trigger (A) until there is slight
resistance.
Visually
check to see if there is about 1/32
to 1/16 in.
gap
between the trigger lever (B) and where the gun
trigger
touches the bar
.
4. To adjust the tension, loosen the screw (C) in the
block (48). Slide the block forward to increase the
gap
and backward to decrease the gap. T
ighten the
screw.
5. Recheck
the gap and adjust as needed.
CAUTION
Do not allow the cable (1) to rub against the outside
edges of the slot (H) in the block (48), to prevent
premature wear of the cable. Rotate the block slight
-
ly to eliminate rubbing. See Fig. 6, DET
AIL A.
1
48
1/32
– 1/16 in.
(1–2 mm)
94
A
B
FORWARD
Be sure end jacket of cable
seats here. keep jacket and
seat clean
1
48
45
45
C
DETAIL
A
0024
Fig. 6
Shown
Inverted
H
