308-685 37

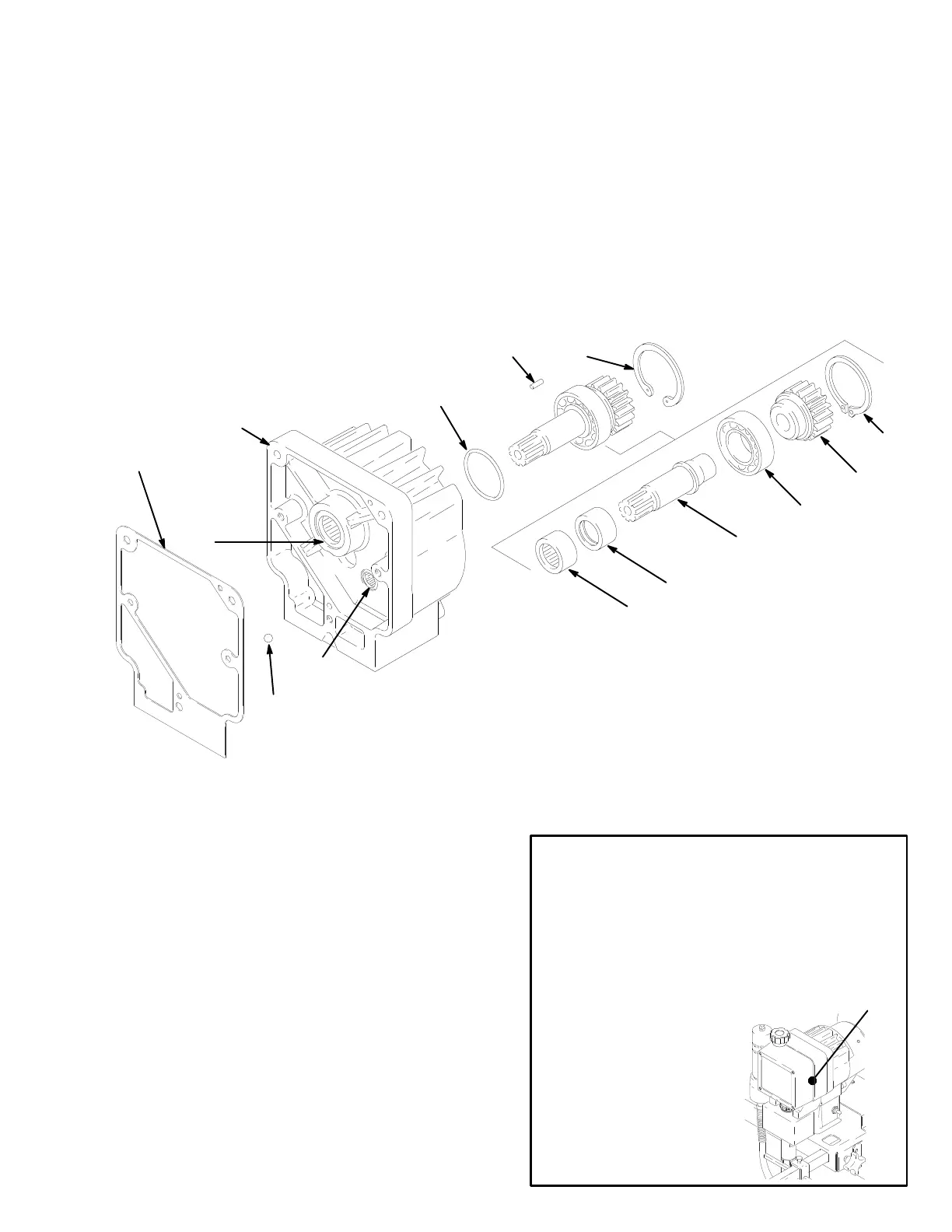

Pinion
Assembly Parts List and Drawing
Assembly 238–684
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
2a 191–208 .PINION HOUSING 1
2b 105–489 .PIN 2
2c 102–873 .BEARING 1
2d 100–069 .BALL 1
2e 107–394 .BEARING 1
2f** 185–916 .PINION SHAFT 1
2g** 109–002
.BALL BEARING, large
1
2h** 183–515
.HUB, armature
1
2j** 108–880 .RETAINING RING, small 1
2k 113–094 .RETAINING RING, large 1
2l** 191–258 .GASKET
, housing
1
2m** 110–607 .CLUTCH, roller 1
2n** 109–001
.BEARING, needle
1
2p** 165–295 .O-RING 1
**Included in Repair Kit No. 223–189.
06009
2k
2j**
2h**
2g**
2f**
2b
2a
2c
2m**
2n**
2l**
2d
2e
2p
Accessories
Displacement
Pump Repair Kit
235–703
Replacement parts for the repair of the displacement
pump.
French 187–784
Spanish 185–962
German 186–042
Greek 186–046
Korean 186–047
English 187–791
DANGER
LABELS
The English language DANGER label shown on
page
4 is on your sprayer
.
If you have painters who
do
not read English, order one of the following labels
to
apply to your sprayer
. The drawing below
shows
the
best placement of these labels for good
visibility
.
Order the labels directly from Graco, free of
charge. Toll Free: 1–800–328–0211
Apply
other
language here
06944
