Repair
20 3A0732U
NOTE: Air Valve Seal Kits are available. See page 39.
Parts are marked with an †.
Air Valve Repair Kits are available. See page 39. Parts
are marked with an ◆ .
Air Valve End Cap Kits are available. See page 39. Parts
are marked with an ✚ .
Disassemble the Air Valve
1. Perform steps 1-3 under Replace Complete Air
Valve, page 19.
2. See F
IG. 12. Use a 2 mm or 5/64 hex key to remove
two screws (309† ◆ ). Remove the valve plate
(305 ◆ ), cup (312 ◆ ), and spring (311 ◆ ).
3. See F
IG. 13. Remove the snap ring (310 ✚ ) from
each end. Use the piston to push the end caps
(307 ✚ ) out of the ends. Remove end cap o-rings
(306† ✚◆ ).
4. Remove the piston (302 ◆ ). Remove the u-cup seals
(308† ◆ ) from each end and the detent assembly
(303 ◆ ) and detent cam (304 ◆ ) from the center.

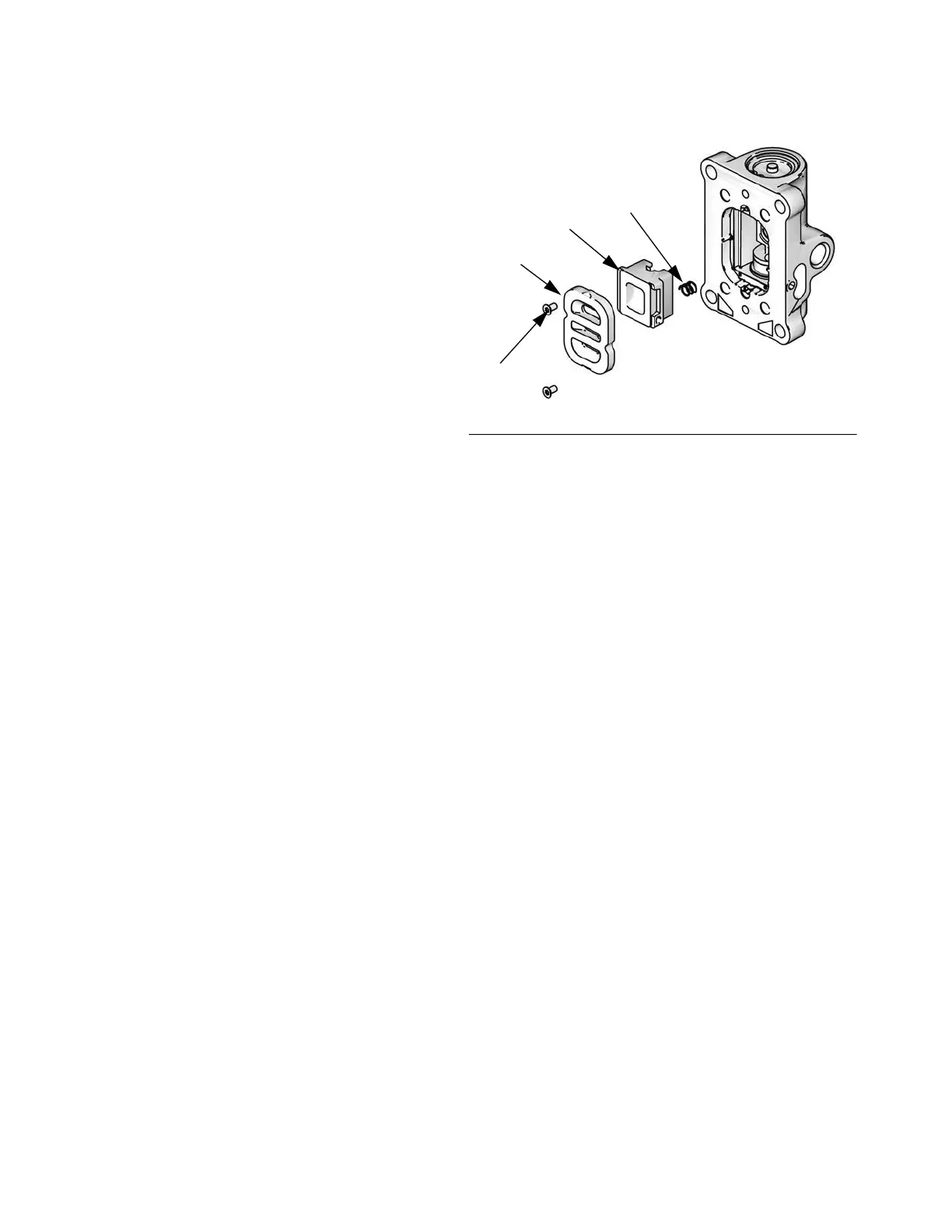

F
IG. 12. Air Plate Removal
309†
305
312
311
ti16284a
