Graco 24F150 User Manual

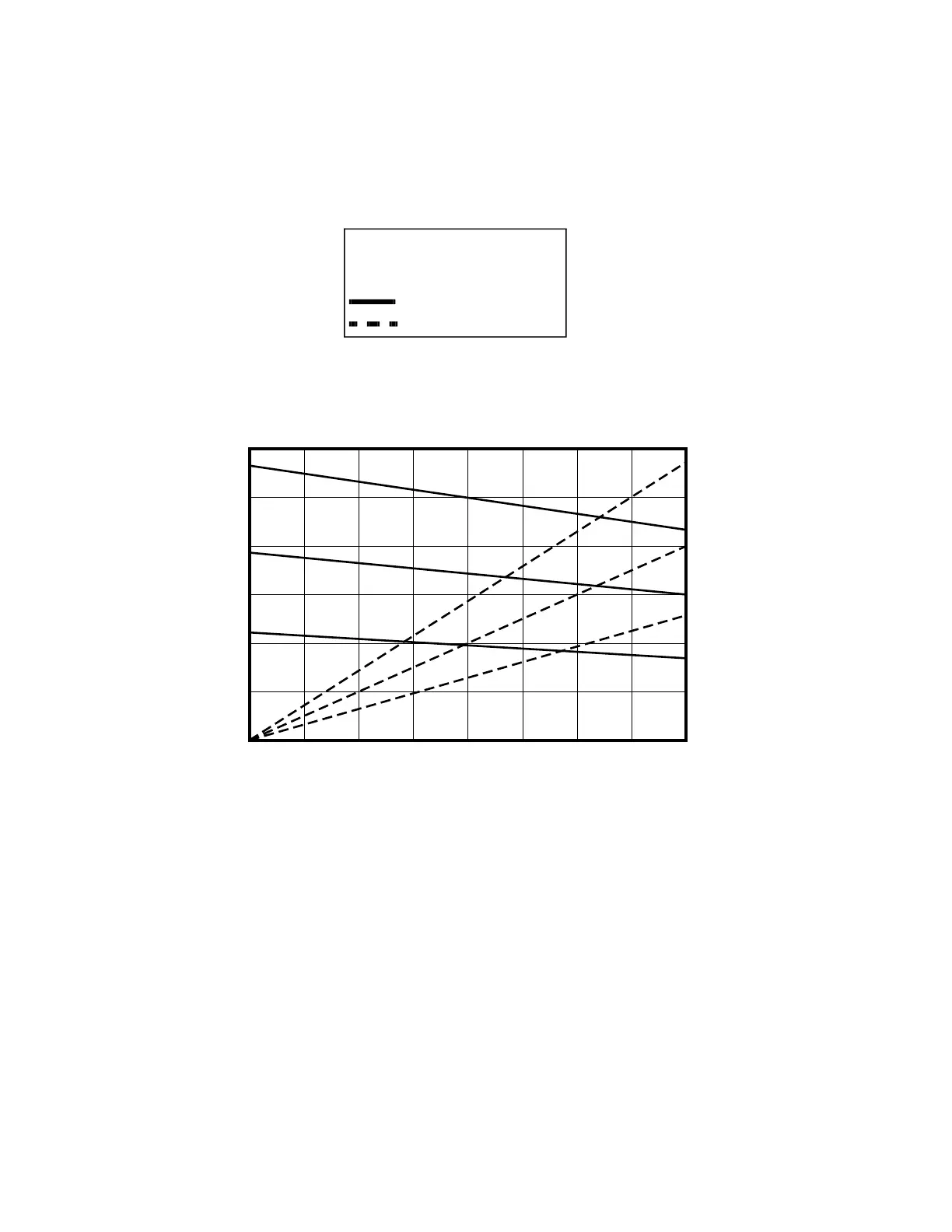

Performance Charts
48 3A0732U
30:1 Ratio Pumps
A = 100 psi (0.7 MPa, 7 bar)
B = 70 psi (0.5 MPa, 5 bar)
C = 40 psi (0.3 MPa, 3 bar)
= fluid flow
= air flow
A
B
C
A
B
C
Cycles per Minute
Air Flow scfm (m
3
/min)
Fluid Outlet Pressure psi (MPa, bar)
Fluid Flow gpm (lpm) tested in No. 10 weight oil
KEY
30 60 90 120 150 180 210 240
0.05
(0.2)
0.15
(0.6)
0.10
(0.4)
0.20
(0.75)
0.25
(0.9)
0.30
(1.1)
0.35
(1.3)
0.40
(1.5)
0
18.0
(0.5)
3000
(21, 210)
9.0
(0.25)
15
(0.42)
12.0
(0.34)
6.0
(0.17)
3.0
(0.08)
2500
(17.5, 175)
2000
(14, 140)
1500
(10.5, 105)
1000
(7, 70)
500
(3.5, 35)
0
