Graco 24F150 User Manual

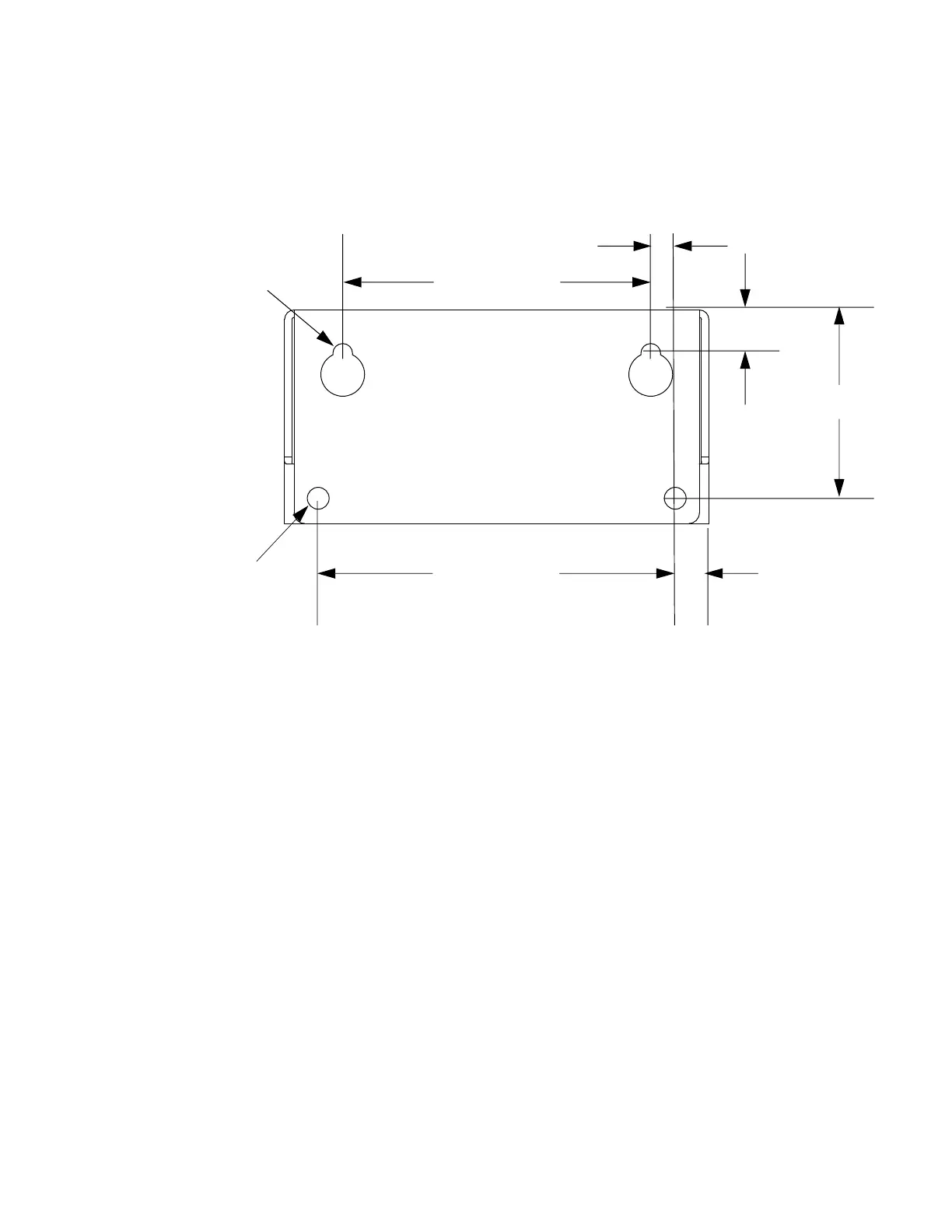

Wall Bracket Mounting Hole Diagram
3A0732U 45
Wall Bracket Mounting Hole Diagram
2 x 0.281 (9/32) in. (7 mm).
For wall mount only.
TI16289a
4.40 in. (112 mm)
2 x 0.312 (5/16) in. (8 mm).
For wall mount or to attach
stand to bracket.
5.10 in. (130 mm)
2.69 in.
(68 mm)
2 x 0.48 in.
(12 mm)
2 x 0.62 in.
(16 mm)
2 x 0.35 in.
(9 mm)

Graco 24F150 Specifications

General

Brand	Graco
Model	24F150
Category	Paint Sprayer
Language	English
