Repair
3A0732U 25
5. Lubricate and install the o-ring (202*) on the bottom
cover (201).
6. Carefully push the threaded end of the rod (218) up
through the bottom cover (201).
7. Apply 16G561 adhesive to the threads of the rod
(218). Screw the piston (219) onto the rod. Place
the piston in a vise with soft jaws and torque to
35-40 ft-lb (47-54 N•m).
8. Lubricate and install the o-ring (204*) on the piston
(219).

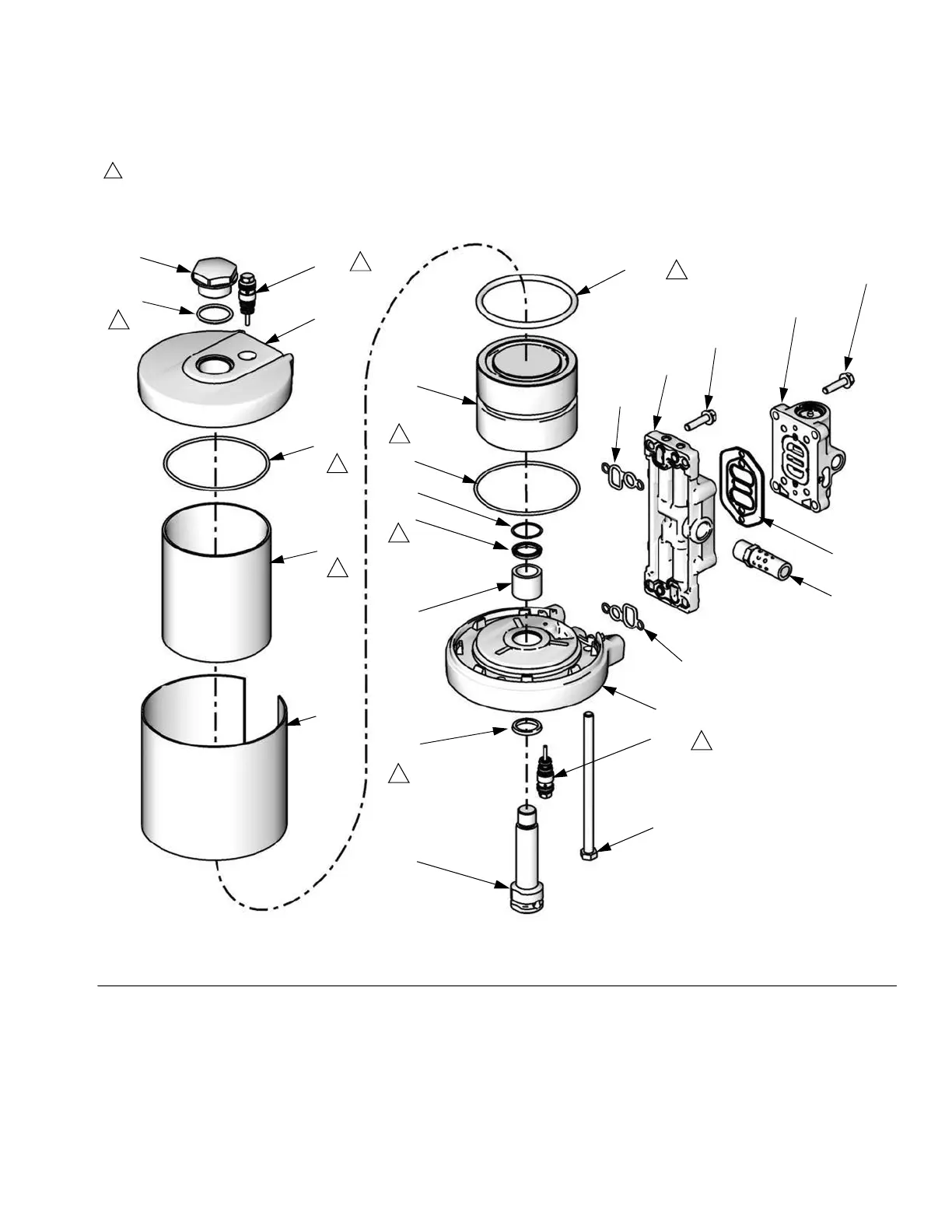

FIG. 18. Air Motor Assembly
TI16130a
201
215
214
213
211
202*
203
204*
219
209* †
208*
*207
205
206
210
212
220
*202
208*
211
213
*217
218
*207
*230
231
1
1
1
1
1
1
1
1
Apply lubricant.
1
1
