Installation
313046A 11
Installation

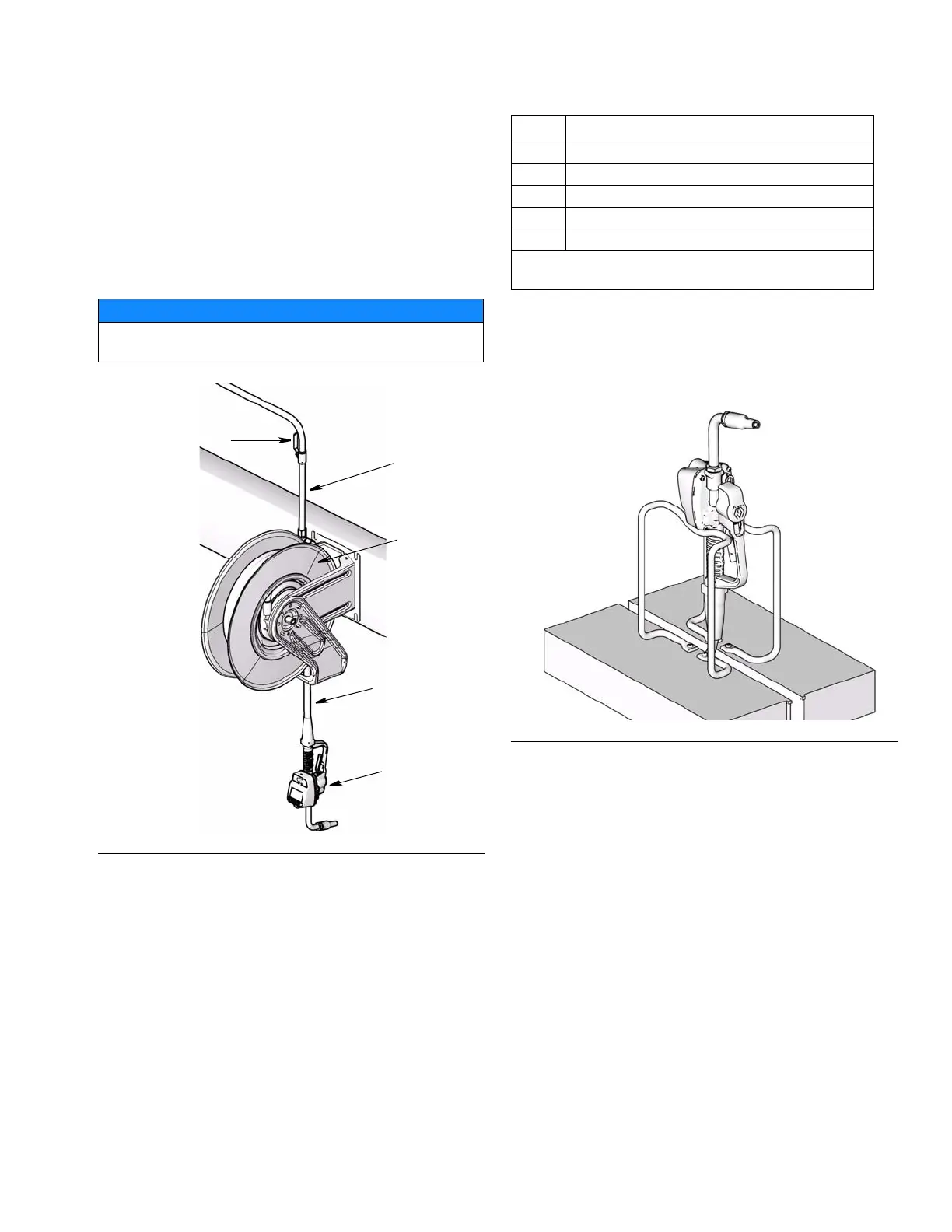

Typical Installations (FIG. 13)
The typical installation shown in FIG. 13 is only a guide.
It is not a complete system design. Contact your Graco
distributor for assistance in designing a system to suit
your needs.
Mounting Bracket (FIG. 14)
Mounting Bracket Kit 249440 is available for resting the
dispense valve on a console.
NOTICE
The dispense valve is not designed for in-line
installation.
F
IG. 13
B
D
E
C
A
ti11010a
ITEM DESCRIPTION
A Electronic metered dispense valve
B Fluid shut-off valve
CHose
D Hose reel fluid inlet hose
E Hose reel
A Thermal Relief Kit (not shown) is required. The kit
required will vary by pump selected.
FIG. 14
ti11822
