Replacing the Battery
To change the battery:
1. Press firmly on battery compartment cover. Using a
flat screwdriver turn latch screw counter-clockwise
1/2 turn.
2. Remove the battery compartment cover and batter-
ies.
3. Install new batteries. See F
IG. 37 for battery orienta-
tion.
4. Replace cover. The cover is designed to only fit on
battery compartment one way. The notch (a) on
cover fits into slot (b) on compartment. (F
IG. 38).
.
5. Press down firmly on cover. Using a flat screwdriver
turn latch screw clockwise 1/4 turn.
• Only use the size and type of batteries specified in
this manual.
Batteries required to meet life expectancy:
• Energizer E91
• Be sure to follow the correct polarity when
installing batteries in the battery compartment
(F
IG. 37). Reversed batteries may damage this
meter.
• Do not mix different types of batteries together or
old batteries with fresh ones. Always replace all 4
batteries with 4, fresh, new batteries.

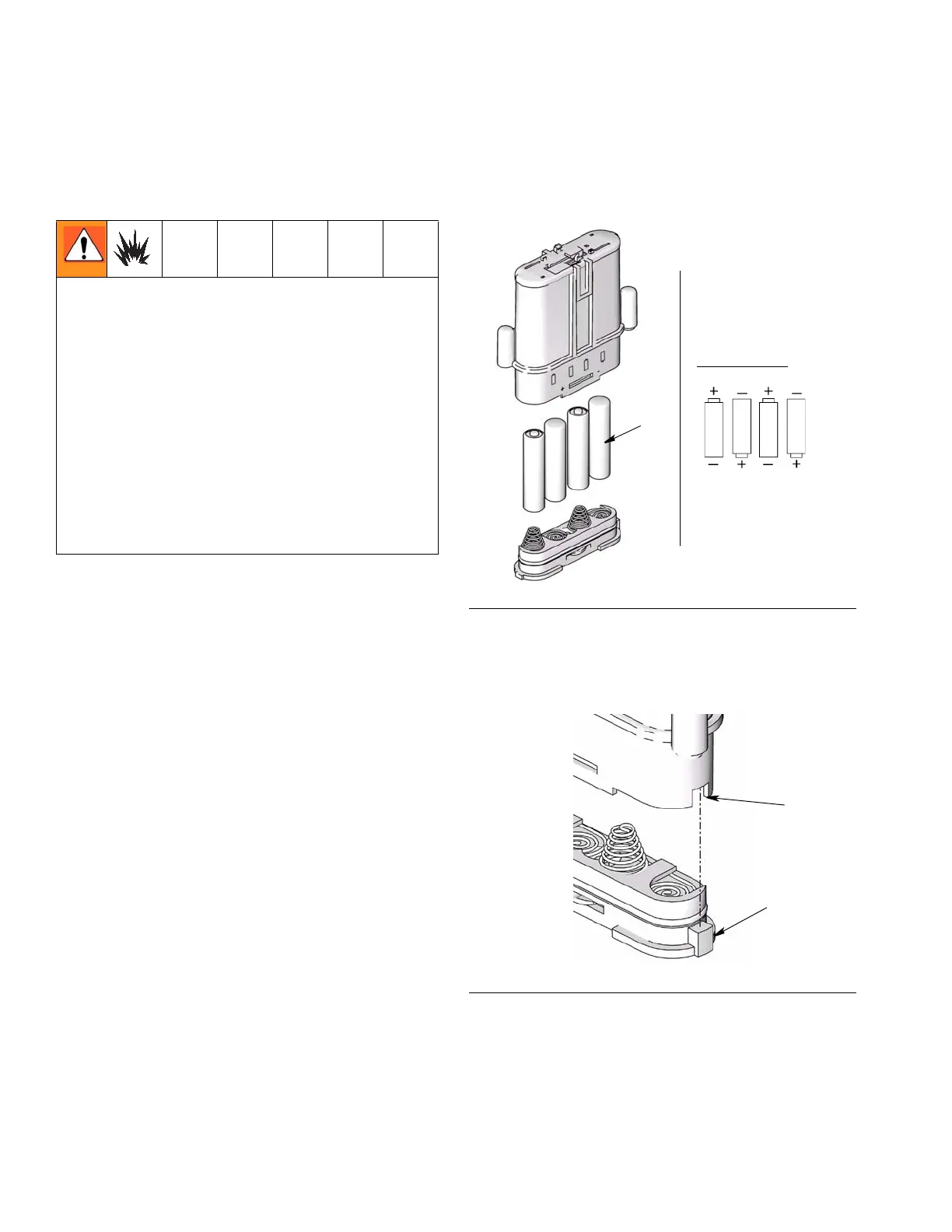

FIG. 37
F
IG. 38
ti10984a
47
Battery
Orientation
(b)
(a)
