Setup
16 3A1782D

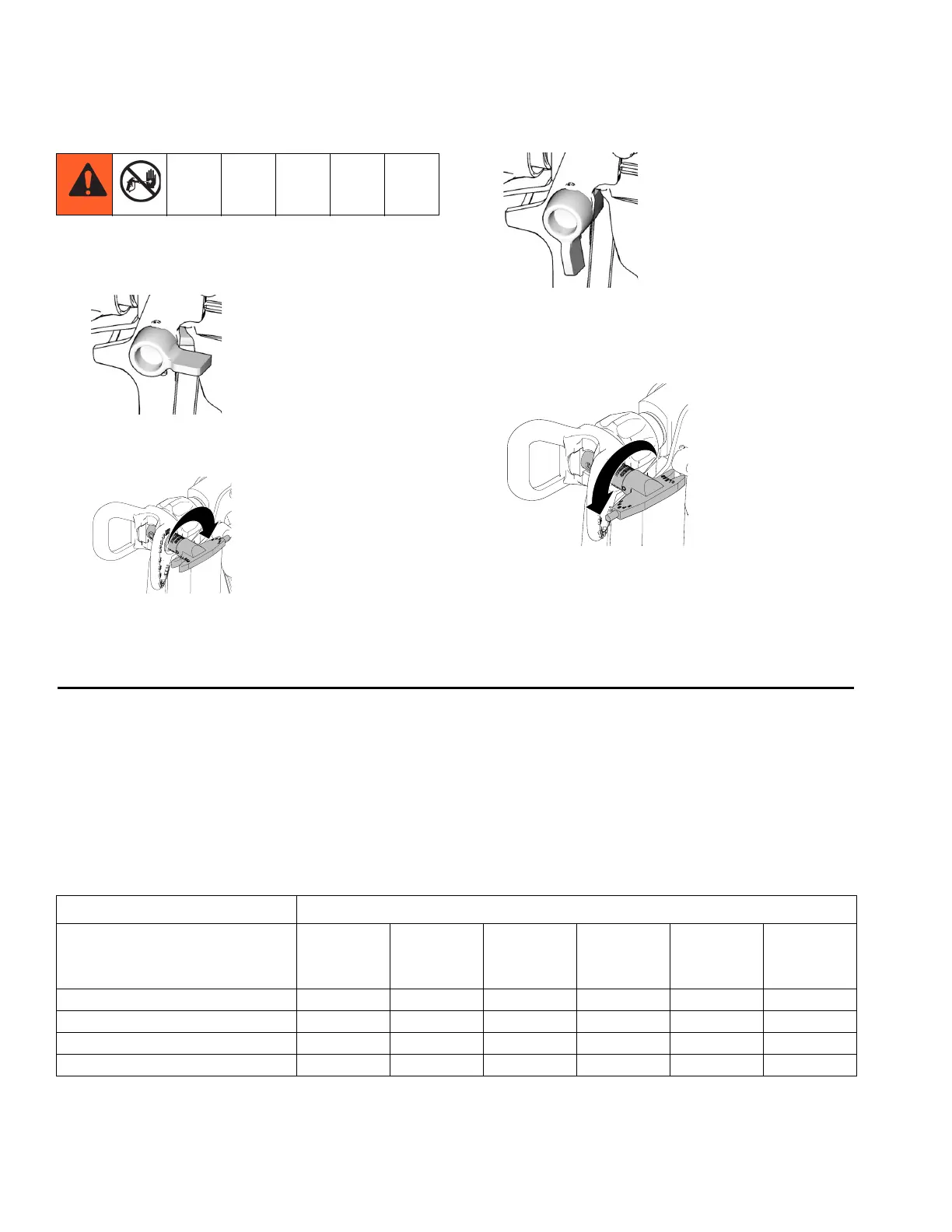

Unclogging Spray Tip
1. To UNCLOG tip obstruction, engage trigger
lock.
2. Point arrow-shaped handle backward to
UNCLOG position.
3. Aim gun at piece of scrap or cardboard.
4. Unlock trigger lock. Pull trigger to clear clog.
5. When obstruction is cleared, engage trigger
lock and rotate arrow-shaped handle back to
SPRAY position.
HINT: Point the arrow-shaped handle on the spray tip
forward to SPRAY and backward to UNCLOG
obstructions.
Tip Selection
Selecting a Tip Hole Size
Tips come in a variety of hole sizes for a range of fluids.
Your ESP sprayer includes the tip most likely to satisfy
common spraying applications.Use the following table to
determine the range of recommended tip hole sizes for
each fluid type. If you need a tip other than the one sup-
plied, see the Uni-Tip Selection Chart page 17.
HINT:
As you spray, the tip wears and enlarges. Starting with a
tip hole size smaller than the maximum will allow you to
spray within the rated flow capacity of the sprayer
ti8908a
ti17491a
ti8909a
ti17490a
COATINGS
Tip Hole Size
(expressed as diameter, based
on area of elliptical orifice)
Stains Enamels
Oil-based
primers
and paints
Interior
latex paint
Exterior
latex paint
Acrylics
0.011 in. (0.28 mm) X X X
0.013 in. (0.33 mm) X X X X
0.015 in. (0.38 mm) XXXX
0.017 in. (0.43 mm) XXXX
