Graco Fire-Ball 246775 - Page 11

Service and Repair
309869C 11

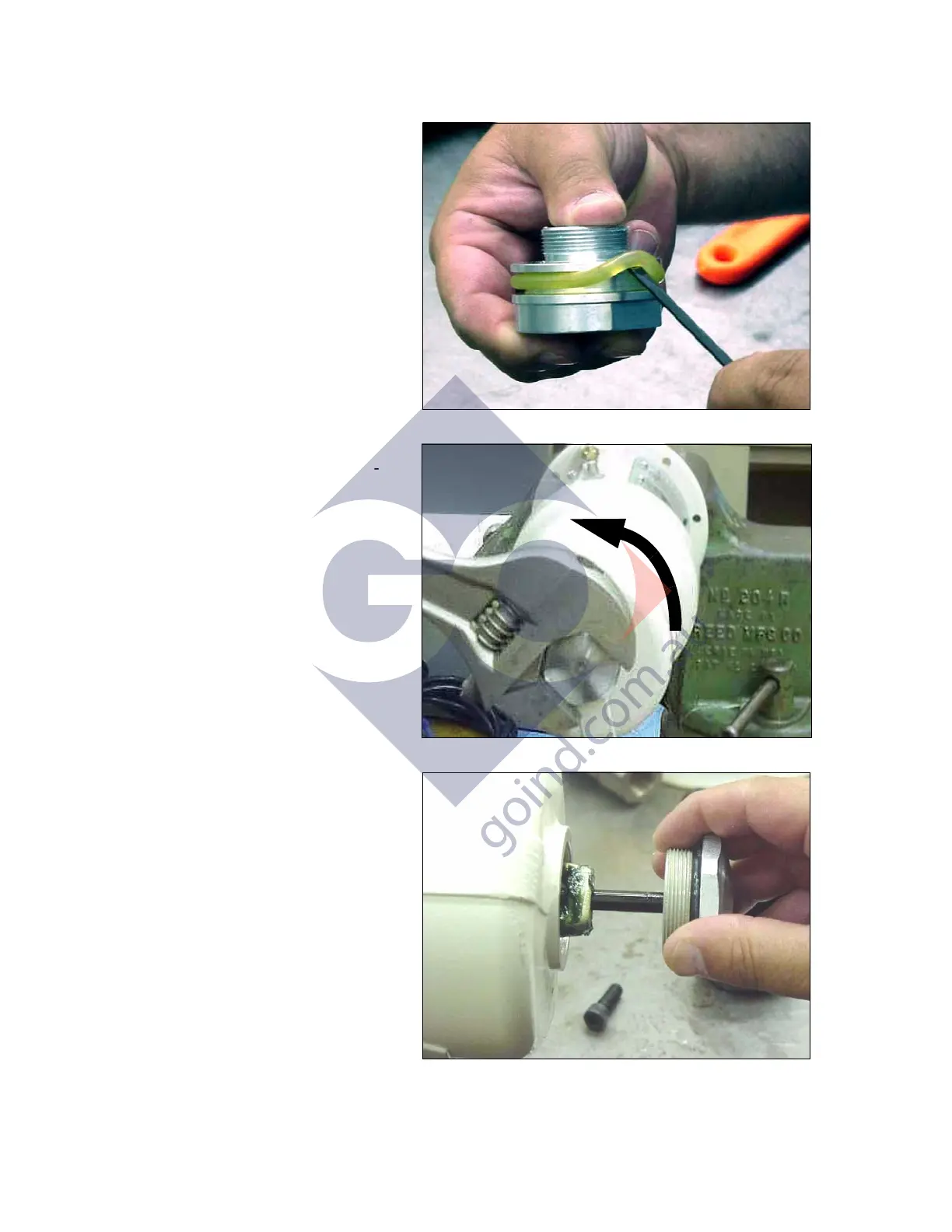

12. Remove the packing o-ring (11*)
from the fluid piston (43).
13. Unscrew the cylinder cap nut (39)
from the top of the air motor cylin-
der (35).
14. Pull up on the cylinder cap nut
(39) to expose the trip rod (40).
