Service and Repair
14 309869C

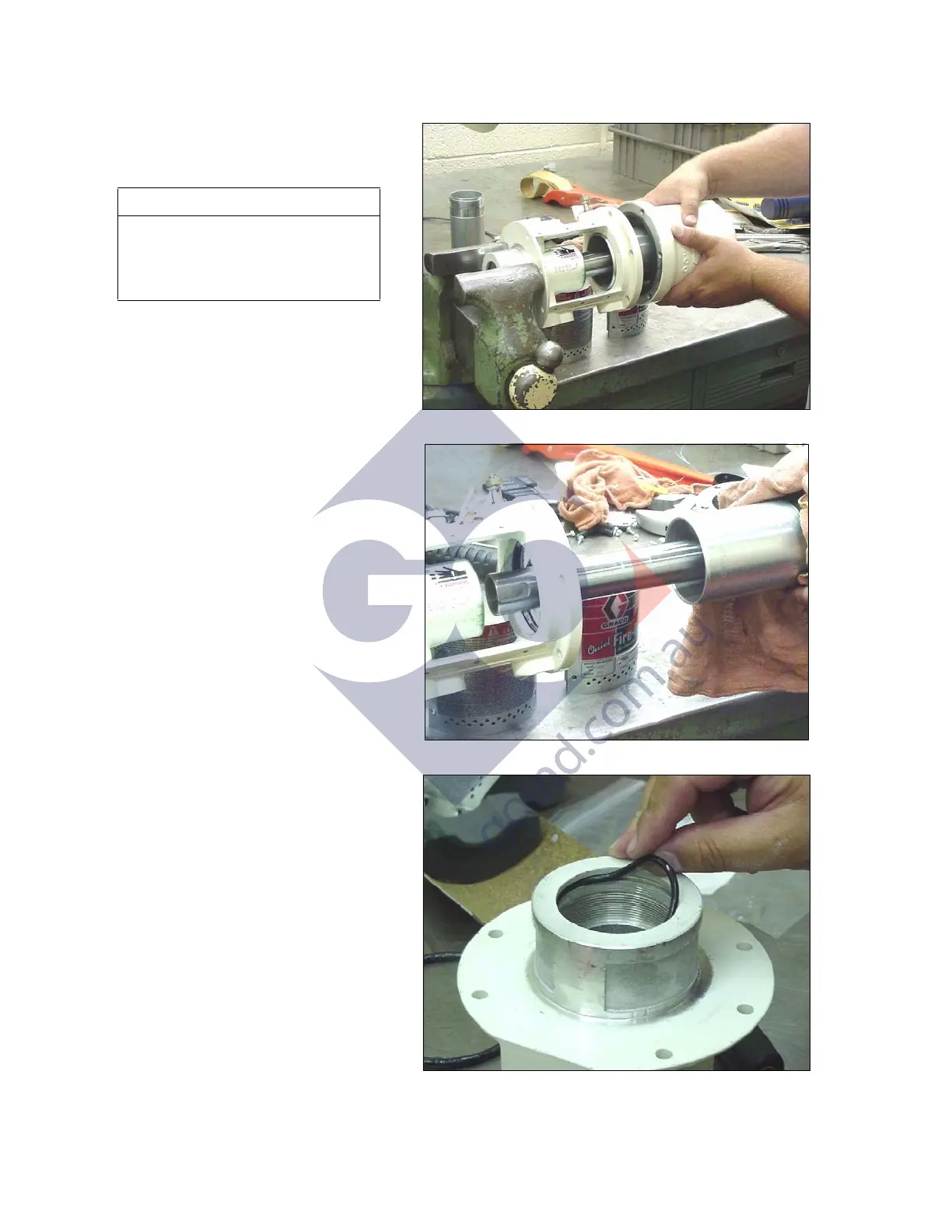

21. Carefully pull the air motor cylin-
der (35) straight off of the air
motor piston (34).
22. Pull the air motor piston/displace-
ment rod assembly (34, 29) clear
of the air motor base (28).
23. Remove o-ring packing (12*).
CAUTION
To avoid damaging the cylinder wall,
pull the cylinder straight off of the pis-
ton. Never tilt the cylinder while you
are removing it.
