Reassembly
24 309869C

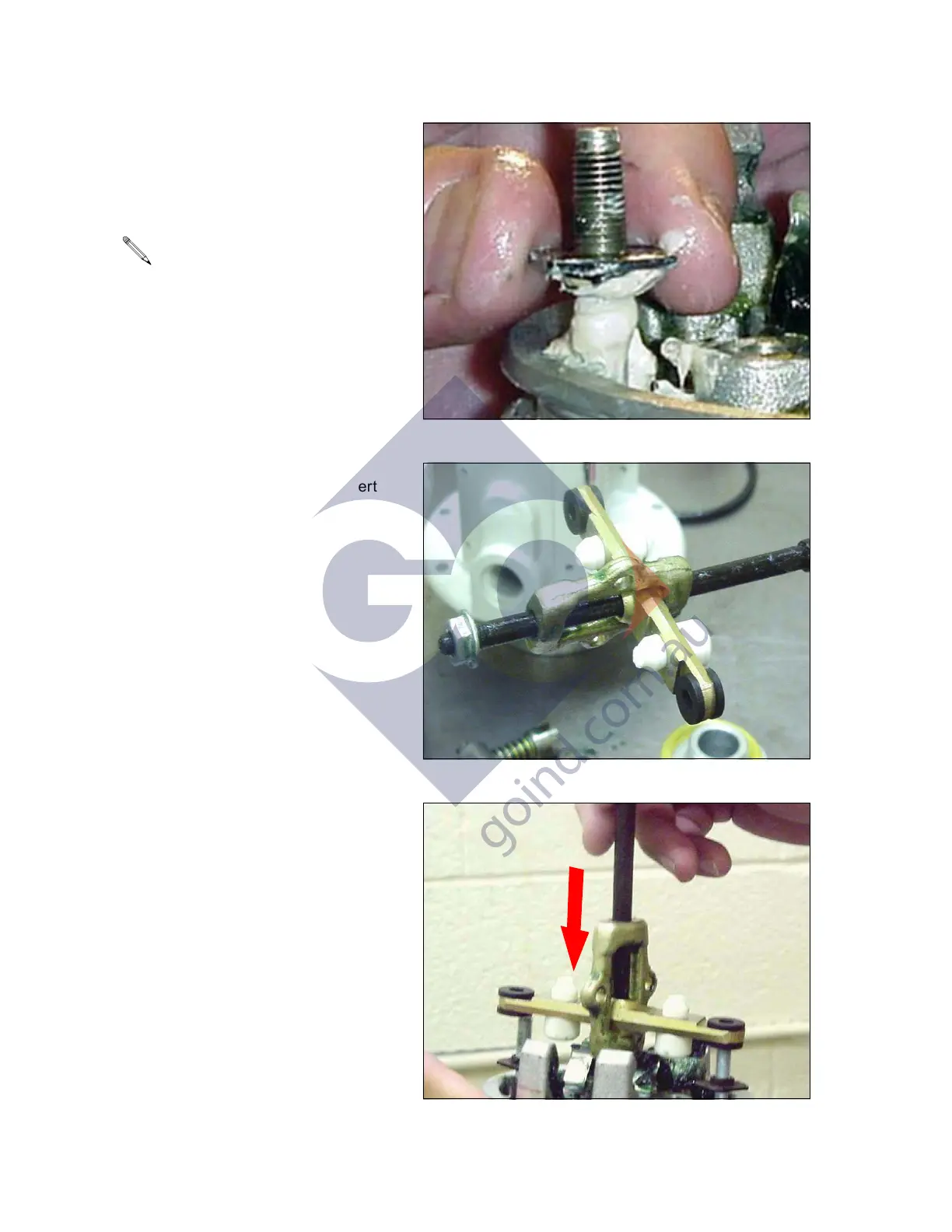

6. Thread the bottom valve nuts
(24*) onto the stems of the poppet
valves until there are a few
threads left before the threads run
out.
If you thread the valve nuts too
far down onto the poppet valves, they
will run off of the threaded part.
7. Assemble the trip rod yoke (23)
and actuator valve (27) and insert
the trip rod (40).
8. Grease heavily and place the trip
rod (40) into the air motor piston
(34) with the stems of the poppet
valves (32*) going through the
lower valve grommets (17*).
