Graco Husky 1040 - Dimensional Drawings; Pump Dimensions and Views; Pump Mounting Hole Pattern

Graco Husky 1040
36 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
308443 33

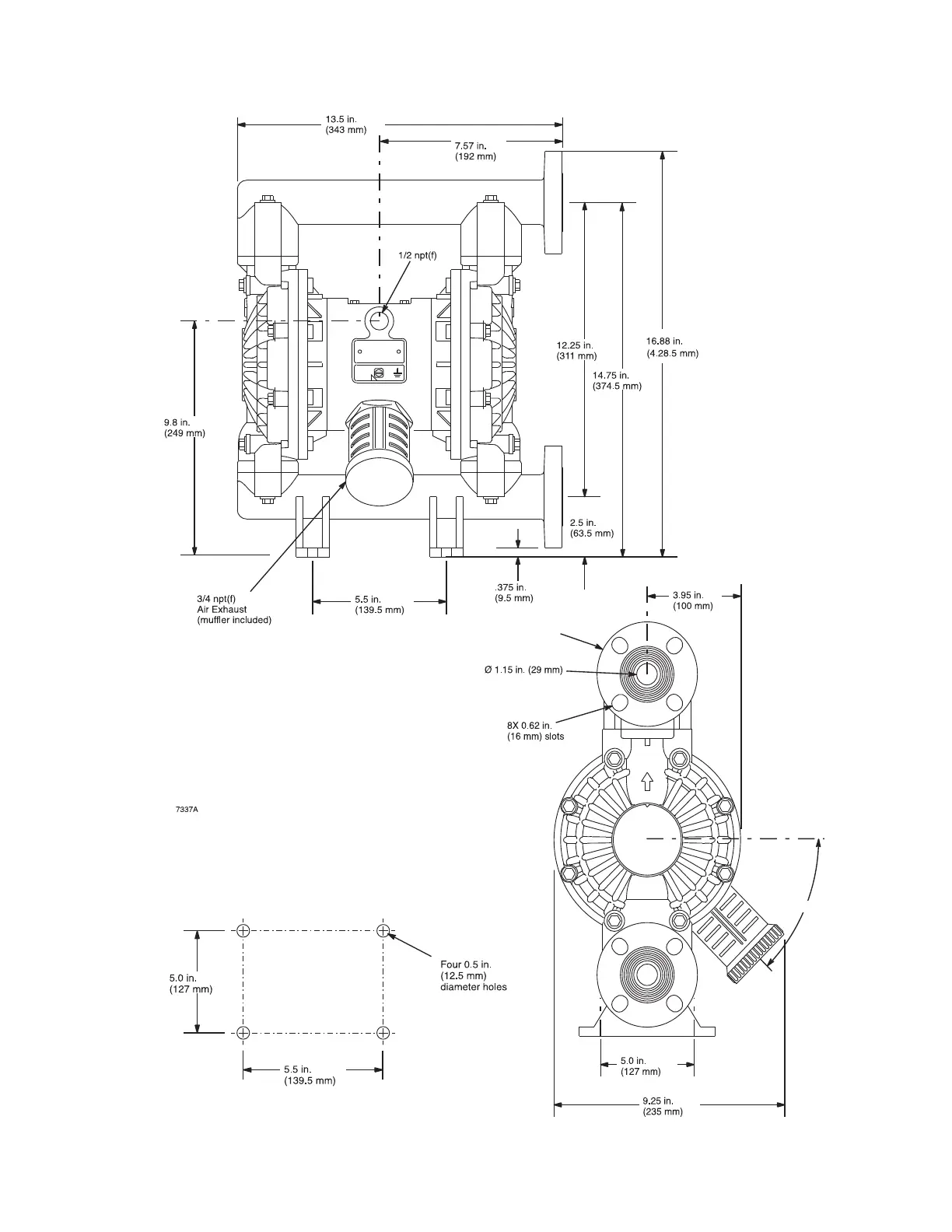

Dimensional Drawings
FRONT VIEW
PUMP MOUNTING
HOLE PATTERN
SIDE VIEW
ANSI Flange
Fluid Outlet
45°
