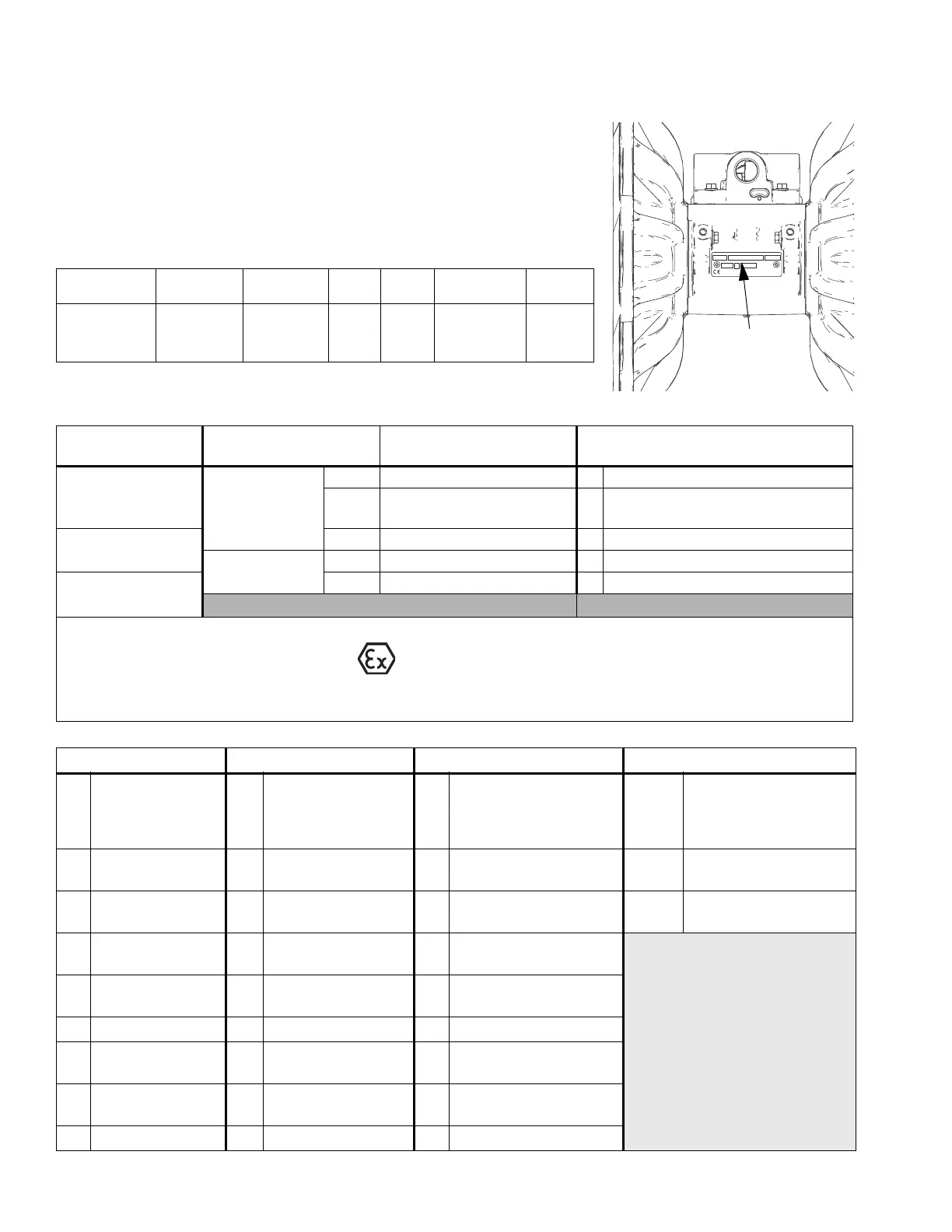

Configuration Number Matrix
4 3A0411A
Configuration Number Matrix
Check the identification plate (ID) for the 20-digit Configuration Number
of your pump. Use the following matrix to define the components of your
pump.
Sample Configuration Number: 3300A-A01AA1TPACTPBN
3300A A01A A1 TP AC TP BN
Pump
Model
Center
Section and
Air Valve
Fluid
Covers and
Manifolds
Seats Balls Diaphragms Manifold
and Seat
Seals
&21),*85$7,21123$5712 6(5,$/12
6(5,(6'$7(&2'(
0$;:3536,EDU
Pump Configuration
Number
ti17770a
Pump
Center Section and Air
Valve Material
For Use With Fluid Covers and Manifolds
3300A★
Aluminum
Aluminum A01A Standard Diaphragms A1 Aluminum, center flange, npt
A01E Optional FKM seals with
Standard Diaphragms
A2 Aluminum, center flange, bspt
3300P†
Polypropylene
A01G Overmolded Diaphragms P1 Polypropylene, center flange
Polypropylene† P01A Standard Diaphragms S1 Stainless steel, center flange, npt
3300S★
Stainless Steel
P01G Overmolded Diaphragms S2 Stainless steel, center flange, bspt
★ 3300A (aluminum) and 3300S (stainless steel) pumps with aluminum center sections are certified:
† Pumps with polypropylene fluid or center sections are not ATEX certified.
II 2 GD c IIC T4
Check Valve Seats Check Valve Balls Diaphragm Manifold and Seat Seals
AC Acetal AC Acetal BN Buna-N --- Models with Buna-N,
FKM Fluoroelastomer
or TPE seats do not use
o-rings.
AL Aluminum BN Buna-N CO Polychloroprene
Overmolded
BN Buna
BN Buna-N CR Polychloroprene
Standard
CR Polychloroprene PT PTFE
FK FKM Fluoroelasto-
mer
CW Polychloroprene
Weighted
FK FKM Fluoroelastomer
GE
Geolast
®
FK FKM Fluoroelasto-
mer
GE Geolast
PP Polypropylene GE Geolast PO PTFE Overmolded
SP
Santoprene
®
PT PTFE PT PTFE/Santoprene
Two-Piece
SS 316 Stainless
Steel
SP Santoprene SP Santoprene
TP TPE TP TPE TP TPE
