Setup
16 3A6342A
Setup

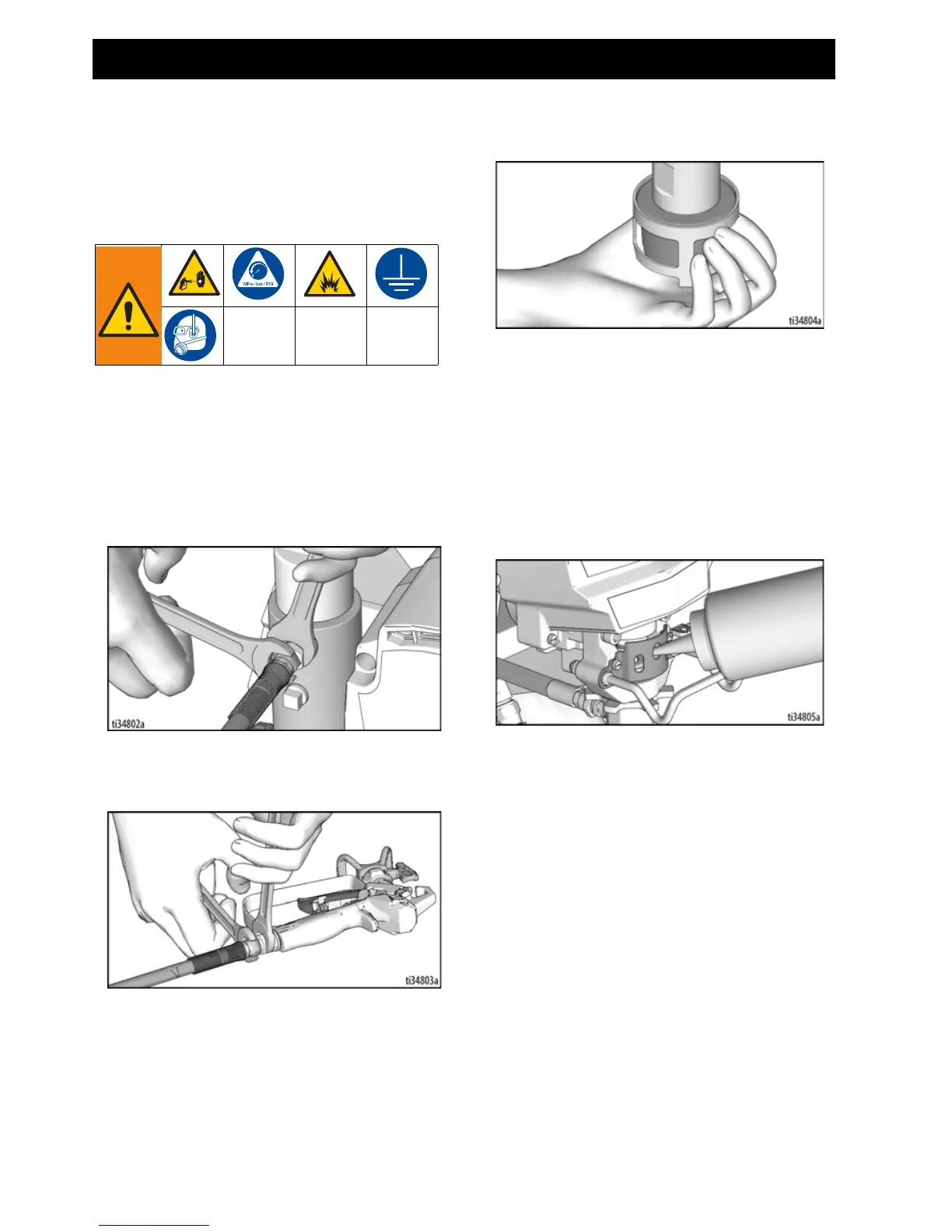

Assemble Your Sprayer
When unpacking sprayer for the first time or
after long term storage perform setup
procedure.
1. All sprayers except ProContractor:
Connect Graco airless Hose to sprayer.
If whip Hose is included, attach to end of
airless Hose. Use wrenches to tighten
securely.
2. Connect Spray Gun to other end of
Hose. Use wrenches to tighten
securely.
3. When unpacking sprayer for the first
time remove packaging materials from
inlet strainer. After long term storage
check inlet strainer for clogs and debris.
4. Fill throat packing nut with Graco TSL™
to prevent premature packing wear. Do
this each time you spray.
a. Place the TSL bottle nozzle into the
top center opening in the grill at the
front of the sprayer.
b. Squeeze bottle to dispense enough
TSL to fill the space between the
pump rod and packing nut seal.
5. Ensure Spray Tip is properly inserted
into the Spray Tip Guard, and the Spray
Tip Guard assembly is tightened
securely to the Spray Gun. Refer to
separate Spray Gun manual.
6. Perform the Pressure Relief Proce-
dure, page 19.
