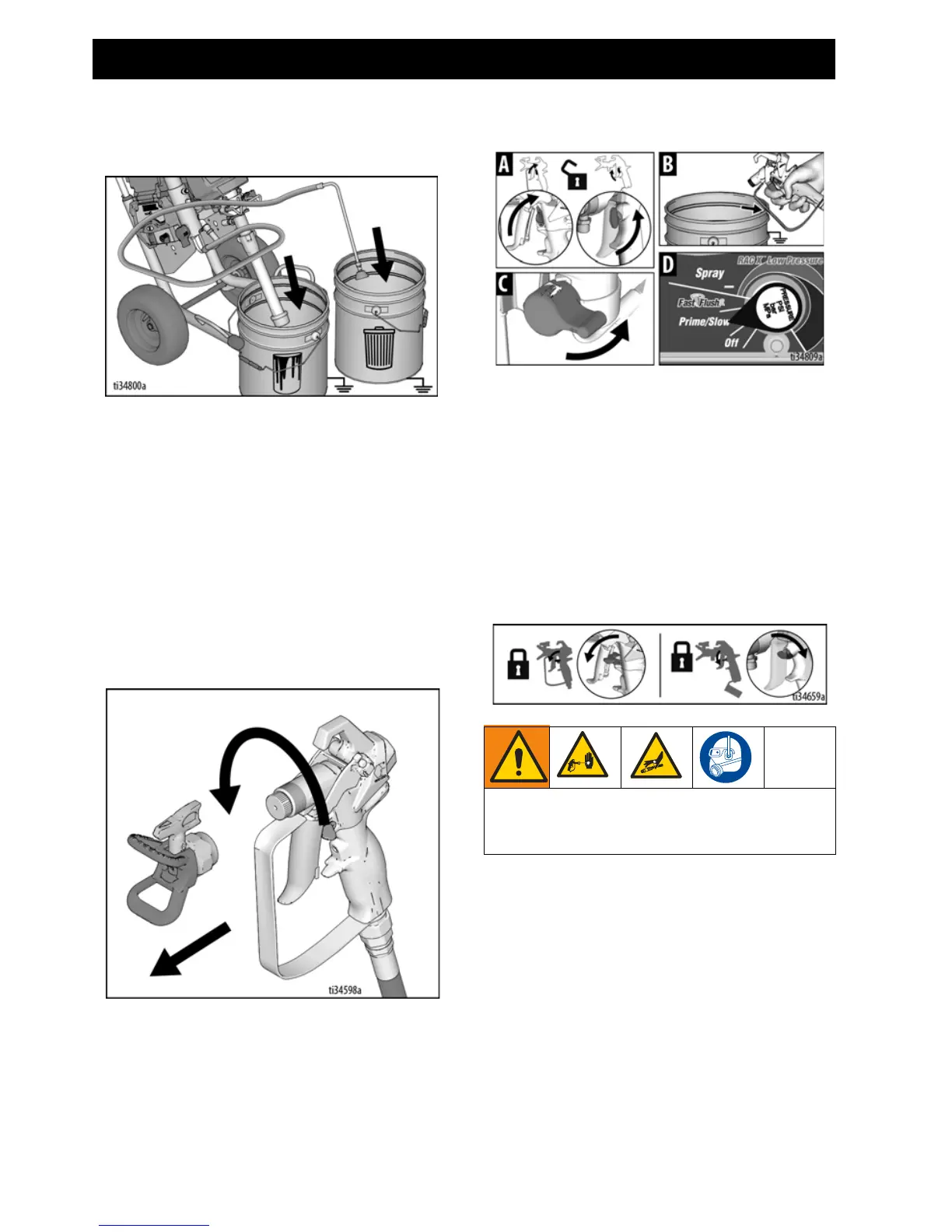

Start Up
22 3A6342A
1. Move Suction Tube to paint pail and
submerge Suction Tube in paint. Place
Drain Tube in waste pail.
2. Turn Pressure Control Knob to
Prime/Slow.
3. Turn ON/OFF switch to ON position to
start motor.
4. Wait to see paint coming out of Drain
Tube.
5. Turn Pressure Control Knob to OFF (all
the way counterclockwise) to
disengage motor.
Fill Spray Gun and Hose
1. Remove Spray Tip Guard.
2. Hold Spray Gun against waste pail.
Point Spray Gun into waste pail.
a. Disengage Trigger Lock (A).
b. Pull and hold Spray Gun trigger (B).
c. Turn Prime/Spray Valve horizontal
to SPRAY position (C).
d. Turn Pressure Control Knob to
Prime/Slow (D).
3. Continue to trigger Spray Gun into
waste pail until only paint comes out of
the Spray Gun.
4. Release trigger. Engage Trigger Lock.
NOTE: Inspect for leaks. If leaking occurs,
perform Pressure Relief Procedure, page
19, then tighten all fittings and repeat Fill
Pump (Prime Pump), page 21.
High-pressure spray is able to inject toxins
into the body and cause serious bodily
injury. Do not stop leaks with hand or rag.
