Troubleshooting
3A6342A 47

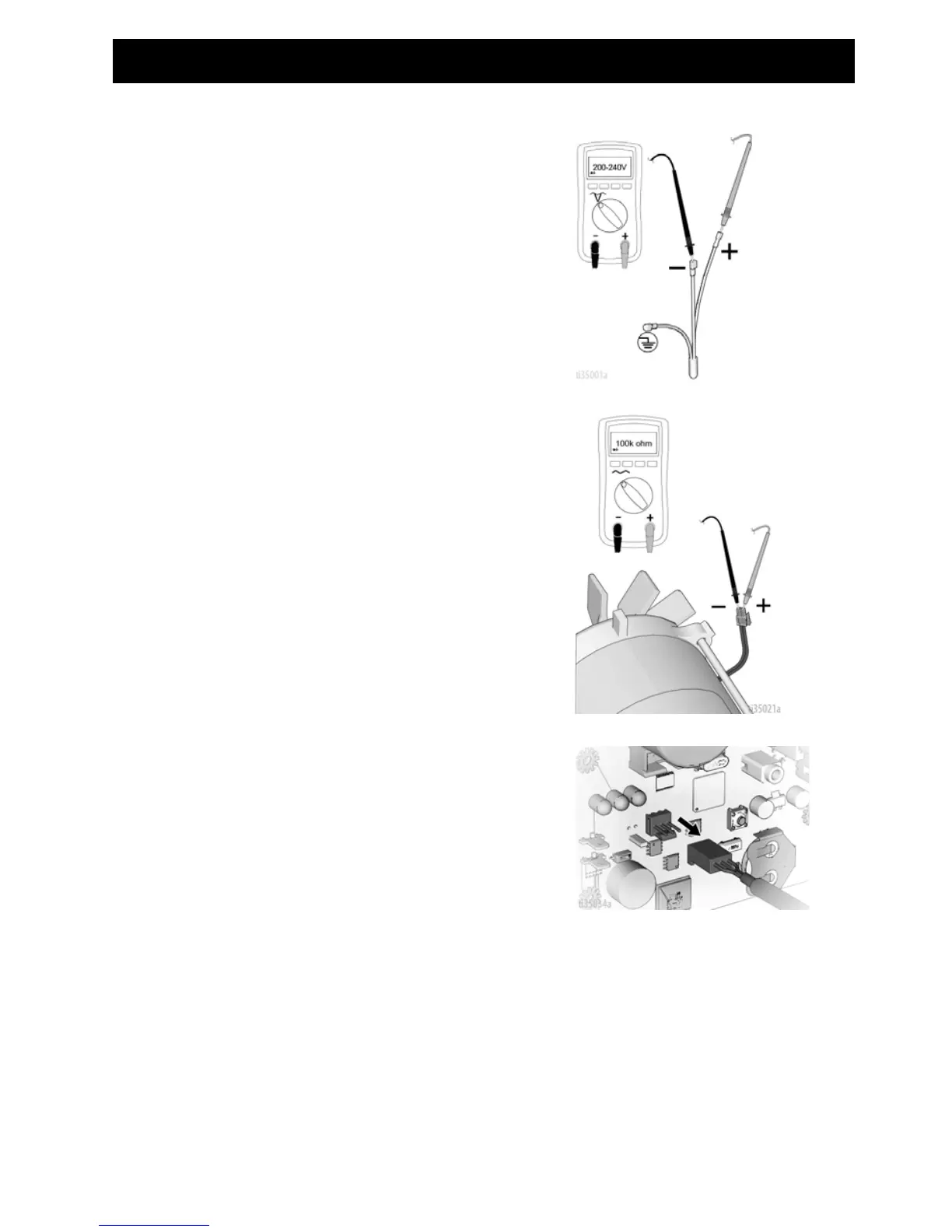

STEP 1:
Plug power cord in and turn switch ON. Connect
probes to on/off switch. Turn meter to AC Volts.
STEP 2:
Check motor thermal switch. Unplug yellow wires
above motor. Meter should read according to
Resistance Table on page 42. NOTE: Motor
should be cool during reading.
STEP 3:
Plug power cord in and turn switch ON. Disconnect
potentiometer.
