Graco Mark X User Manual

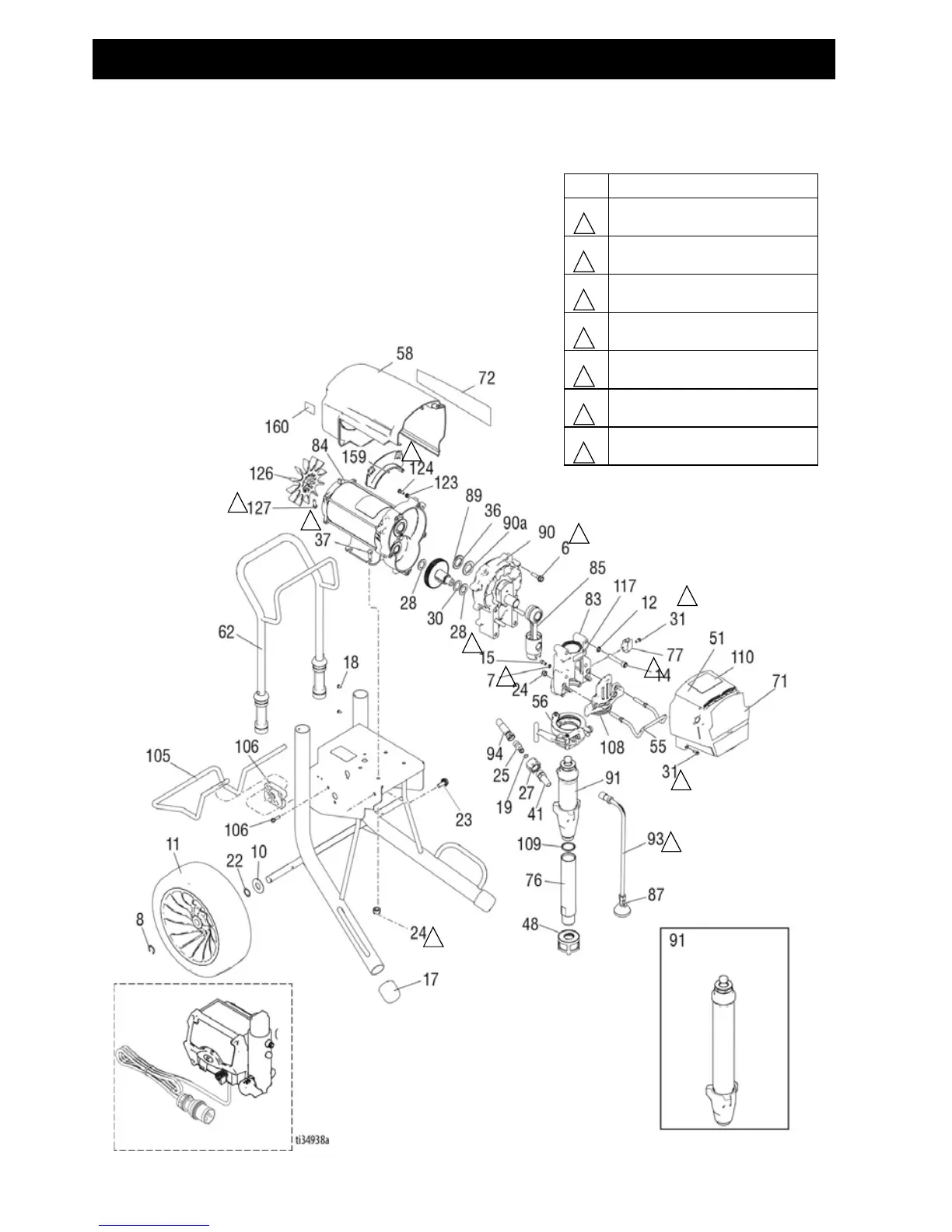

Diagrams and Parts
64 3A6342A
1095/1595/Mark V/Mark VII IronMan
7
1
1
2
3
7
3
4
5
6
6
See pages 72-77.
Ref. Torque
40-45 in-lb (4.5 - 5.0 N•m)
9-11 in-lb (1.0 - 1.2 N•m)
200-230 in-lb (22.6 - 25.9 N•m)
190-210 in-lb (21.4 - 23.7 N•m)
90-110 in-lb (10.1 - 12.4 N•m)
25-30 ft-lb (33.8 - 40.6 N•m)
65-85 in-lb (7.3 - 9.6 N•m)
1
2
3
4
5
6
7
Mark V and
Mark VII

Graco Mark X Specifications
