Parts
312394ZAC 41

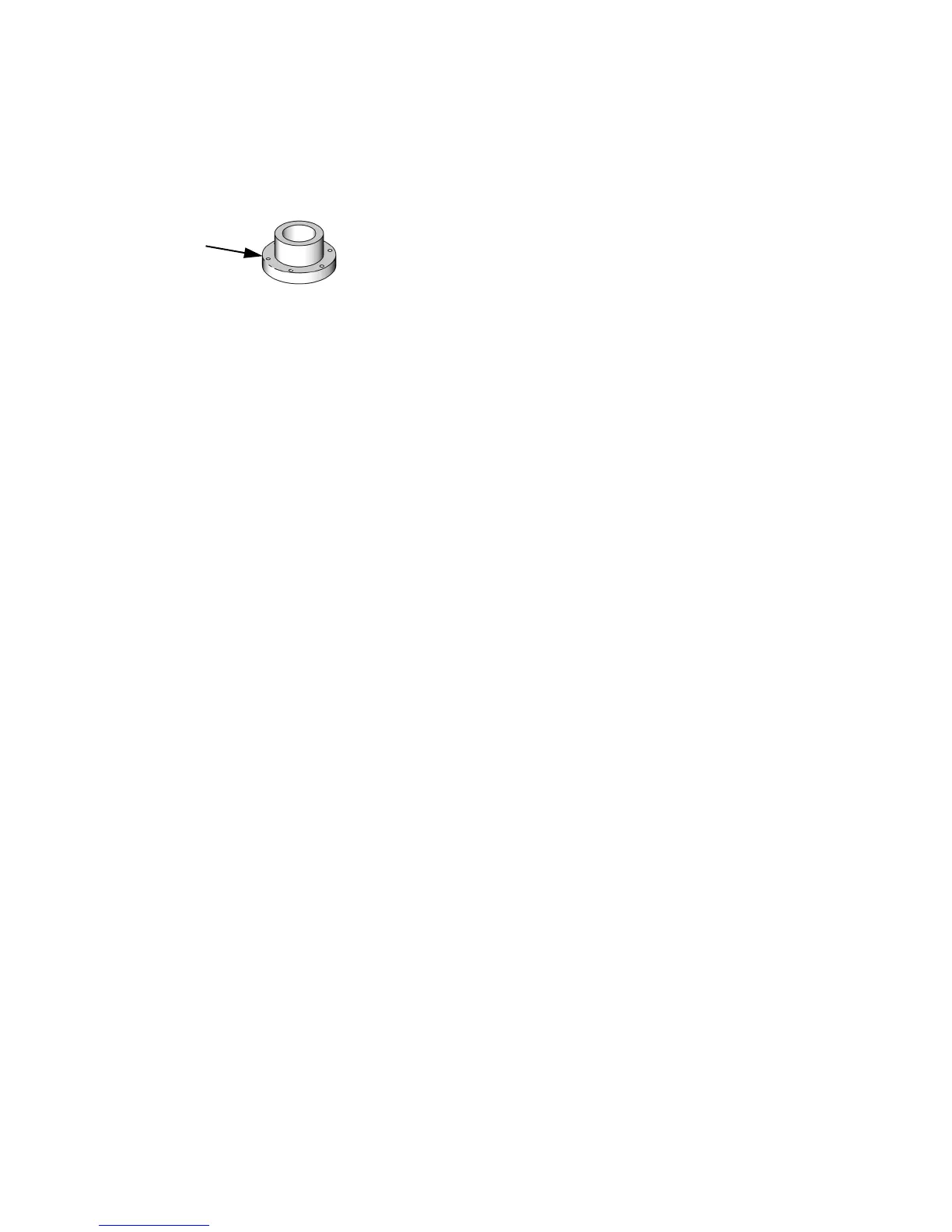

Flange Assembly, 256896
The flange assembly can be installed if no tanks or
accumulators are installed. It allows for other feed sys-
tem options to be installed onto the pump subassembly.
* Part not shown.
Ref Part Description Qty
2701 15M237 Flange, 1-1/2 in. npt 1
2702 * 95/0223/00 O-RING, fluoroelastomer, bbc 1
2703 * 120904 SCREW, socket head cap, M5
x0.8x18mm
3
ti12455a
2701
