Parts
46 312394ZAC
Off-Board Stainless Steel Tanks
Tank Assemblies
† Parts can be purchased in Tank Kit 255389 which includes the tank body, a basic tank lid with clamps, lid plug
fittings, and a tank lid gasket.
Parts can be purchased in Tank Kit 256633 which includes the tank body, a basic tank lid with clamps, lid plug
fittings, and a tank lid gasket.
❖ Parts can be purchased in Tank Kit 17S473 which includes the tank body, an agitator tank lid with clamps, lid plug
fittings, and a tank lid gasket.
✖ Parts can be purchased in Tank Kit 17S584 which includes the tank body, an agitator tank lid with clamps, lid plug
fittings, and a tank lid gasket.
601
601
606
601
602
605
603
604
Apply thread sealant tape to male
npt threads prior to installation.
1
1
1
1
1

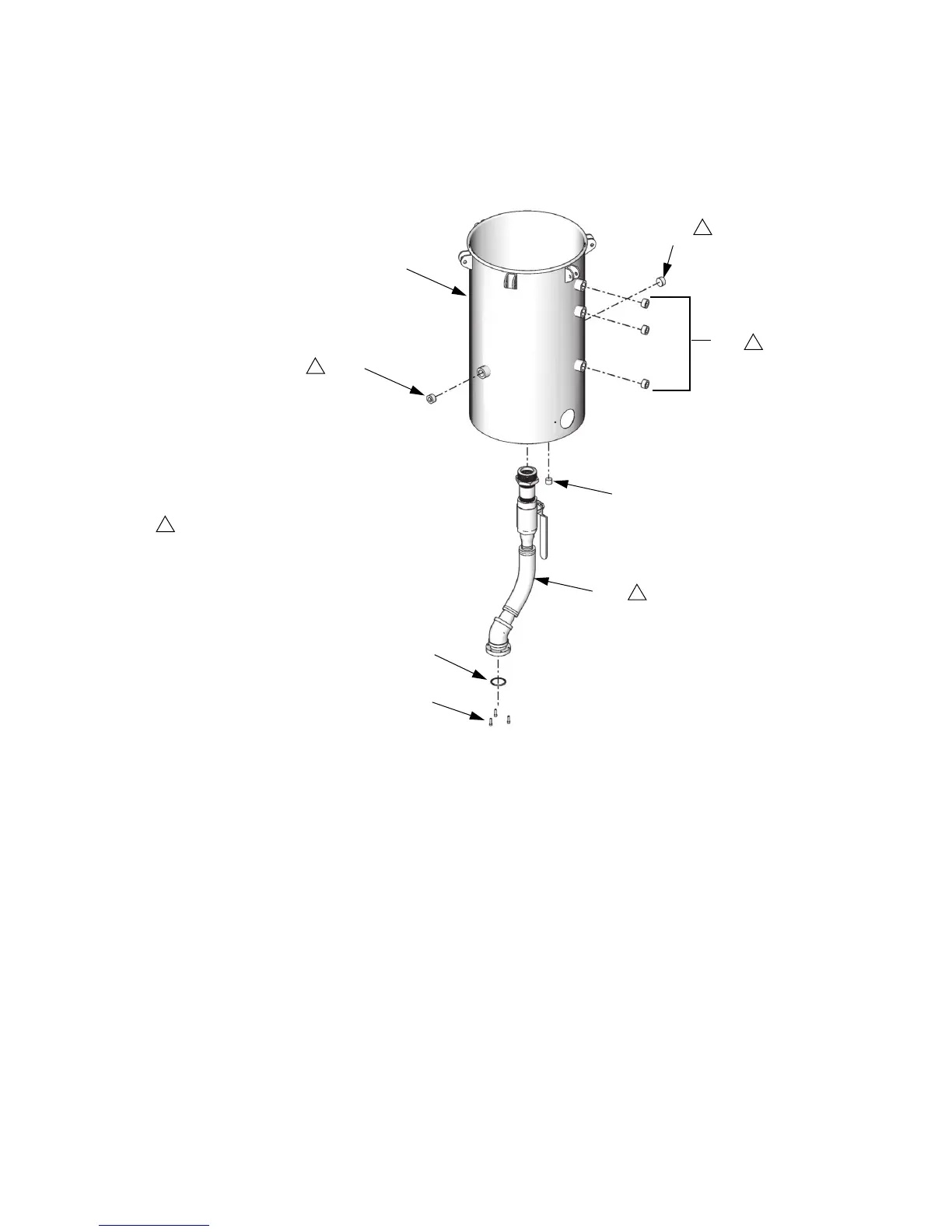

Assembly LC0054 Shown
ti12454a
Ref Part Description Qty
601 111384 PLUG, pipe 5
602 103778 PLUG, pipe, headless 1
603 108832 O-RING 1
604 120904 SCREW, socket head cap, M5 x 0.8 x 18 mm 3
605 255391 SYSTEM, pipe and tube, 1-1/2 in. 1
606 † TANK, 30 L, stainless steel 1
TANK, 60 L, stainless steel 1
❖ TANK, 30 L, stainless steel, agitator 1
✖ TANK, 60 L, stainless steel, agitator 1
To Next Page
