Parts
312394ZAC 47

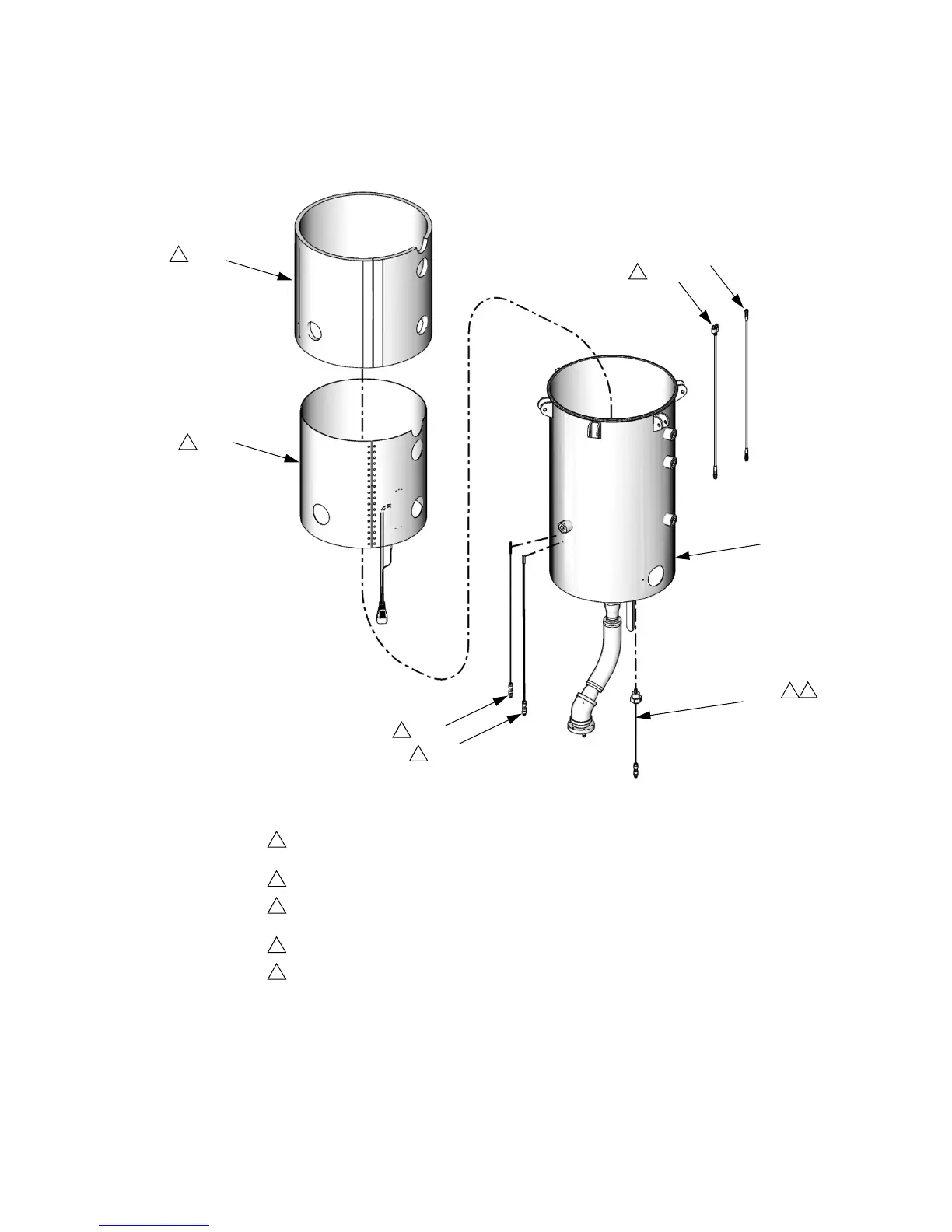

Tank Assemblies
408
407
401
404
405
406
402
403
Use glass cloth tape to secure ground strap, thermal switch, and RTD to tank wall
before adding heat blanket.
Secure heat blanket to tank with string laced through eyelets.
Insulation blanket should cover heat blanket completely. Secure insulation blanket to
tank with 2 in. wide velcro strap.
Apply thread sealant tape to male npt threads prior to installation.
The RTD sensor assembly (404) should always be connected to side one of the M8
splitter harness (407). Side one is on the female/female end of connector and is
marked with a molded imprint of the number “1”.
1
2
3
4
5
4
1
1
2
3
5
5
ti12452a
