Parts
48 312394ZAC
† Not shown. See Integrated Heat manual referenced
at the beginning of this manual.
▲ Replacement Danger and Warning labels, tags, and
cards are available at no cost.

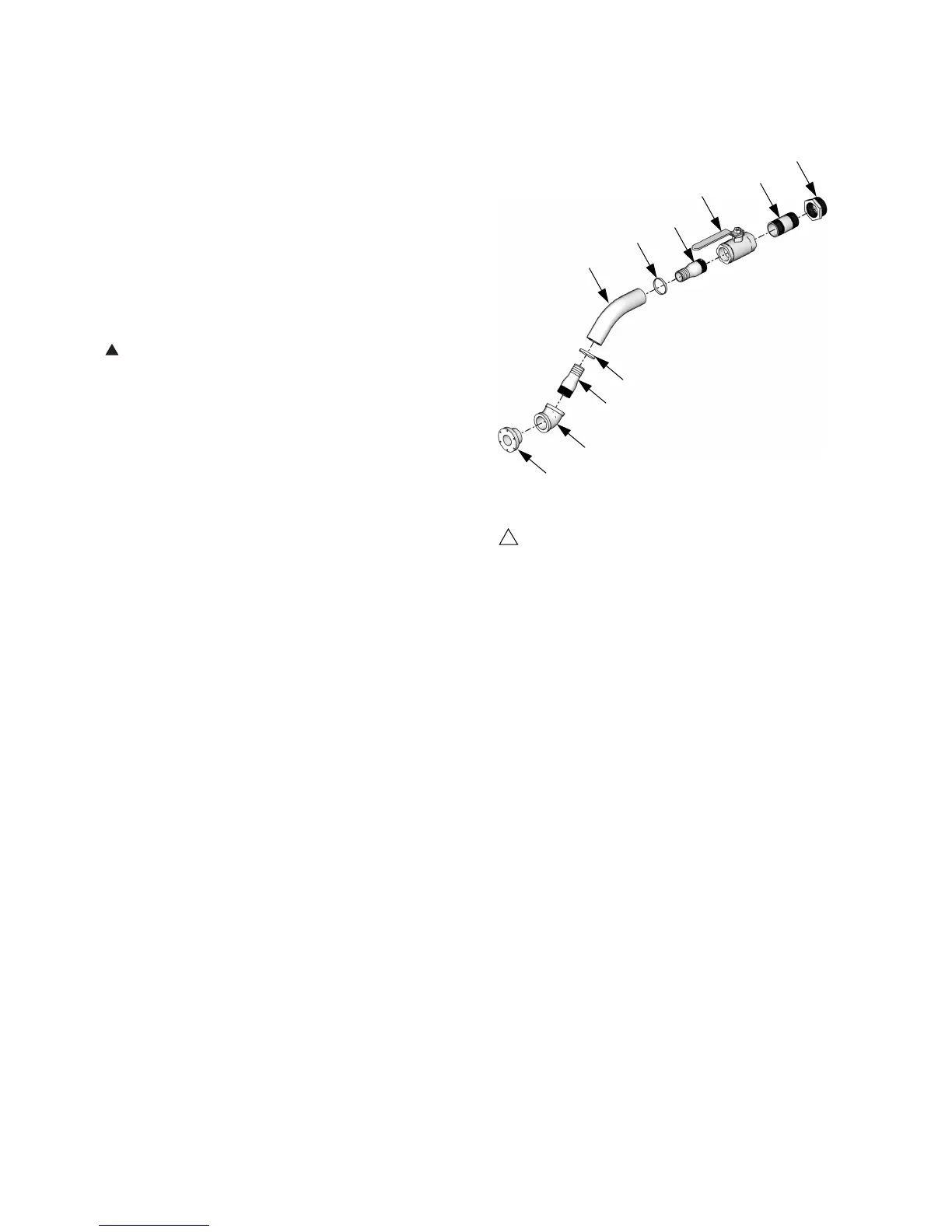

Pipe and Tube System, 255391
Ref Part Description Qty
401 --- TANK, assy, 30 L, stainless steel 1
--- TANK, assembly, 60 L, stainless
steel
402 LC0257 BLANKET, assy, heat, 30L,
240V, GCA
1
LC0258 BLANKET, assy, heat, 60L,
240V, GCA
403 257757 INSULATOR, blanket assy, 38 L 1
257758 INSULATOR, blanket assy, 75 L
403a
121208
LABEL, hot surface 1
404 257759 SENSOR, thermowell assy, RTD 1
405 256611 SENSOR, assy, 1.5 in. rtd, 4-pin
M8
1
406 256558 SWITCH, assy, thermal, 125C,
3P, M8
1
407 121615 HARNESS, splitter, M8, 4-pin
female/female/male, 3M
1
408 121682 CABLE, M8, 3-pin, male/female,
3 meter, molded
1
410 †121635 CIRCUIT, breaker, 2-pole, 13A, C
type
1
Ref Part Description Qty
2801 61/0056/88 HOSE, chemical, polyeth-
ylene,1-1/2 in.
1
2802 94/0910/98 FITTING, barb, 1-1/2 x 1-1/2
NPT, male, stainless steel
2
2803 94/1081/98 FITTING, elbow, 1-1/2 in.,
female, 45 deg, stainless steel
1
2804 94/0414/99 CLAMP, hose, 2-1/4 in. - 1-5/16
in., mild steel
2
2805 121135 VALVE, ball, 1-1/2 NPT full port 1
2806 121136 BUSHING, hex, 2 in. NPT x
1-1/2 in. NPT
1
2807 15M237 FLANGE,1-1/2 in. NPT 1
2808 15R536 FITTING, nipple, 1.5 NPT x 3 in.,
stainless steel
1
2801
2804
2802
2805
2808
2806
2807
2803
2802
2804
Apply thread sealant tape to all male npt threads.
1
ti12574a
