Parts
50 312394ZAC

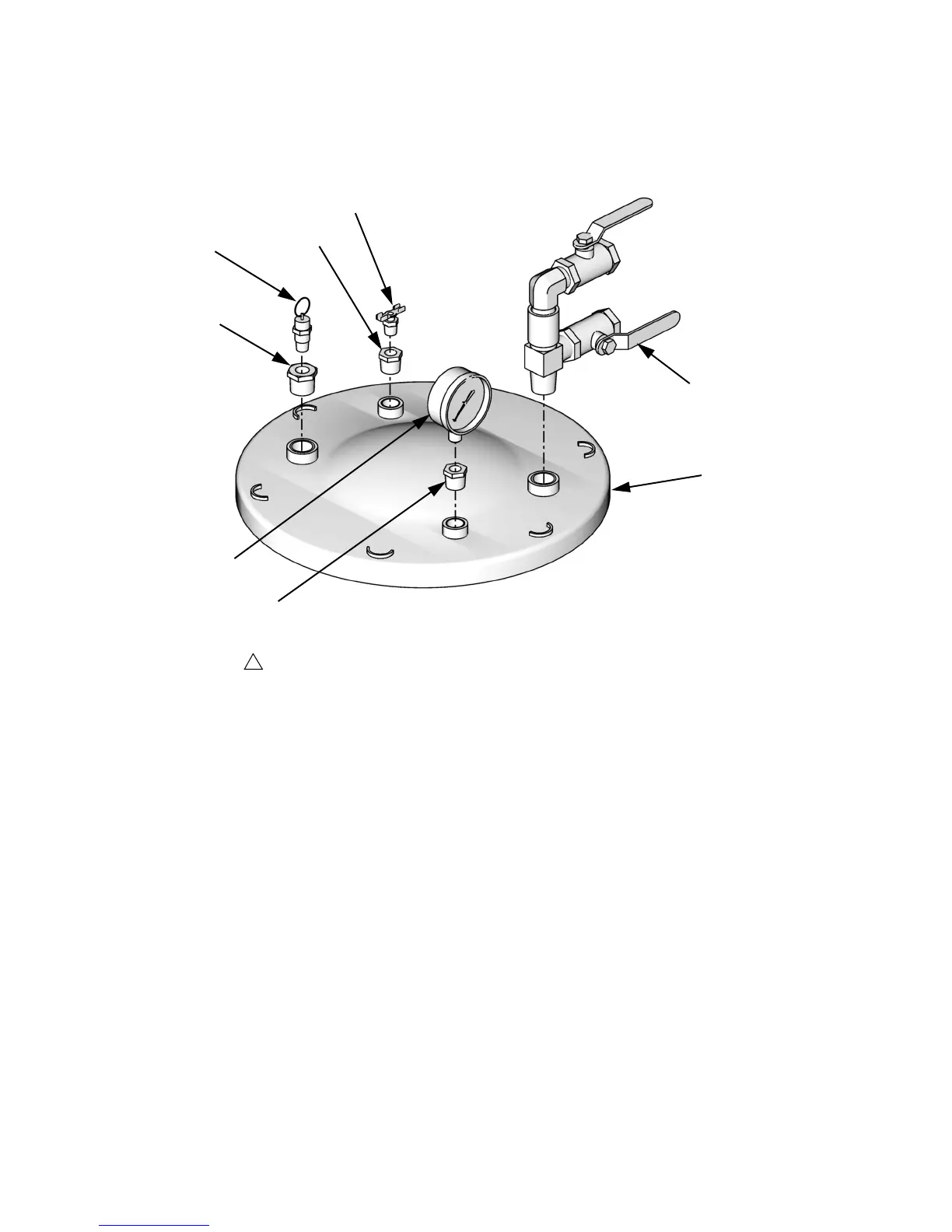

Lid Assembly Vacuum
Ref Part Description Qty
1201 187875 GAUGE, pressure, fluid 1
1202 122767 BUSHING, 1/2 npt x 1/4 npt, stainless steel 2
1203 15M861 FITTING, reducer, pipe, 3/4 x 1/4, stainless
steel
1
1204 94/0736/96 VALVE, drain cock, 1/4 npt, male, brass 1
1205 257746 FITTING, vacuum tree 1
1206 --- LID 1
1207 15R145 VALVE, relief, 1/4 npt, male, 40 psi, sil 1
1207
Apply thread sealant tape to male npt threads prior to installation.
1
ti14722a
1203
1204
1202
1201
1202
1205
1206
