Parts
64 312394ZAC
Pneumatic Agitator Motor, 255670
NOTE: This agitator assembly is no longer available.
Piece parts from the assembly can be ordered but if the
entire assembly is needed then agitator kit 24J182 must
be ordered.
--- Not available for sale.
Pneumatic Agitator Motor, 24J183
Ref Part Description Qty
1801 --- MOTOR, pneumatic, agitator,
0.5 hp, 15:1
1
1802 15Y355 NUT, agitator, 1.75-16, 7/8
shaft
1
1803 01/1487/01 GASKET, mating, agitator
housing, asme, buna
1
1804 01/1492/98 SHAFT, extension, air motor
coupler
1
1805 15Y358 HOUSING, agitator, pneumatic 1
1806 5-06-0706 SCREW, shs, 5/16-18 x 0.38,
cup point
1
1807 84/1480/11 COUPLING, alignment,
2.11 OD, disk, TPE
1
1808 84/1481/11 COUPLING, alignment,
2.11 in. OD, hub, 3/4 ID
2
1809 96/0038/99 SCREW, hex head cap, 3/8-16
x 1.00, mild steel, grade 5
2
1810 96/0046/99 WASHER, lock, split, 3/8, mild
steel
2
1811 96/0455-1/99 SCREW, socket head cap,
5/16-18 x 0.75, cup point
2
1805
1803
1802
1811
1801
1806
1811
1808
1804
1808
1807
1809
1810

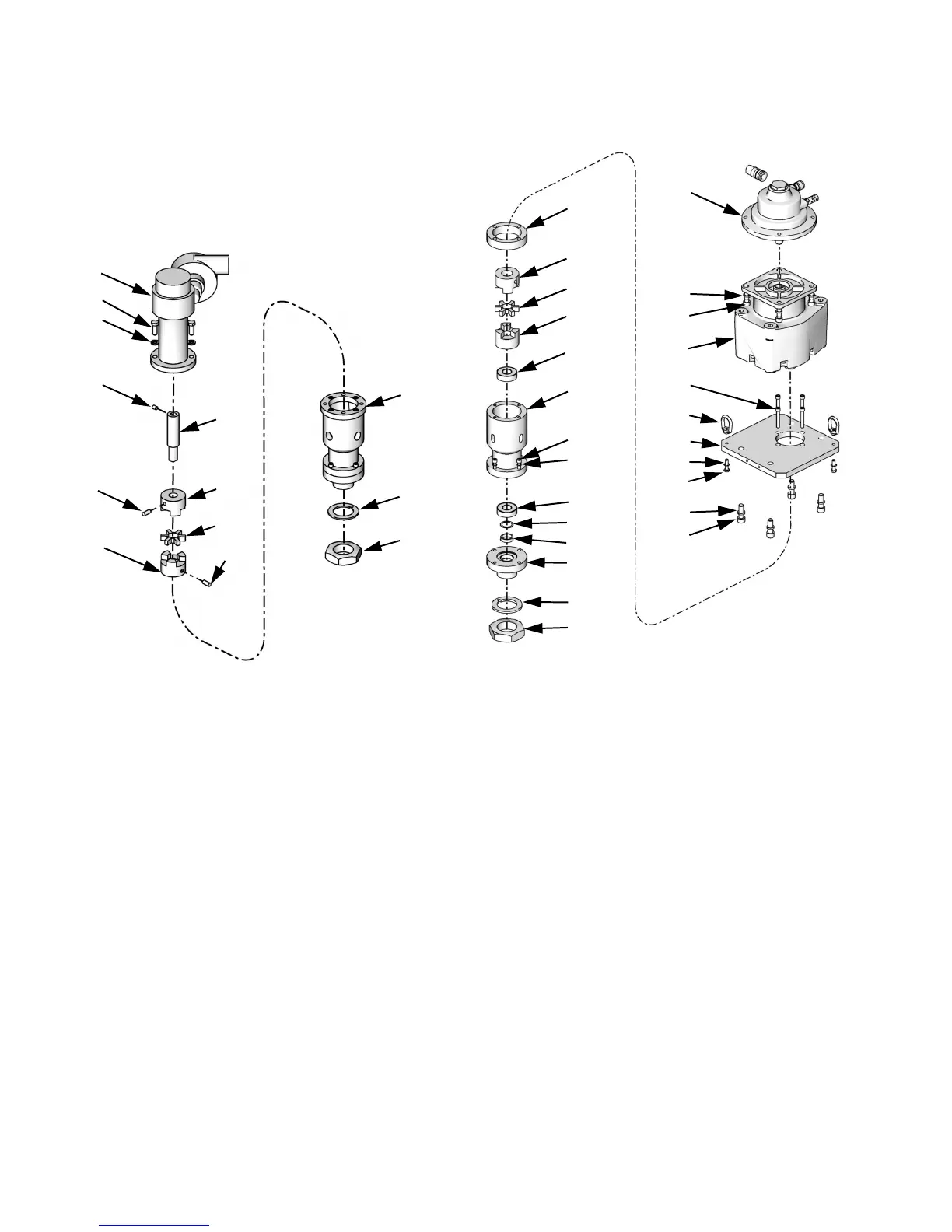

ti12466a
Ref Part Description Qty
2201 121953 GEAR REDUCER, 56c, 27.8 ratio,
2 stage
1
2202 106115 WASHER, lock, hi-collar 4
2203 C19837 SCREW, cap, socket head 4
2204 15V745 ADAPTER, plate, agitator motor 1
2205 112600 WASHER, lock, spring, hi-collar 4
2206 125012 SCREW, socket head, 7/16-14 x
1.25
4
2207 100021 SCREW, hex head cap 2
2208 122775 NUT, eye, 1/4-20, mild steel 2
2209 121963 COUPLER, agitator motor, 1 in. 1
2210 15Y358 HOUSING, upper, agitator, electric 1
2211 15V746 SPACER, agitator motor 1
2212 122760 COUPLING, alignment, disk, TPE 1
2213 122761 HOSE, alignment, hub 1
2214 101885 SCREW, cap, sch 4
2215 122774 BEARING, ball, 3/4 bore x
1-3/4 dia. x 1/2
2
2216 15Y360 SPACER, seal, shaft, agitator 1
2217 122772 SEAL, 0.875 x 1.125, ptfe 1
2218 15Y357 HOUSING, lower, agitator, electric 1
2219 15Y363 GASKET, mating, agitator housing 1
2220 15Y355 NUT, agitator, shaft, 1.75-16 1
2221 105510 WASHER, lock, spring hi-collar 4
2222 112222 SCREW, cap, sch 4
2223 100985 WASHER, lock 2
2224 24J181 MOTOR, air 1
2225 070269 SEALANT, anaerobic 1
2211
2224
2202
2203
2201
2214
2208
2204
2207
2205
2206
2223
2209
2212
2213
2215
2210
2222
2221
2215
2216
2217
2218
2219
2220
ti15109a
