309242 5
Component Identification and Function
B
E
G
A
D
C
H
F

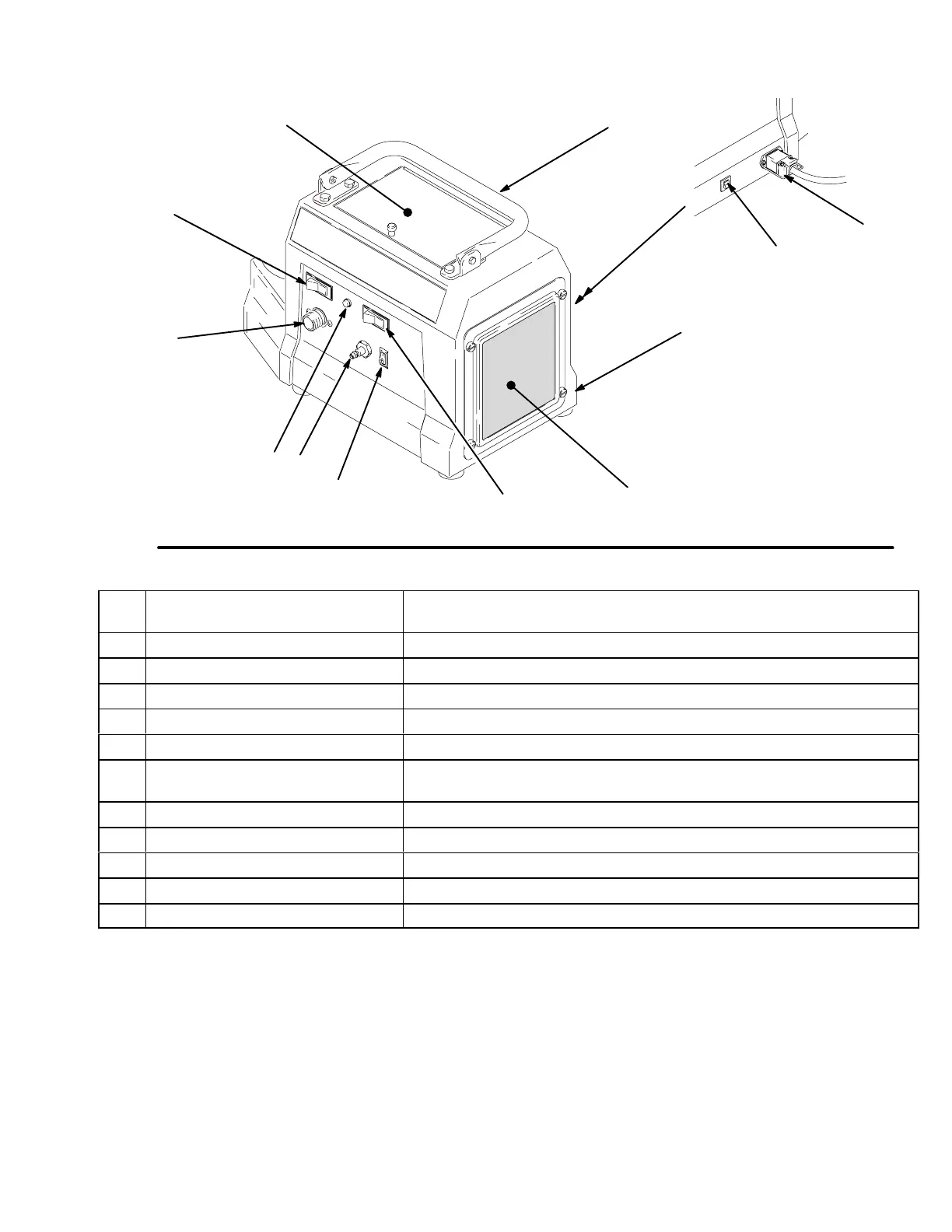

Fig. 1
J
K
L
M
TI0876
A Turbine air outlet Connection for turbine air supply to HVLP–Turbine Gun (HVLP 4900
ProCompt units include quick connector)
B Turbine power switch ON/OFF switch for sprayer turbine
C Storage compartment Provides storage for fluid set components
D Turbine handle Folds flat for minimum storage space
E Turbine cover Houses air filter and provides dual air flow to motor and turbine
F Air filters (pre-filter and main) Provide filtered air for turbine spray gun and turbine motor
G Two-speed switch Allows two-speed operation of turbine sprayer motor (used on HVLP
4900 ProCompt units)
H Air filter indicator light Indicates air filter performance and maintenance
J Connector and power cord Provides power for turbine sprayer (power cord provided with turbine)
K Resettable circuit breaker Provides protection for turbine motor
L Compressor air outlet Connection for compressor air supply to 2–quart remote pressure pot
M Compressor power switch On/Off switch for compressor
