EasyKey Display and Keypad
312776K 21
AC Power Switch
Turns system AC power on or off.
I/S Power
Power circuit to Fluid Station.
Audible Alarm
Alerts the user when an alarm occurs. Available settings
for selecting which alarms will cause an audible alarm
are explained in Configure Screen 1, page 31.
Clear the audible alarm by pressing the Alarm Reset
key.
Even after the Alarm Reset key is pressed, the Potlife
Exceeded alarm message will remain displayed until a
sufficient amount of mixed material has been dispensed
to ensure that the expired material has been ejected.
Graco Web Interface Port
Used to communicate from a PC to:
Upgrade software
View software version
Download
• Job and alarm logs
• Material usage report
• Setup values (can also upload)
Clear job, alarm, and material usage reports
Upload a custom language to view on
screen
Restore factory defaults
Restore setup password
See manual 313386 for more information.
Ethernet Connection
You can access data on an office or industrial network
through the internet with the proper configuration. See
manual 313386 for more information.
F

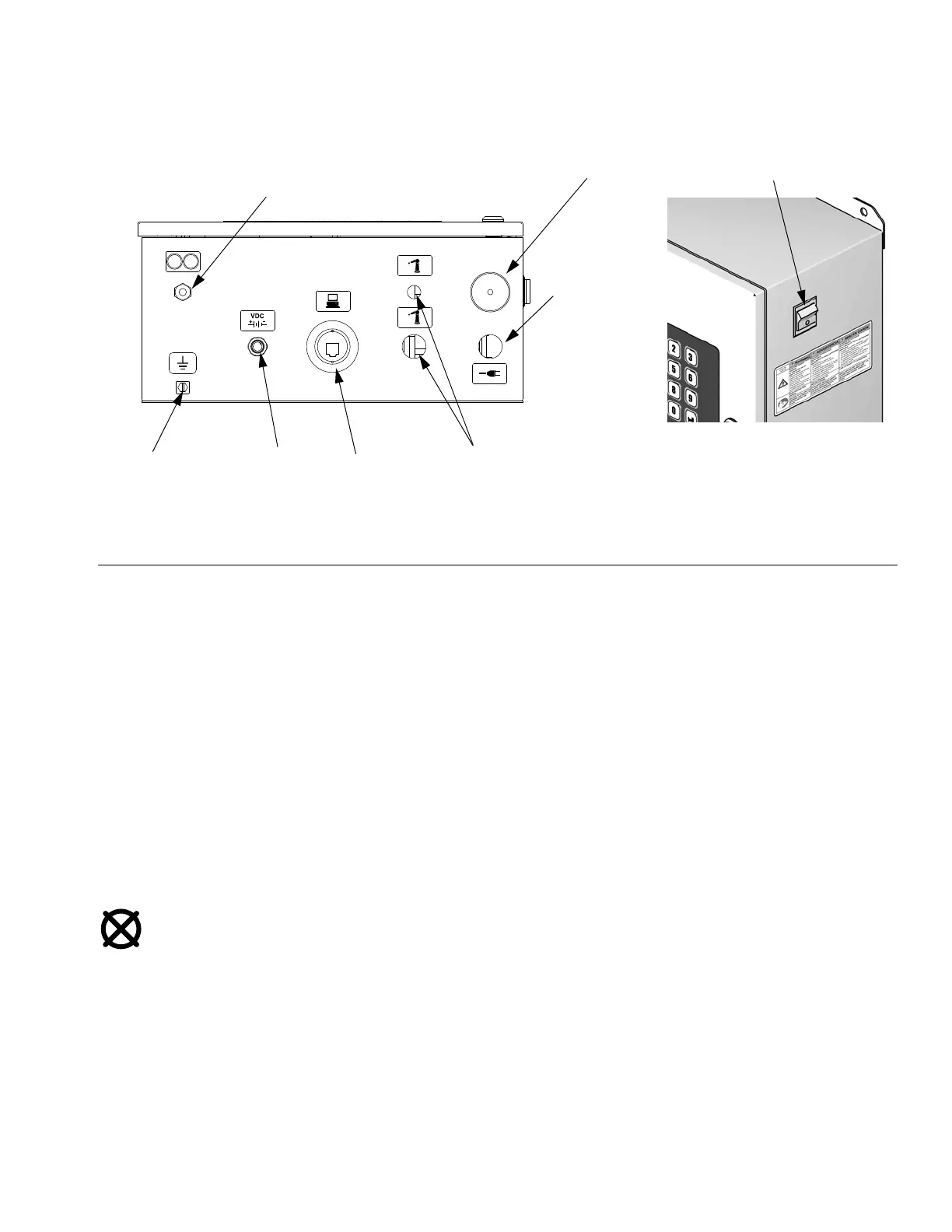

IG. 6. EasyKey Connections and AC Power Switch
AC
Power
Graco Web
Interface
Audible AlarmFiber Optic Strain
Relief Port
I/S Power Discrete I/O Cable
Connector Ports
Ground Screw
Main Power
Access Port
TI12638a TI12657a
