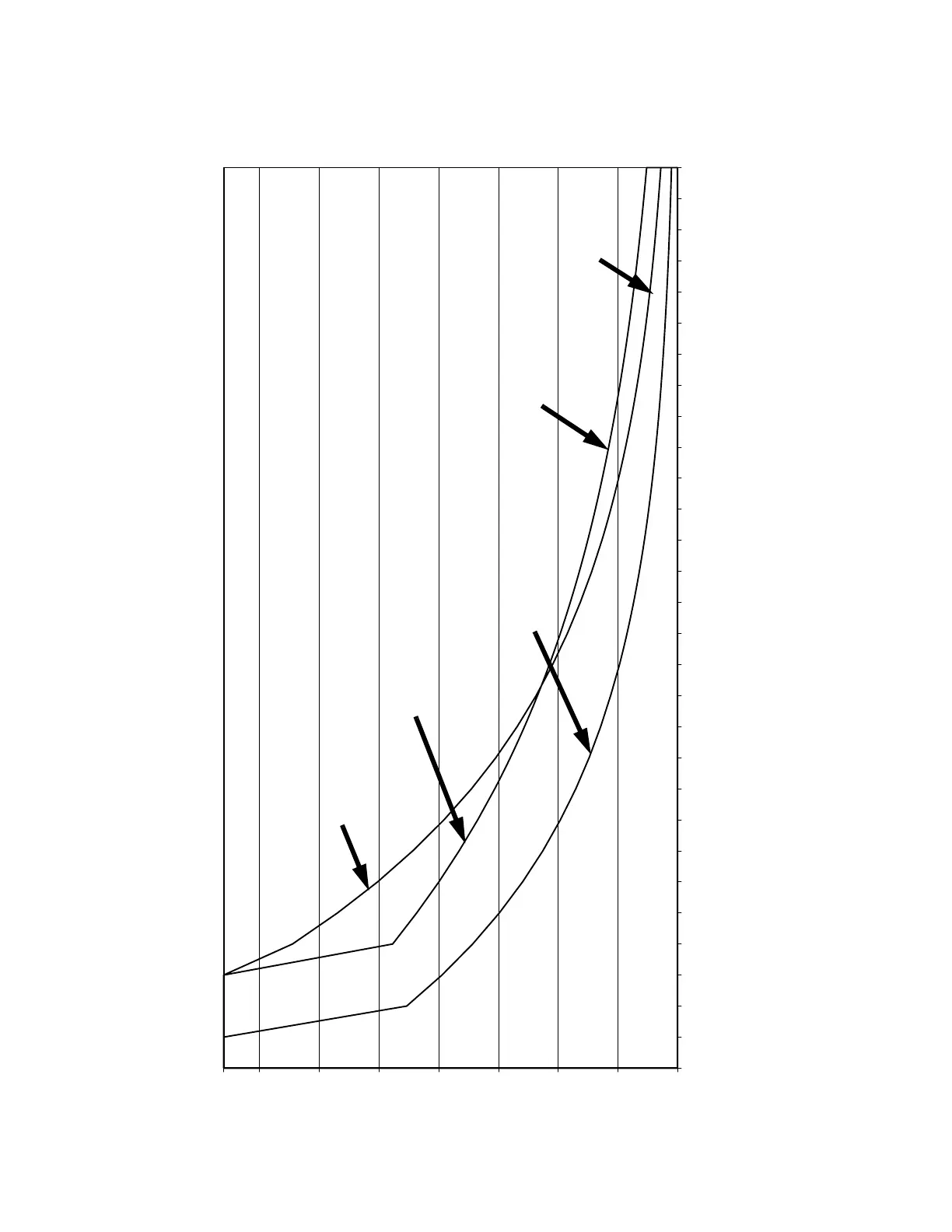

Meter Performance Data (G3000 on A, Coriolis on B)
312776K 99
Meter Performance Data (G3000 on A, Coriolis on B)
0
500
1000
1500
2000
2500
3000
3500
3800
1:1 2:1 3:1 4:1 5:1 6:1 7:1 8:1 9:1 10:1 11:1 12:1 13:1 14:1 15:1 16:1 17:1 18:1 19:1 20:1 21:1 22:1 23:1 24:1 25:1 26:1 27:1 28:1 29:1 30:1
Ratio
Flow Rate (cc/min)
50cc Dose
25cc Dose
10cc Dose
NOTE: Maximum system flow is 3800 cc/min.
Test Conditions
Fluid: Hydraulic Oil
Viscosity: 65.7 centipoise
Ratio Tolerance: 5%
Valve Setting: 1.25 Turns Open (standard setting)
A and B Feed Pressure: 300 psig
50cc Dose
25cc Dose
