Repair
Replace Advanced Display Module
(ADM)

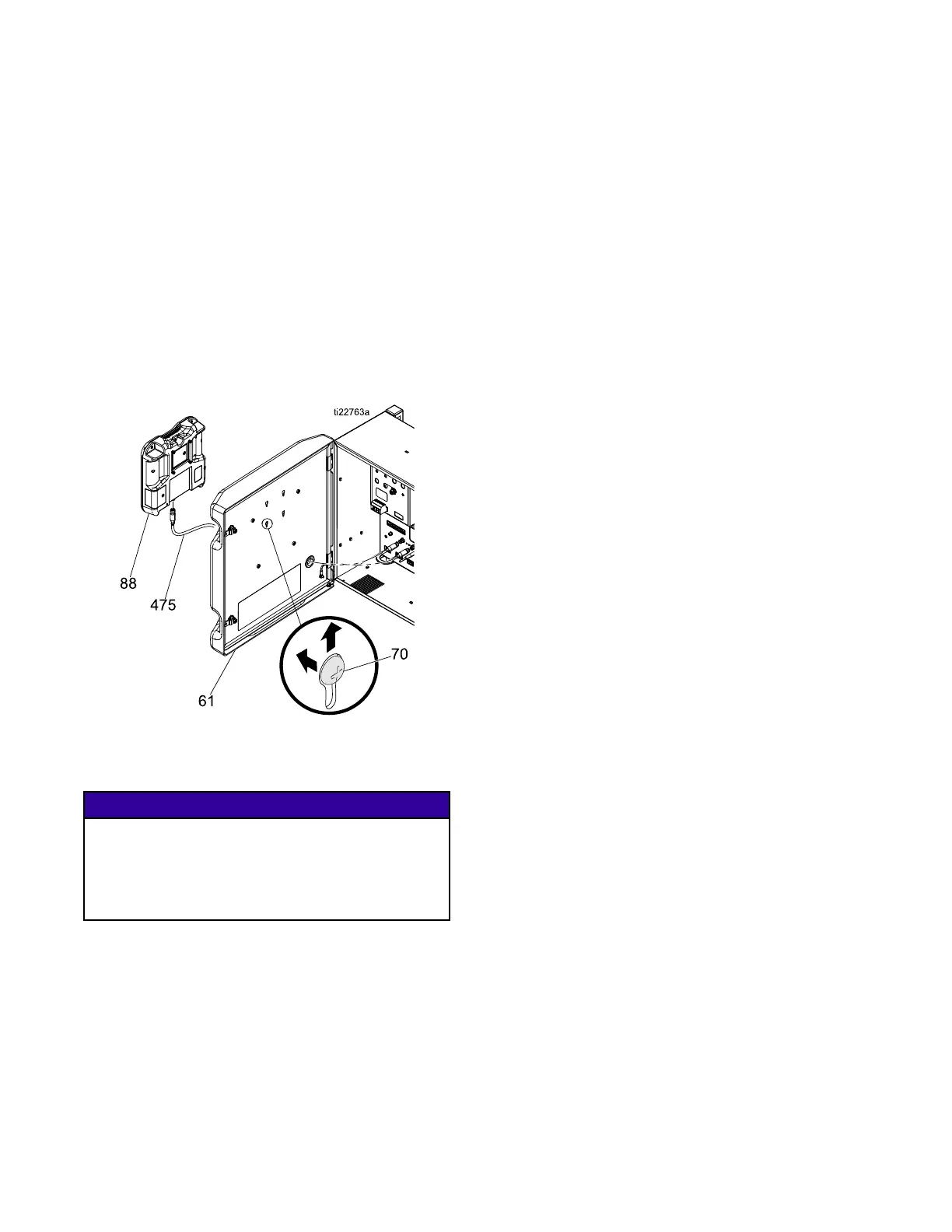

1. Loosen four screws (70) on inside of electrical
enclosure door (61). Lift up and pull out to
remove ADM (88).
2. Disconnect CAN cable (475).
3. Inspect ADM (88) for damage. Replace if
necessary.
4. Update software by inserting an upgrade token
into ADM and cycling system power. Wait until
the update is complete before removing the
token and restarting the system.
Figure 24
Software Update Procedure
NOTI
CE
Repair kit GCA modules are shipped
pre-programmed and with upgrade token (part
number 17E206). If software version upgrade is
necessary, follow the procedure in the manual
provided.
80 333024N
