Graco Reactor 2 E-XP2 User Manual

Parts

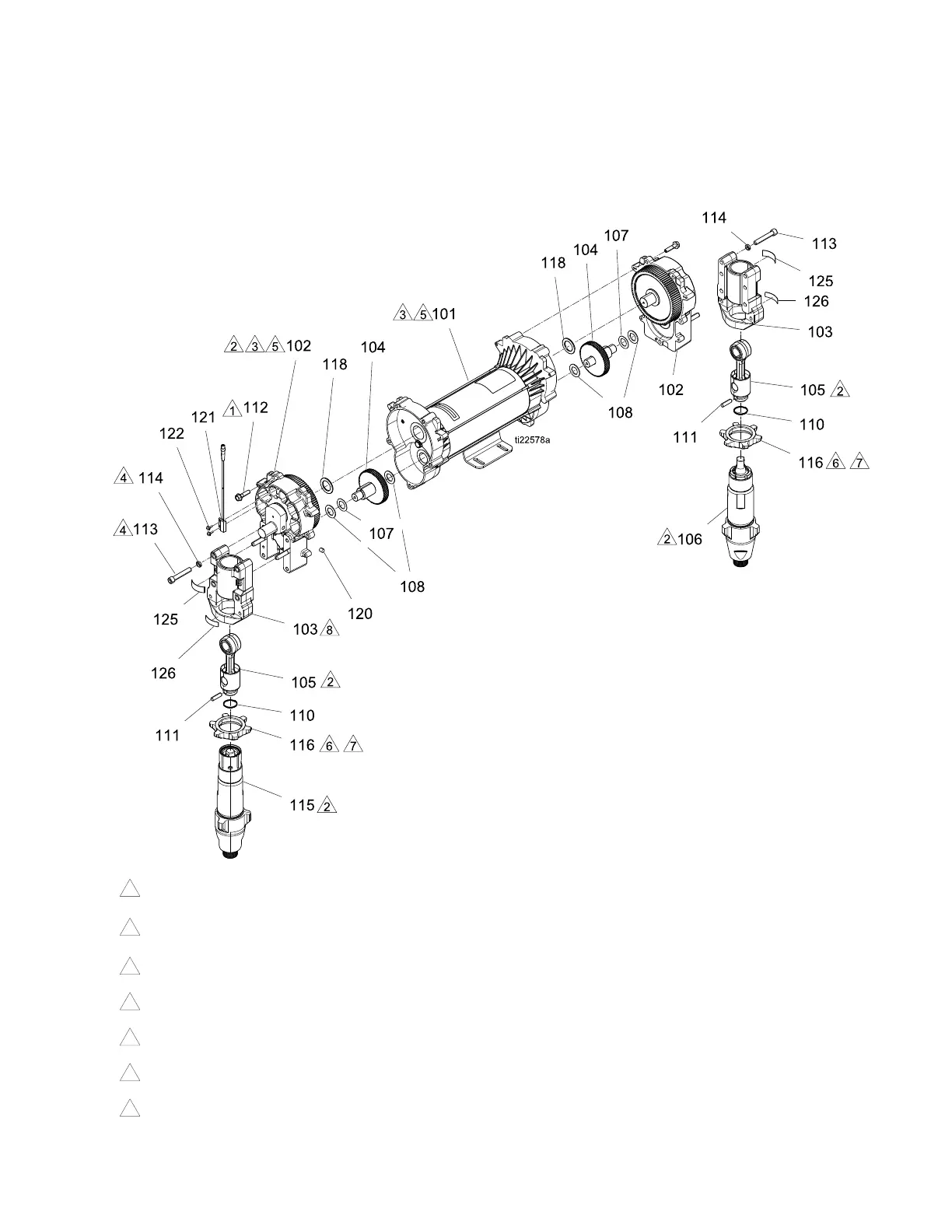

Proportioner Module
24V150, Module for E-30
24V151, Module for E-XP2
1
Torque to 190–210 in-lb (21–24 N•m).
2
Lubricate threads with ISO oil or grease. Ass
emble pump cylinders flush to one full thread under-flush of
housing surface.
3
Apply grease to all gear teeth proportionally, motor pinion and drive housing.
4
Torque to 20–30 ft-lb (27–40.6 N•m).
5
Crankshaft must be in line with crankshaft at other end of motor.
6
Torque to 70–80 ft-lb (95–108 N•m).
7
Flat side faces up.
333024N 89
