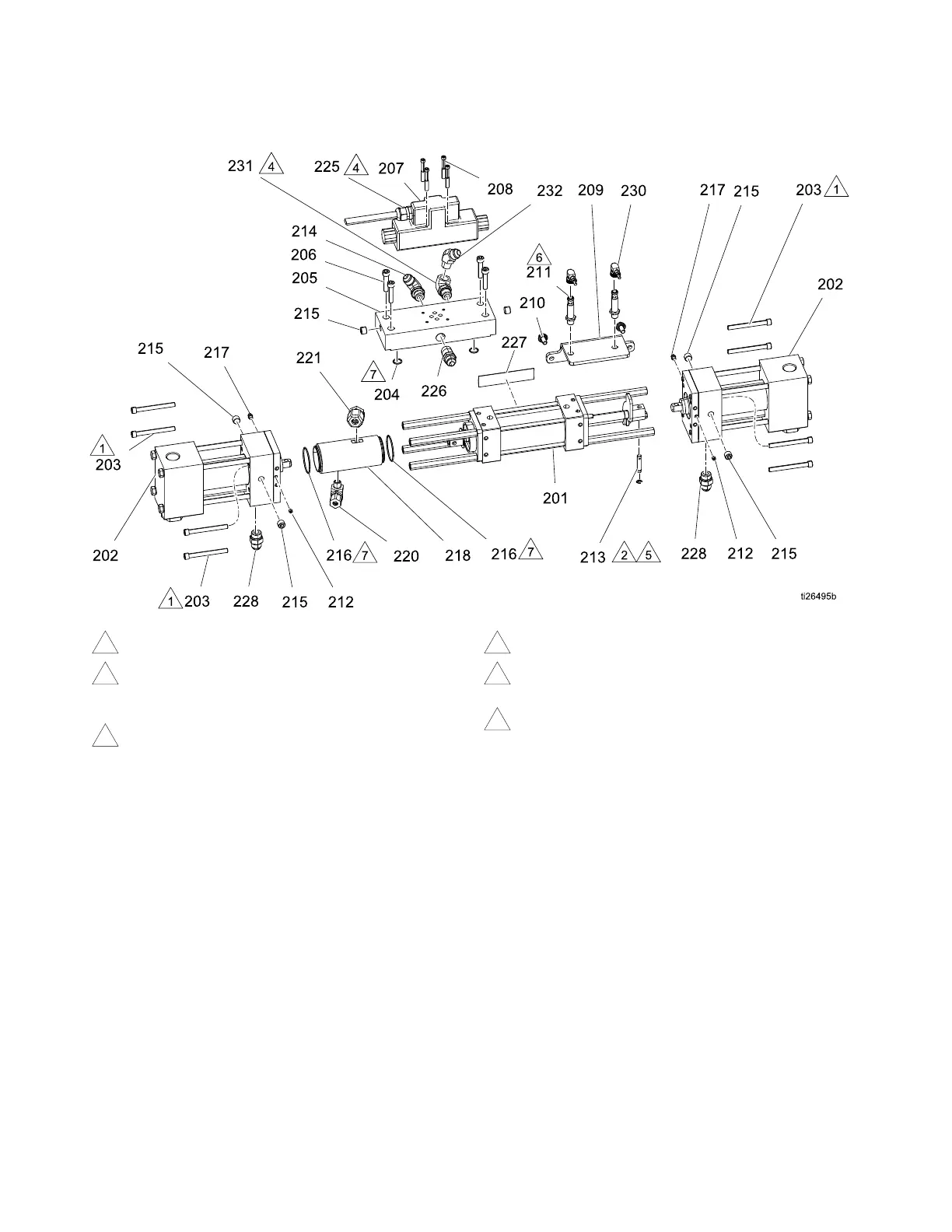

Graco Reactor 2 H-30 - Proportioner Assembly Parts

Parts
Proportioner Proportioner
Proportioner
Assembly Assembly
Assembly
Parts Parts
Parts
1
Torqueto200in.-lbs(22.6N●m).
2
Pin(213)tobeclockedhorizontalasshown.
3.
Applysstpipesealanttoallnon-swivelingpipe
threads.
4
Removecoverfromdirectionalvalve(207)
andattachsolenoidharnesswires(225).See
ElectricalSchematics,page94.
5
Fullyseatpin(213)withahammerandpunch.
6
Threadinproximityswitch(211)allthewayuntil
itcontactstheclockingplate,thenbackoffa
1/4–1/2turn.
7
Applygreasetoo-rings(204,216)before
assembly.
80 334946C
