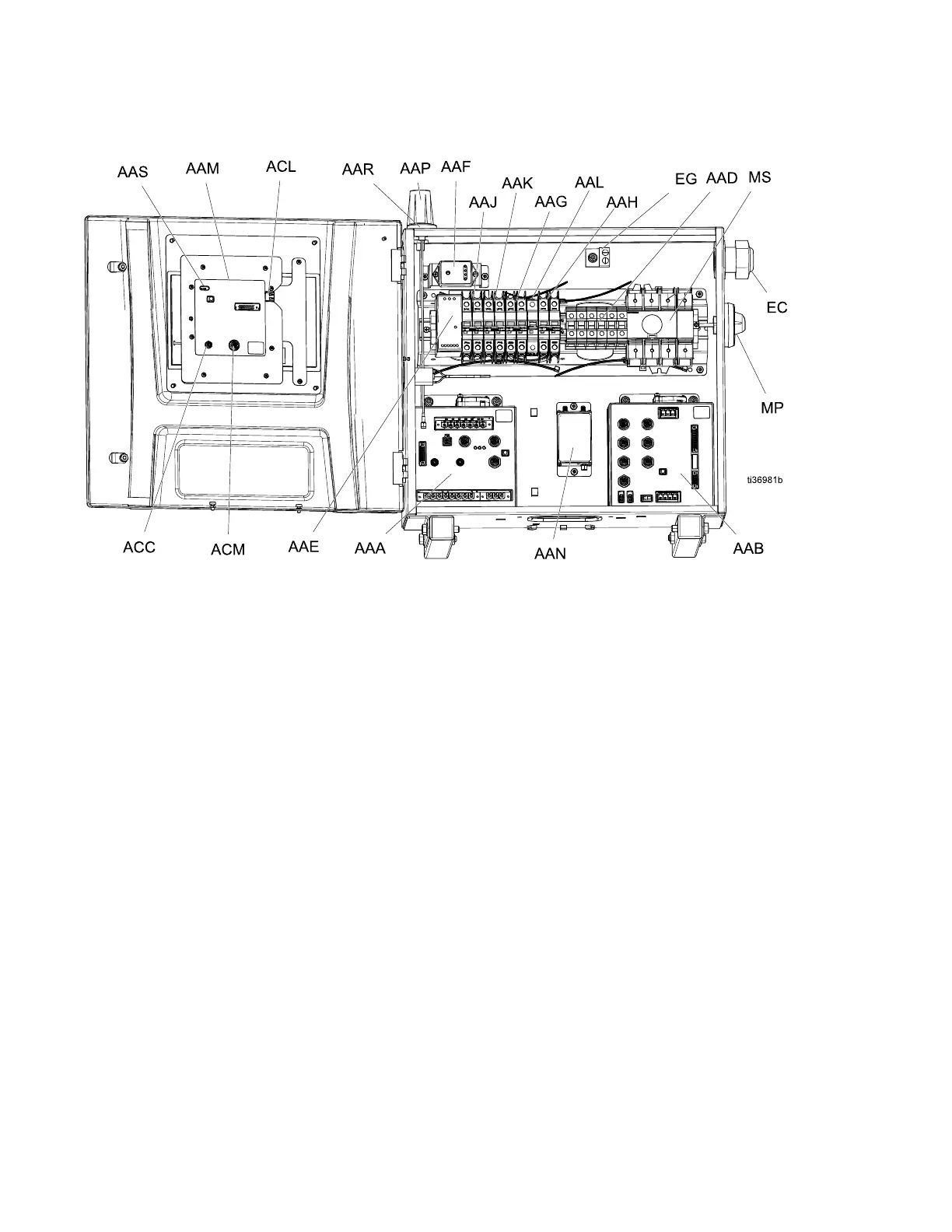

ComponentIdentication
Electrical Electrical
Electrical
Enclosure Enclosure
Enclosure
AAA
TemperatureControlModule(TCM)
AAB
MotorControlModule(MCM)
AAD
WiringTerminalBlocks
AAE
24VPowerSupply
AAF
SurgeProtector
AAG
TransformerBreaker
AAH
MotorBreaker
AAJ
A-SideHeatBreaker
AAK
B-SideHeatBreaker
AAL
HoseBreaker
AAM
AdvanceDisplayModule(ADM)
AAN*
ReactorConnectAppModule
AAP*
CellularAntenna
AAR*
GPSAntenna
AAS
ADMLEDStatusLights
ACC
ReactorConnectModuleCable
Connection
ACLADMUSBPort
ACM
ADMCANCableConnection
EC
IncomingPowerCordStrainRelief
EG
IncomingPowerGroundTerminal
MP
MainPowerDisconnectKnob
MS
MainPowerDisconnectSwitch
*Notincludedonallmodels.
18 3A8500A
