Location Location
Location
Foreaseofoperationandmaintenance,ensure
thereisadequatelightingintheareatheReactor
isinstalledforvisibilityandsafety.
Foreaseofoperationandmaintenance,ensure
thereisadequatespacetothefrontandsides
oftheReactortoaccessvalvesorusewrenches
andtools.
Tools Tools
Tools
Required Required
Required
for for
for
Installation Installation
Installation
9/16in.socketorwrench
Assemble Assemble
Assemble
the the
the
Proportioner Proportioner
Proportioner
Reactorproportionersarriveinashipping
conguration.Beforemountingthesystem,
assembletheproportionerintheupright
position.

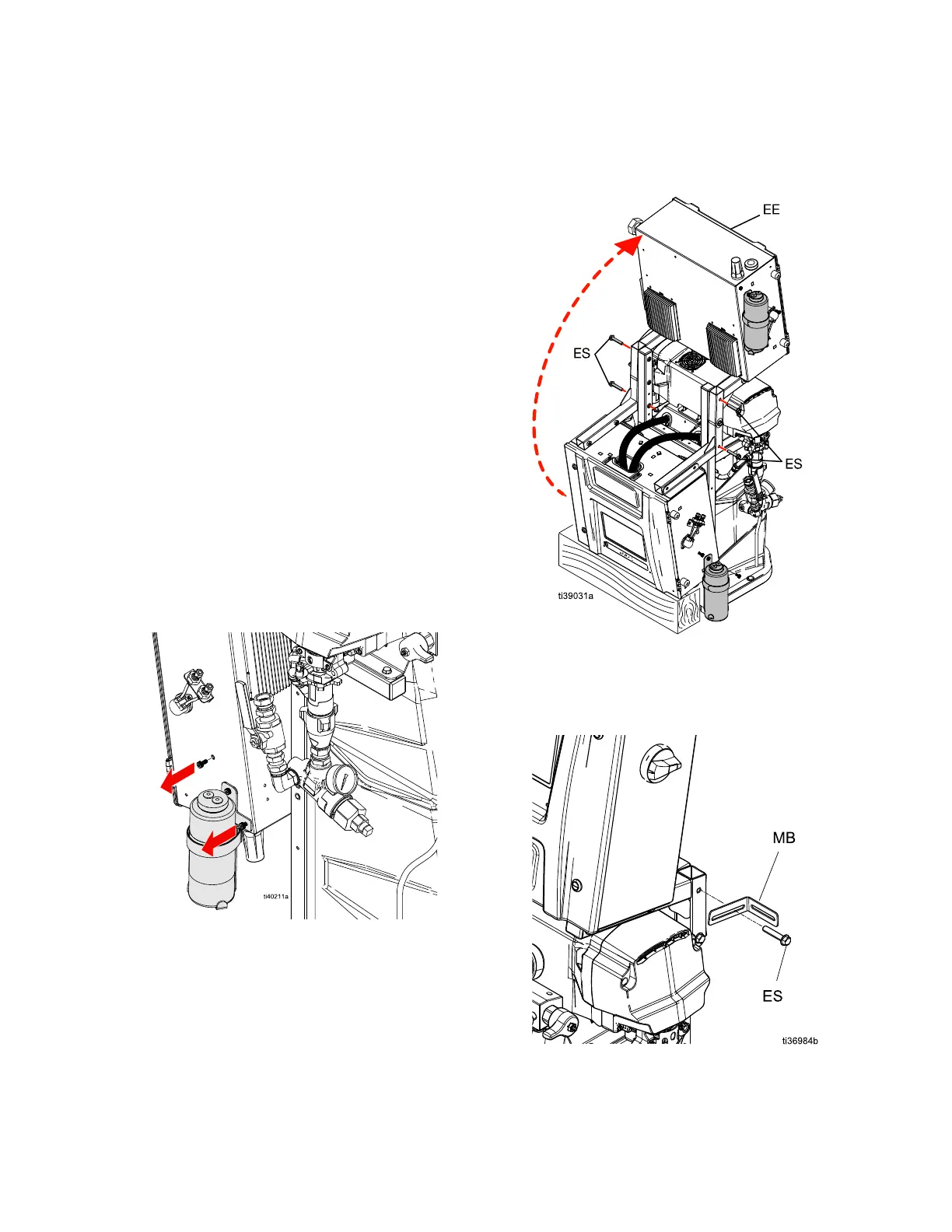

1.RemovetheTSLbottlemountingbracket
screws.Ensurethebracketcanswivelfreely.
2.Removetheenclosurepivotarmscrews(ES).
3.Lifttheelectricalenclosure(EE).Ensurethe
TSLbottleremainsuprightasyouliftthe
electricalenclosure.
ES
ES
EE
4.Placetheleftandrightwallmounting
brackets(MB)asshowninFig. Fig.
Fig.
4. 4.
4.
Insertthe
enclosurepivotarmscrews(ES)through
thebrackets(MB)andtightentosecurethe
enclosure.
Figure4InstallWallMountingBrackets
