Graco Reactor E-10 User Manual

Parts

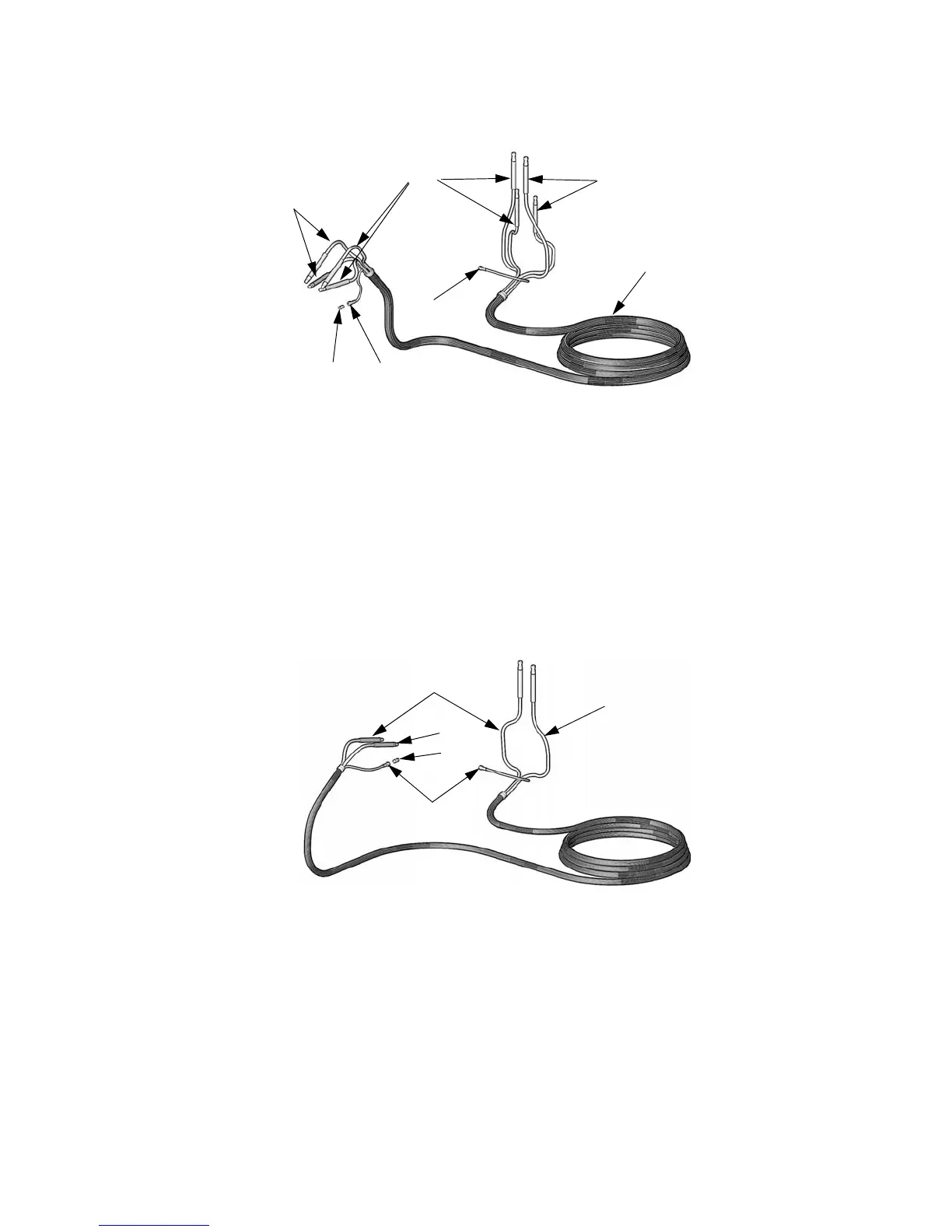

311075R 63
Part No. 249499, Insulated Hose Bundle with recirculation lines
Part No. 249633, Non-insulated Hose Bundle without recirculation lines
TI6991a
302 (Ref)
302
303 (Ref)
305 303
304
301
Ref. Part Description Qty
301 249508 HOSE, fluid (component A),
moisture guard; 1/4 in. (6 mm)
ID; no. 5 JIC fittings (mxf); 35 ft
(10.7 m)
2
302 249509 HOSE, fluid (component B); 1/4
in. (6 mm) ID; no. 6 JIC fittings
(mxf); 35 ft (10.7 m)
2
303 15G342 HOSE, air; 1/4 in. (6 mm) ID; 1/4
npsm (fbe); 35 ft (10.7 m)
1
304 buy
locally
TUBE, foam, insulated; 1-3/8 in.
(35 mm) ID; 31 ft (9.5 m)
1
305 156971 NIPPLE; 1/4 npt; for joining air
line to another hose bundle
1
Ref. Part Description Qty
302 (Ref)
302
303
301
TI6992a
305
Ref. Part Description Qty
301 249508 HOSE, fluid (component A),
moisture guard; 1/4 in. (6 mm)
ID; no. 5 JIC fittings (mxf); 35 ft
(10.7 m)
1
302 249509 HOSE, fluid (component B); 1/4
in. (6 mm) ID; no. 6 JIC fittings
(mxf); 35 ft (10.7 m)
1
303 15G342 HOSE, air; 1/4 in. (6 mm) ID; 1/4
npsm (fbe); 35 ft (10.7 m)
1
305 156971 NIPPLE; 1/4 npt; for joining air
line to another hose bundle
1
Ref. Part Description Qty
