Graco Reactor E-10 User Manual

Parts
64 311075R

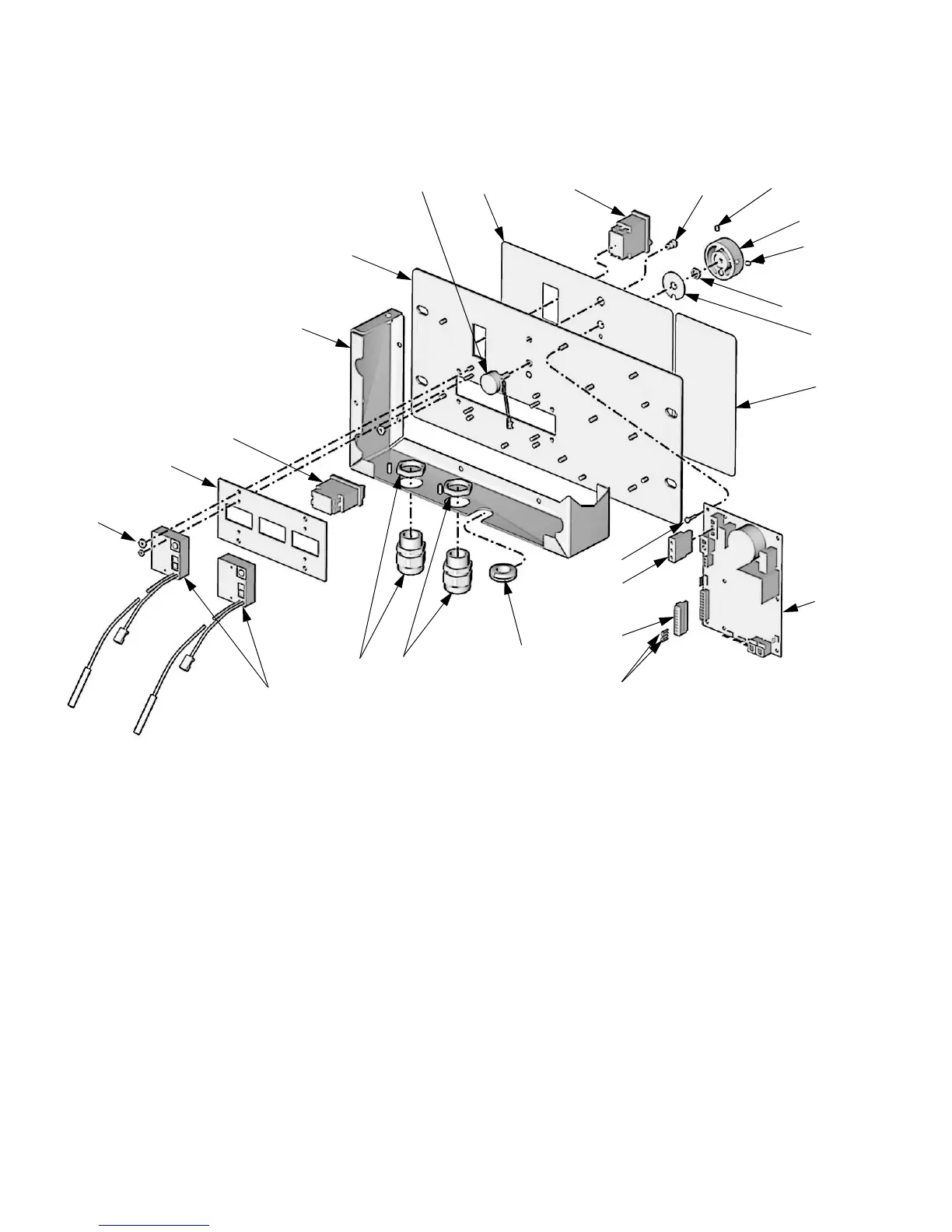

Part No. 24L004, 120 V Heated Display
Part No. 24L005, 240 V Heated Display
405 416a
416
416a
415
417
406
407
408
412
411
410
409
403
421
401
404 402
410
TI6979a
424
402
413
414
404 (Ref)
Ref. Part Description Qty
401 15F984 PLATE 1
402 24K983 SWITCH, motor or heater
power, with circuit breaker
2
403 15G386 MODULE, display, temperature;
includes (1) item 402 and (2)
item 424
1
404 24L002 POTENTIOMETER 1
405 119930 INDICATOR, status, LED 1
406 24G886 BOARD, control; 120 V units
only
1
24G887 BOARD, control; 240 V units
only
1
407 15G230 CABLE, harness 1
408 107156 SCREW, machine, pan hd 7
409 113505 NUT, keps, hex hd 10
410 119898 BULKHEAD FITTING, cable 2
411 101765 GROMMET 1
412 116773 CONNECTOR, plug 1
413 15C866 WIRE, jumper 2
414 15G279 LABEL, display 1
415 15G053 PLATE, detent 1
416 24L001 KNOB, function; includes item
416a
1
416a 101118 . SCREW, set; no. 10 x 1/4 in. (6
mm)
2
417 15G454 LABEL, startup, heated 1
421 15G384 ENCLOSURE 1
424 24K981 DISPLAY, temperature, with
sensor
2
425 DUAL TERMINAL; not shown 2
Ref. Part Description Qty
