Graco Reactor E-10 User Manual

Parts
311075R 65

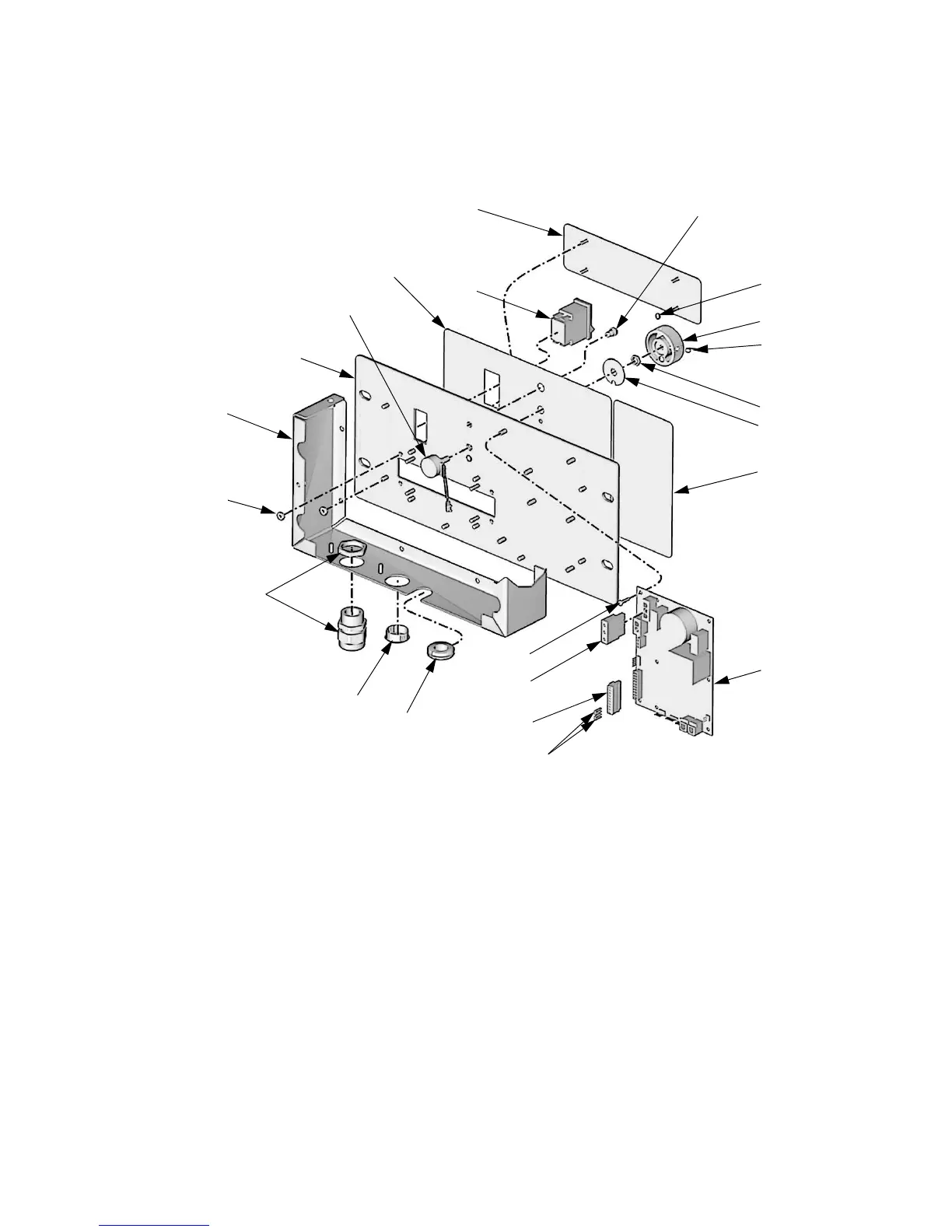

Part No. 249537, 120 V Nonheated Display
Part No. 249538, 240 V Nonheated Display
403 405
416a
416
416a
415
417
406
412
407
408
411
423
410
409
421
401
404
402
TI6983a
413
414
404 (Ref)
Ref. Part Description Qty
401 15F984 PLATE 1
402 24K983 SWITCH, motor power, with cir-
cuit breaker
1
403 15G408 COVER, display 1
404 24L002 POTENTIOMETER 1
405 119930 INDICATOR, status, LED 1
406 24G886 BOARD, control; 120 V units
only
1
24G887 BOARD, control; 240 V units
only
1
407 15G230 CABLE, harness 1
408 107156 SCREW, machine, pan hd 7
409 113505 NUT, keps, hex hd 10
410 119897 BULKHEAD FITTING, cable 1
411 101765 GROMMET 1
412 116773 CONNECTOR, plug 1
413 WIRE, jumper 2
414 15G279 LABEL, display 1
415 15G053 PLATE, detent 1
416 24L001 KNOB, function; includes item
416a
1
416a 101118 . SCREW, set; no. 10 x 1/4 in. (6
mm)
2
417 15G281 LABEL, startup, unheated 1
421 15G384 ENCLOSURE 1
423 PLUG 1
Ref. Part Description Qty
